Group Four doesn’t take a “one fit for all” approach to its Single Point Load Cell solutions. Other OEMs will not customize to the extent Group Four can to meet your specific needs. Whether it is customizing the body, sealing options (simple or elegant), material selection, or cable configuration, our engineers will design product to meet your form, fit and function needs. We understand in many cases your application will present very difficult operating conditions. One of our Single Point Load Cell designs is used in a weigh feeder application in very harsh operating conditions but also where space is very limited. This customer calls Group Four’s Single Point Load Cells “Battleship Tough”. We also employ a triple beam technology, which provides accurate and consistent off-center load readings. That is, Group Four Single Point Load Cells yield the same reading for varying load placement. We understand the systems approach to your measurement needs. We look beyond the load cell to help the customer find the best total solution. We can do this because of our industry-leading engineering know-how dating back to the late 1950’s. No matter your problem, find the solution with Group Four.
Products
View as :
BSSPM (4018) Anodized Aluminum Single Point Load Cell IP67
Description >
The BSSPM is low capacity aluminum single point load cell. Ideal for use in bench scales, conveyor scales, filling and packaging machines.Capacity: 2, 5, 10kg
Applications: Bench Scales, Retail Scales, Checkweighers, Filling & Packaging Machines, Conveyor Scales
CB17 (4054) Anodized Aluminum Single Point Load Cell IP67
Description >
Small size and light capacities make this sensor perfect for laboratory testing and small bench scales. This sensor is offered in capacity ranges from 600 gram up to 3,000 grams. It is only 2.76 inches long and less than 1 inch tall so fitting it into small spaces is no problem.Applications: Bench Scales, Counting Scales & Grocery Scales. General Purpose Force Measurement.
FLS (4041) Stainless Steel Single Point Load Cell IP67
Description >
Precise and available with two low capacities. Single point load cell made of stainless steel.Capacity: 25kg, 250kg
Output: 1.0±.0002 mV/V
Applications: Bench scales, Food processing systems.
FSU Anodized Aluminum Single Point Load Cell IP67
Description >
The FSU is a low capacity low form factor single point load cell useful in medical scales, postal scales and industrial applications.Capacity: .1, 2, 5kg
Applications: Compact scales, special application in medical, retail & counting scales, postal scales
GHPS (4046) Stainless Steel Hermetic Single Point Load Cell IP68
Description >
The 4046 is a stainless steel single point load cell with a true hermetic seal. Welded covers and a hermetic header make this cell impenetrable by water and moisture. Capacities offered are from 25lb. to 200 lb. If you are washing down your scales every day, this load cell is the right one for your bench scale, packaging machine, and/or filling machine.Applications: Bench and Floor Scales, Conveyor Scales, Check Weighers, Packaging Machines and Industrial Process Control.
HBSP (4039) Stainless Steel Single Point Load Cell IP67
Description >
Stainless steel single point load cell available with low capacities. Exists with reasonable price.
Capacity: 15kg – 150kg
Output: 2.0±.2 mV/V
Applications: Retail scales, bench scales, conveyor scales, filling and packaging machines
HPS (4067) Stainless Steel Hermetic Single Point Load Cell IP67
Description >
The type 4067 is a stainless steel single point load cell with complete hermetic sealing.Capacity: 6kg
Output: 2.0±.2 mV/V
Applications: Bench and floor scales, conveyor scales, check weighers, packaging machines and industrial process control.
JSP (4021) Anodized Aluminum Single Point Load Cell IP67
Description >
Mid capacity accurate single point load cell available with cost effective price. Replaces A&D load cells. Material is Aluminum and approved by CE and RoHS.Capacity: 30kg – 150kg
Output: 1.0±10% mV/V
Applications: Bench scales, packaging & filling machines.
NLC (4044) Anodized Aluminum Single Point Load Cell IP67
Description >
The type NLC is an aluminum single point load cell ideal for use in Isheda packaging machines.Applications: Packaging machines.
SP1 (4001) Anodized Aluminum Single Point Load Cell IP67
Description >
Low capacity, accurate single point Aluminum load cell with cost effective price.Capacity: .1kg to 5kg
Output: 1.0±20% mV/V
Applications: Jewelers scale and small filling machines, laboratory testing, light capacity bench scales.
SP10 (4101) Stainless Steel Single Point Load Cell IP67
Description >
This special load cell is offered in 30 LBS capacity. Designed for fast response time makes it perfect for precision filling and checkweighing applications. Integral overload stop offers positive overload protection in both tension and compression directions.
Capacity 30lb
Applications: Checkweighing, High Precision Filling, Packaging
SP12 (4079) Anodized Aluminum Single Point Load Cell IP67
Description >
The 4079 series load cell with its high response time and integral overload stop makes it ideal for use in packaging and filling machines.Applications: Ideal for use in packaging and bag filling machines.
SP14 (4027) Anodized Aluminum Single Point Load Cell IP67
Description >
Single point load cell. Precise and available with low capacities. Made of Aluminum.Capacity: 10kg – 100kg
Output: 2.0±10% mV/V
Applications: High precision filling, packaging and check weighing machines.
SP14 (4082) Stainless Steel Single Point Load Cell IP67
Description >
The 4082 series is designed for light and medium applications and is designed specifically to give very fast response time. The high natural frequency makes it perfect for precision filling and check weighing applications. The capacities offered are from 10 kg up to 100 kg. The IP67 moisture rating makes it suitable for a semi-wet environment. The bi-directional, integral overload stop gives this load cell positive overload protection in both tension and compression protecting it from operator abuse.
Capacity: 10, 20, 50, 100 kgs
Applications: High precision filling, packaging, check weighing machines

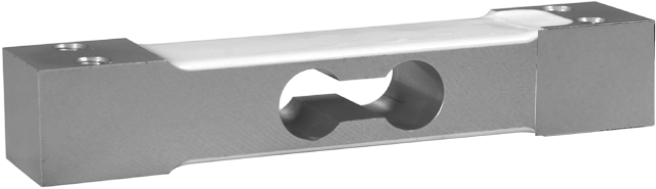

SP2 (4002) Anodized Aluminum Single Point Load Cell IP67
Description >
Aluminum single point load cell ideal for use in small bench scales, medical scales, light capacity filling machines and packaging machines.Applications: Retail Scales, Bench Scales ,Baby Scales, Packaging and Filling Machines.
SP2SS (4066) Stainless Steel Single Point Load Cell IP67
Description >
With the same mounting hole spacing as our 4002 series, this load cell could be used as a stainless steel alternative to the 4002. It is designed for wet environments commonly found in food handling applications such as retail scales, portioning scales, packaging machines, and filling machines. It is also commonly used in various medical and veterinary scale applications.Capacity: 15kg – 100kg
Applications: Retail scales, bench scales ,baby scales, packaging and filling machines.

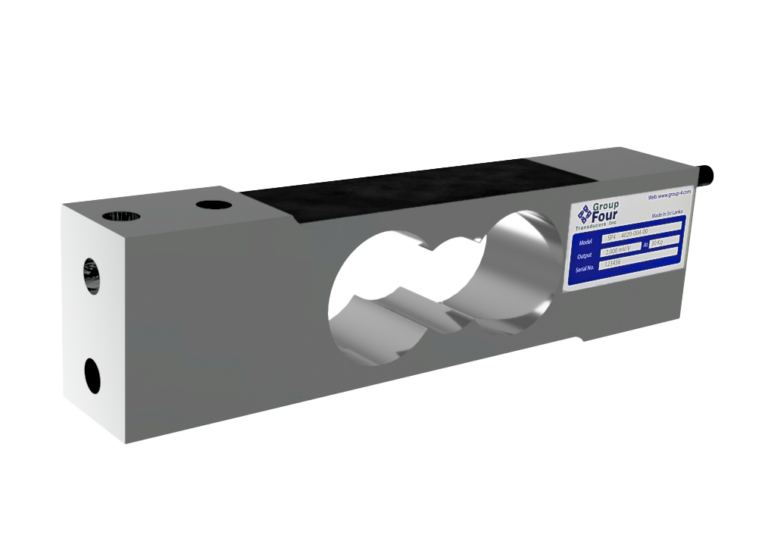

SP4 (4018) Anodized Aluminum Single Point Load Cell IP67
Description >
The 4018 has a broad range of capacities from 1kg to 100 kg making it ideal for a large variety of applications.Applications: Retail Scales, Bench Scales, Check Weighing Scales and Portion Control Scales.
SP4 (4104) Stainless Steel Single Point Load Cell IP67
Description >
The SP4 (4104) is a single point SS load cell. Its application ranges from force measurement, weight measurement, platform scales, batching plants and industrial applications.
Capacity: 5, 10,15,20,30,50,75, & 100 Kgs
Applications: Force Measurement, Platform Scales, Retail scales, Bench scales, Batching plants, Industrial applications, Weighbridges
SP46H (4083) Stainless Steel Single Point Load Cell IP69
Description >
The type 4083 is a stainless steel hermetically sealed single point load cell, ideal for large bench scales, conveyor scales, filling machines, weigh feeders and for use in heavy wash down applications.Applications: Bench scales, floor scales, conveyor scales, large filling machines, weigh feeders and medical scales.
SP46NP (4075) Nickle Plated Steel Single Point Load Cell IP67
Description >
This “brick” cell is the workhorse of the single points. It features capacities from 50 kg up to 500kg and can handle a maximum platform size of 15.75″ x 15.75″. Constructed from alloy steel, this cell is more durable than the aluminum version and designed to take industrial abuse. Very commonly found in large bench scales, and medium sized weigh feeders.Capacity: 50kg – 500kg
Applications: Bench scales, floor scales, conveyor scales, large filling machines, weigh feeders and medical scales.
SP4NP (4073) Nickle Plated Steel Single Point Load Cell IP67
Description >
The type SP4-NP is a steel single point load cell.Capacity: 10kg – 100kg
Output: 2.0±.002 mV/V
Applications: Retail scales, bench scales, conveyor scales, filling and packaging machines. Ideal for rugged environment not suitable for aluminum load cells.
SP50 (4025) Anodized Aluminum Single Point Load Cell IP67
Description >
High capacity single point load cell constructed by Aluminum.Capacity: 50kg – 1t
Output: 2.0±10% mV/V
Applications: Large dimension and heavy capacity bench scales and large filling and packaging machines.

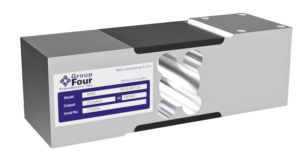

SP60 (4014) Anodized Aluminum Single Point Load Cell IP67
Description >
The model SP60 is constructed from high grade aluminum. It is designed for light to heavy capacity applications and will accommodate off center loads. The capacities offered are from 50kg up to 500kg. This brick style load cell is perfect for industrial platforms, bench scales, packaging machines and filling machines.
Capacity: 50-500 Kg
Applications: Big platforms, bench scales, packaging machines, filling machines
STD (4050) Stainless Steel Single Point Load Cell IP67
Description >
Precise and available with low capacities. Single point load cell made of stainless steel.Capacity: 25lb – 250lb
Output: 2.0±.1 mV/V
Applications: Single point platform scales, belt conveyor scales, bench and counting scales, hopper scales and netweighing, checkweighing scales.
TBSP (4047) Stainless Steel Single Point Load Cell IP67
Description >
Precise and available with low capacities. Single point load cell made of stainless steel.Capacity: 3b – 1000lb
Output: 22.0±.002 mV/V
Applications: Conveyor scales, large bench scales.
TLC (4060) Anodized Aluminum Single Point Load Cell IP67
Description >
The type TLC is an aluminum single point load cell ideal for use in Isheda packaging machines.Applications: Packaging machines, Ishida packaging machines.
TSP (4037) Stainless Steel Single Point Load Cell IP65
Description >
Stainless steel single point load cell available with low capacities. Accurate load cell with cost effective price.Capacity: 25lb – 500lb
Output: 2.0 mV/V
Applications: Platform scales, conveyor scales, bench and counting scales, weigh feeders and filling machines.
TSP51 (4045) Stainless Steel Single Point Load Cell IP67
Description >
Single capacity single point load cell. Material is stainless steel. Available with cost effective price.Capacity: 25lb
Output: 2.0±25% mV/V
Applications: Single point platform scales, belt conveyor scales, bench and counting scales, small hopper scales and netweighing, checkweighing scales.
ZPSP (4099) Stainless Steel Single Point Load Cell IP69
Description >
The ZPSP is a low capacity stainless steel single point load cell with IP69 protection. Highly versatile load cell specially designed for hygienic weighing. Hermetically sealed and easy to clean design ideal for use in wash down conditions. Applications include bench scales, conveyor scales, filling and packaging machines in the food industry.
Capacity: 10kg, 20kg
Applications: Bench Scales, Retail Scales, Checkweighers, Filling & Packaging Machines, Food Industry, Conveyor Scales
SP162 (4076) single point load cell IP66
Description >
The SP162 is a single point triple beam load cell for packaging
machines, bench scale and filling machines. It is a lower cost
solution as well.
Applications: Bench scales,, floor scales, check weighers, packaging machines, industrial process
Capacity: 250kg
