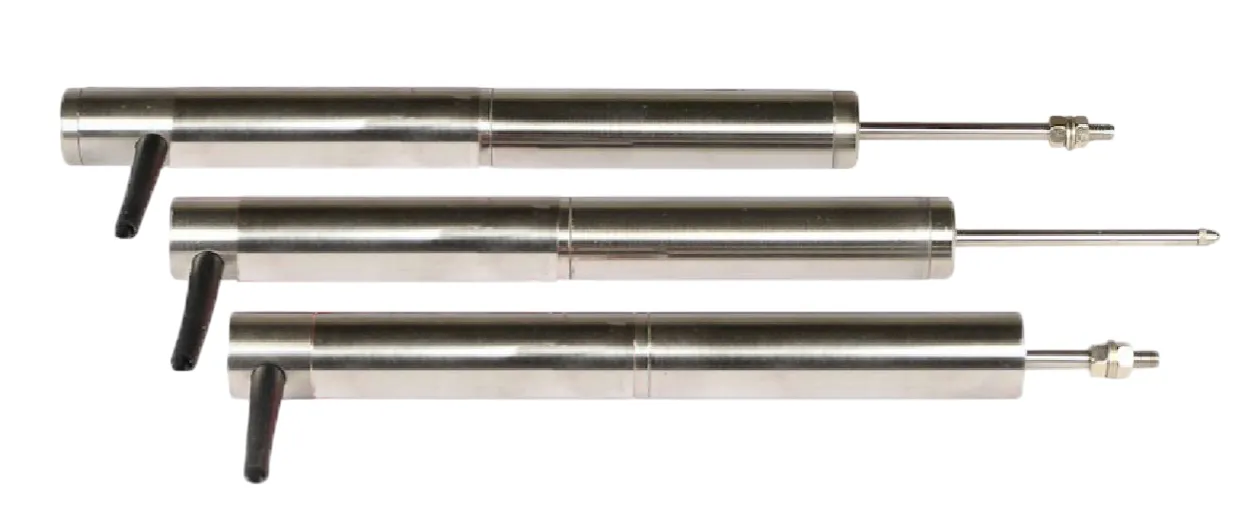

LDT 200 LVDT Transducer

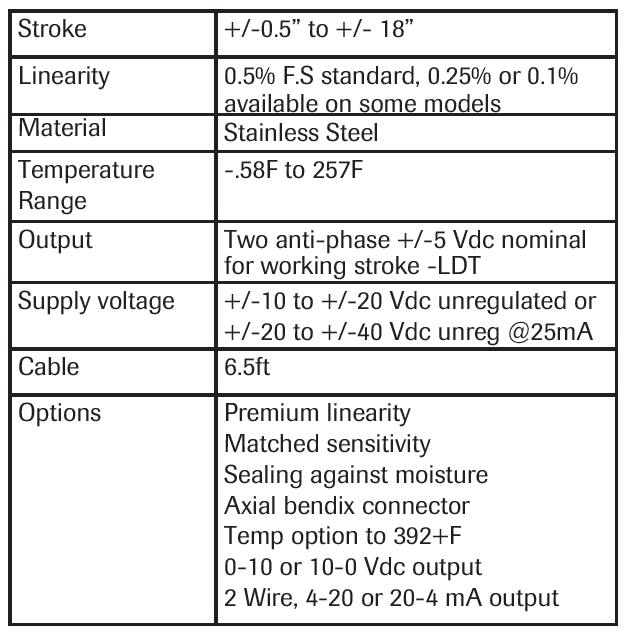

Capacity: 0.5 to 18 In

The Group Four LDT 200 LVDT transducer is available in ranges from +/-0.5 to 18”, and in captive and unguided versions. Requires only simple unregulated power supplies of +20 to +40 Vdc.

  • Choice of armature
  • +/- 0.5” to +/-18” stroke
  • AC or DC operation
  • Up to .1% linearity
