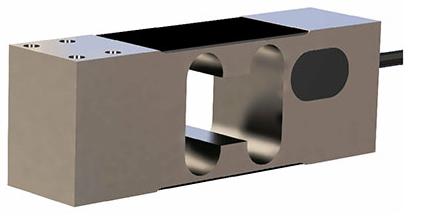

SP46NP (4075) Nickle Plated Steel Single Point Load Cell IP67

Capacity: 50kg to 500kg

This “brick” cell is the workhorse of the single points. It features capacities from 50 kg up to 500kg and can handle a maximum platform size of 15.75″ x 15.75″. Constructed from alloy steel, this cell is more durable than the aluminum version and designed to take industrial abuse. Very commonly found in large bench scales, and medium sized weigh feeders.

  • Capacities from 50kg to 500kg
  • Nickel plated alloy steel construction
  • Environmental protection IP67
  • Maximum platform size up to 15.75″ x 15.75″
  • More rugged than aluminum cells

  • Bench scales
  • Floor scales
  • Conveyor scales
  • Large filling machines,
  • Weigh feeders
  • Medical scales




  • Stainless steel construction
  • Stainless steel hermetically sealed version for heavy wash down applications
