BBA 1026 Bending Beam Load Cell

The 1026 BBA Aluminum Single Ended Bending Beam Load Cell is expertly engineered for precision in light capacity weigh modules and demanding industrial weighing environments. Constructed from high-quality anodized aluminum, this reliable strain gauge sensor delivers accurate, repeatable measurements up to a 250lb capacity. To ensure long-lasting durability, the BBA 1026 model is environmentally sealed with a protective neoprene sleeve, achieving a strict IP67 rating against dust and moisture ingress. Whether you are upgrading existing weighing equipment or designing new custom machinery, this single ended load cell provides the stability and exactness your operations require.

View or download the 1026 BBA Aluminum Single Ended Bending Beam Load Cell datasheet below for full technical specifications and wiring diagrams.

Key Features

Maximum weighing capacity of 250lb for precise light-load applications

Durable anodized aluminum construction designed to resist corrosion

Environmentally sealed configuration featuring a tight neoprene sleeve (IP67 protection class)

Ideal Applications

Small hopper scales for agricultural and manufacturing material handling

Automated filling systems and high-speed packaging machinery

Commercial and industrial bench scales

Additional Options

If your operating environment requires different material specifications, we also offer the BBS stainless steel version for enhanced corrosion resistance and the BBH hermetically sealed version for ultimate protection against harsh washdown conditions.

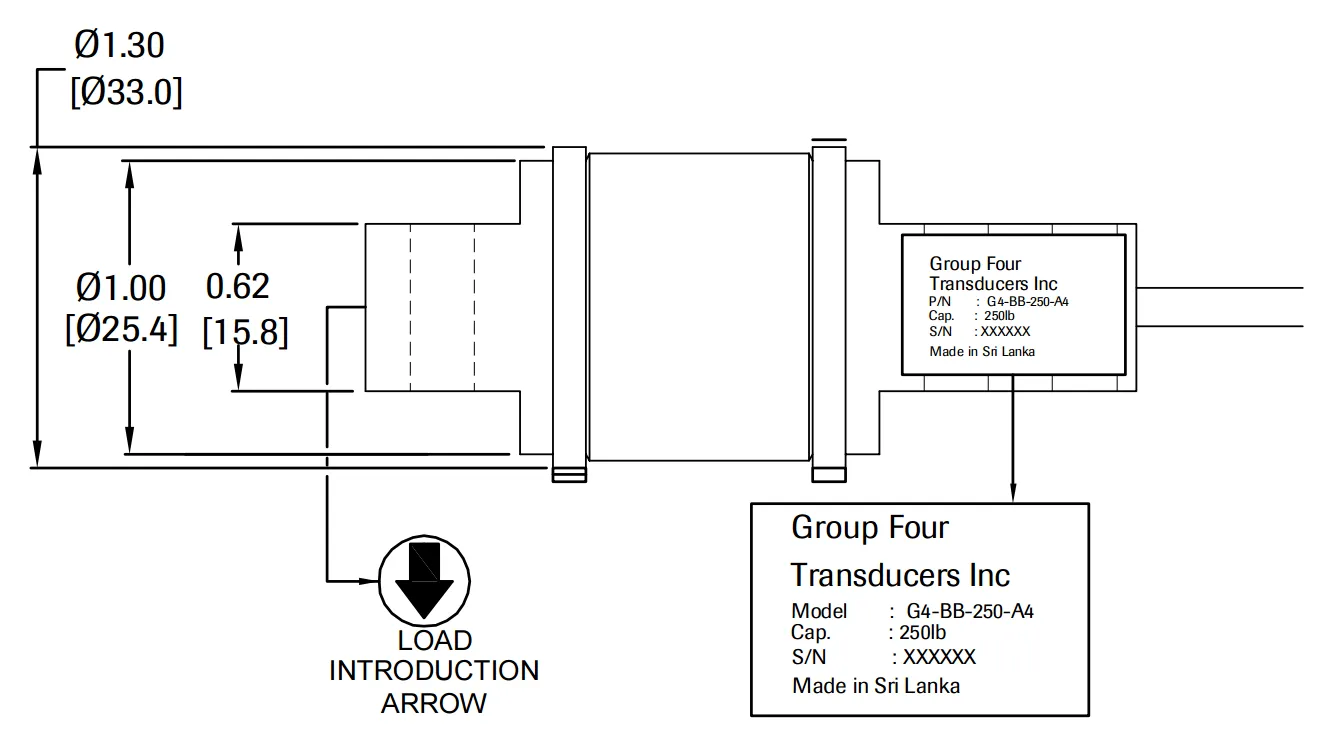

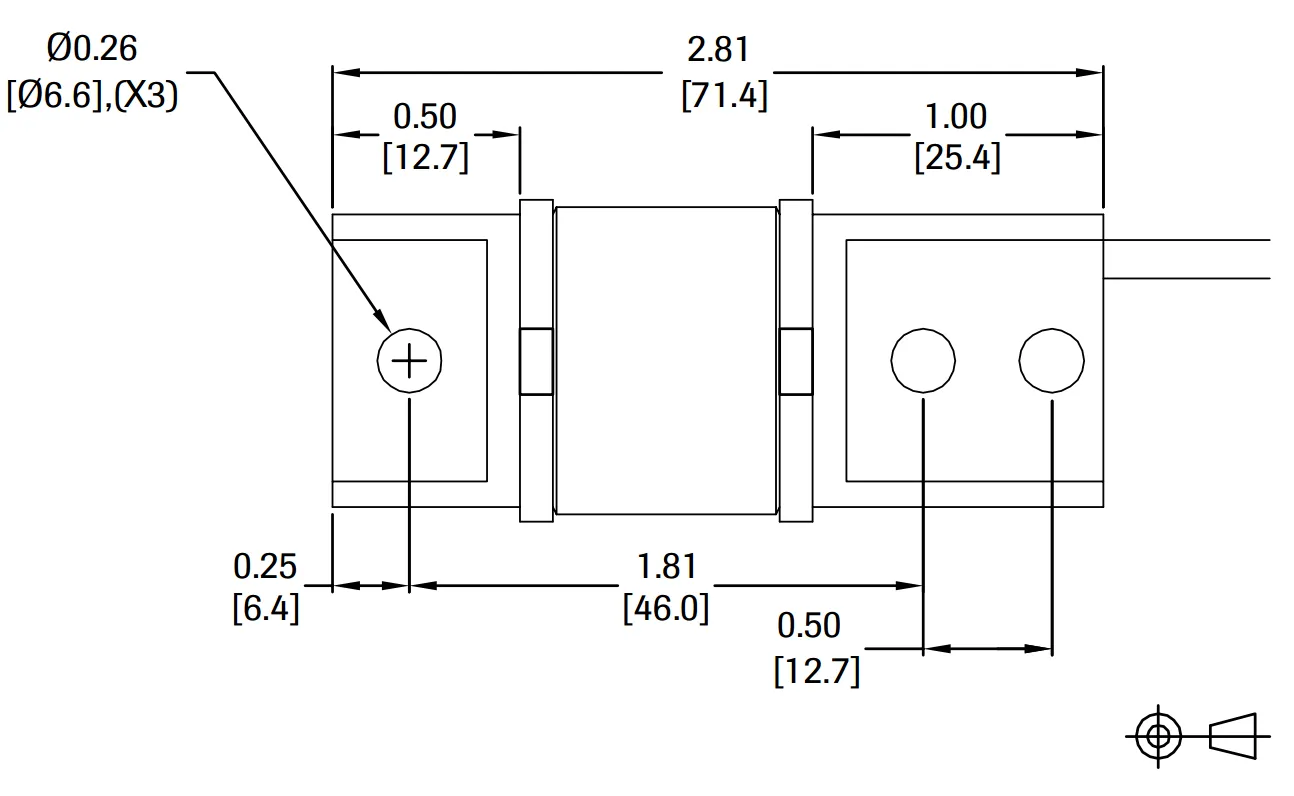

Outline Dimensions

Wiring

Cable : 24 AWG, SS Braided foil shielded, 4 Conductor cable with drain wire, including grounding lug.

Specifications
