3000WM1 Nickel Plated Steel Tension Weigh Module IP67
IMPERIAL
25 lb – 20 klb
METRIC
11.3 – 9,072 kg

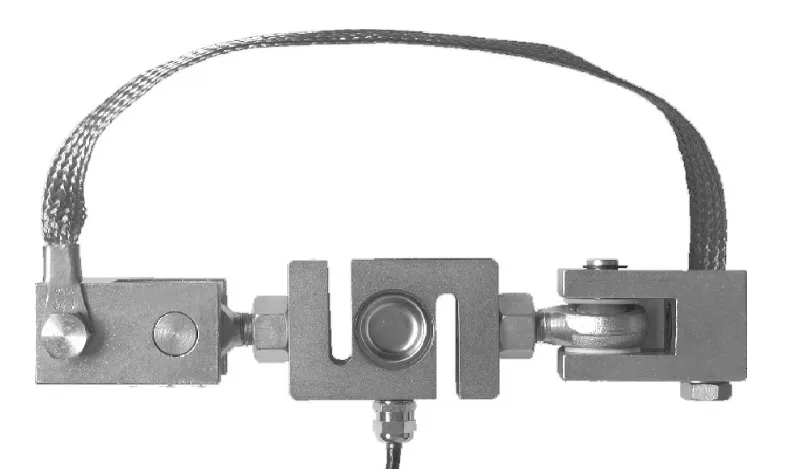

When it comes to suspended weighing applications that demand high accuracy and rugged durability, the 3000WM1 tension weigh module delivers outstanding performance. Engineered from premium nickel-plated alloy steel, this IP67-rated tension weigh module is specifically designed to withstand harsh industrial environments while preventing unwanted extraneous forces from affecting your load cell performance.
Its self-aligning hanger design ensures that the tension load cell remains perfectly aligned, eliminating the risk of binding or side loading. Whether you are upgrading an existing system or designing a new suspended vessel weighing assembly, the 3000WM1 offers a highly reliable, plug-and-play solution. View or download the 3000WM1 Nickel-Plated Steel Tension Weigh Module datasheet below for full technical specifications and wiring diagrams.
Key Features of the 3000WM1
Versatile Capacity Range
Available in rated capacities from 25 lb to 20,000 lb (20 klb) to accommodate a wide variety of industrial setups
Durable Alloy Steel Construction
Built with heavy-duty nickel-plated steel to provide superior corrosion resistance and long-term durability
IP67 Environmental Protection
Sealed against dust, moisture, and water splashes, making it highly reliable for indoor and outdoor industrial environments
Self-Aligning Suspension Design
Automatically centers the load and isolates the weighing sensor from non-axial forces, ensuring maximum accuracy
Advanced Electrical Isolation
Equipped with a heavy-duty grounding strap that bypasses stray currents (such as welding currents), protecting the internal load cell electronics from electrical damage
Hassle-Free Installation
Designed for straightforward mounting and effortless maintenance, significantly reducing system downtime
Common Applications
The 3000WM1 weighing assembly is engineered for precision in various tension-based weighing setups, including:
Hopper scales and suspended ingredient bins
Tank weighing systems and suspended process vessels
Hybrid scale conversions (converting mechanical scales to electronic)
Bulk material blending, batching, and mixing vessels
Overhead track scales and crane-suspended systems
Alternative Options & Models
Looking for a washdown-safe or highly corrosive-resistant option? We also offer the stainless steel tension weigh module (3000WM2).

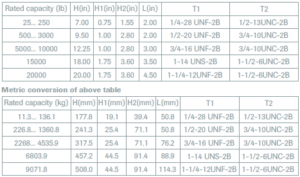

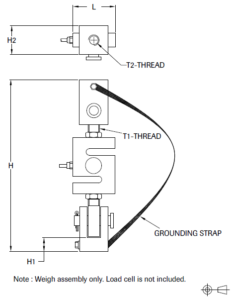

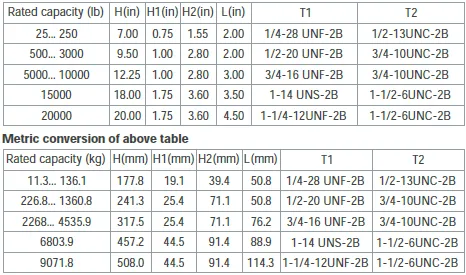

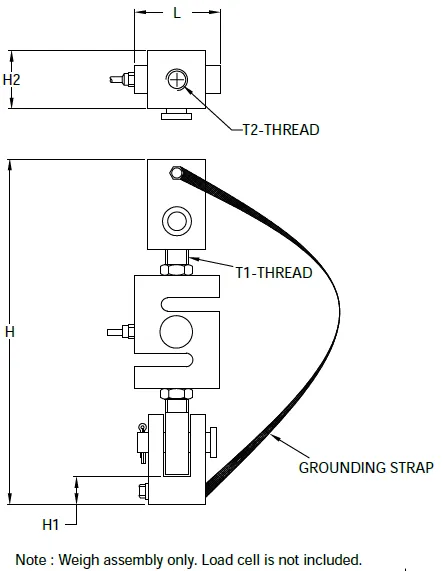

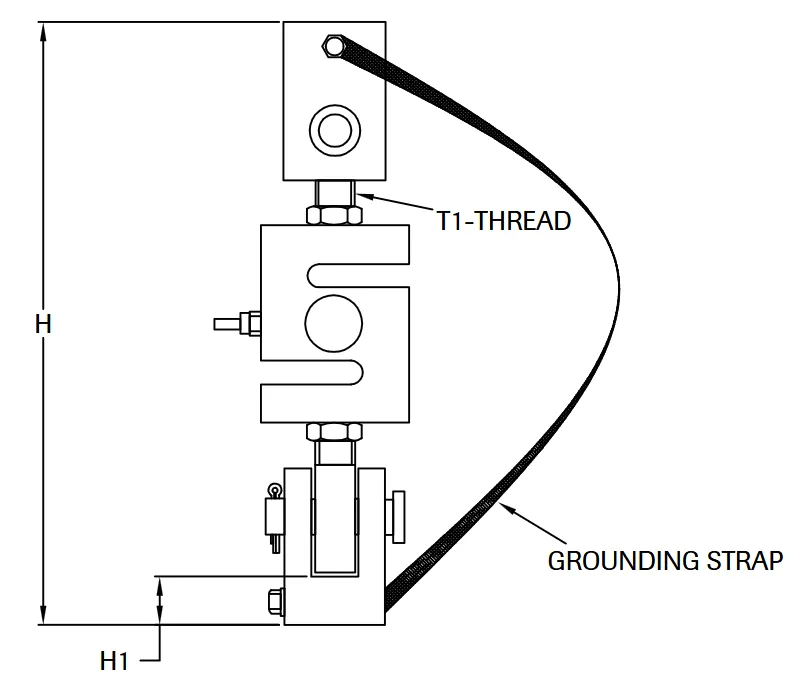

Outline Dimensions
| Rated capacity (lb) | H(in) | H1(in) | H2(in) | L(in) | T1 | T2 |
|---|---|---|---|---|---|---|
| 25… 250 | 7.00 | 0.75 | 1.55 | 2.00 | 1/4-28 UNF-2B | 1/2-13UNC-2B |
| 500… 3000 | 9.50 | 1.00 | 2.80 | 2.00 | 1/2-20 UNF-2B | 3/4-10UNC-2B |
| 5000… 10000 | 12.25 | 1.00 | 2.80 | 3.00 | 3/4-16 UNF-2B | 3/4-10UNC-2B |
| 15000 | 18.00 | 1.75 | 3.60 | 3.50 | 1-14 UNS-2B | 1-1/2-6UNC-2B |
| 20000 | 20.00 | 1.75 | 3.60 | 4.50 | 1-1/4-12UNF-2B | 1-1/2-6UNC-2B |
Metric conversion of above table
| Rated capacity (lb) | H(in) | H1(in) | H2(in) | L(in) | T1 | T2 |
|---|---|---|---|---|---|---|
| 11.3… 136.1 | 177.8 | 19.1 | 39.4 | 50.8 | 1/4-28 UNF-2B | 1/2-13UNC-2B |
| 226.8… 1360.8 | 241.3 | 25.4 | 71.1 | 50.8 | 1/2-20 UNF-2B | 3/4-10UNC-2B |
| 2268… 4535.9 | 317.5 | 25.4 | 71.1 | 76.2 | 3/4-16 UNF-2B | 3/4-10UNC-2B |
| 6803.9 | 457.2 | 44.5 | 91.4 | 88.9 | 1-14 UNS-2B | 1-1/2-6UNC-2B |
| 9071.8 | 508.0 | 44.5 | 91.4 | 114.3 | 1-1/4-12UNF-2B | 1-1/2-6UNC-2B |

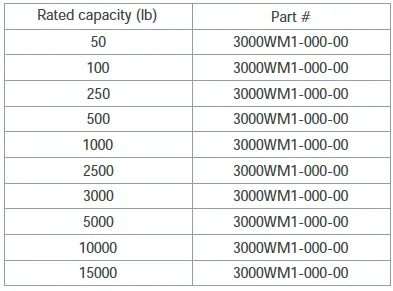

Part Numbers
| Rated capacity (lb) | Part Number |
|---|---|
| 50 | 3000WM1-000-00 |
| 100 | |
| 250 | |
| 500 | |
| 1000 | |
| 2500 | |
| 3000 | |
| 5000 | |
| 10000 | |
| 15000 |
