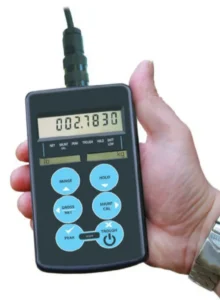

3310HD Handheld Indicator

The model 3310HHD is a highly versatile, completely portable, and battery-powered handheld indicator. Engineered for precision and ease of use in the field, it serves as an ideal load cell indicator, strain gauge indicator, and high-accuracy force display.

hether you need a reliable weight indicator for industrial scale calibration, a portable weight monitor for on-site testing, or a robust digital load indicator, the 3310HHD delivers exceptional performance. It is powerful enough to drive up to four strain gauge bridges simultaneously, making it an essential tool for engineers, technicians, and quality control professionals who require accurate mobile measurements without sacrificing functionality. View or download the datasheet below for full technical specifications and wiring diagrams.

Get a Quote Download 3310HHD Load Cell Indicator datasheet

Key Features

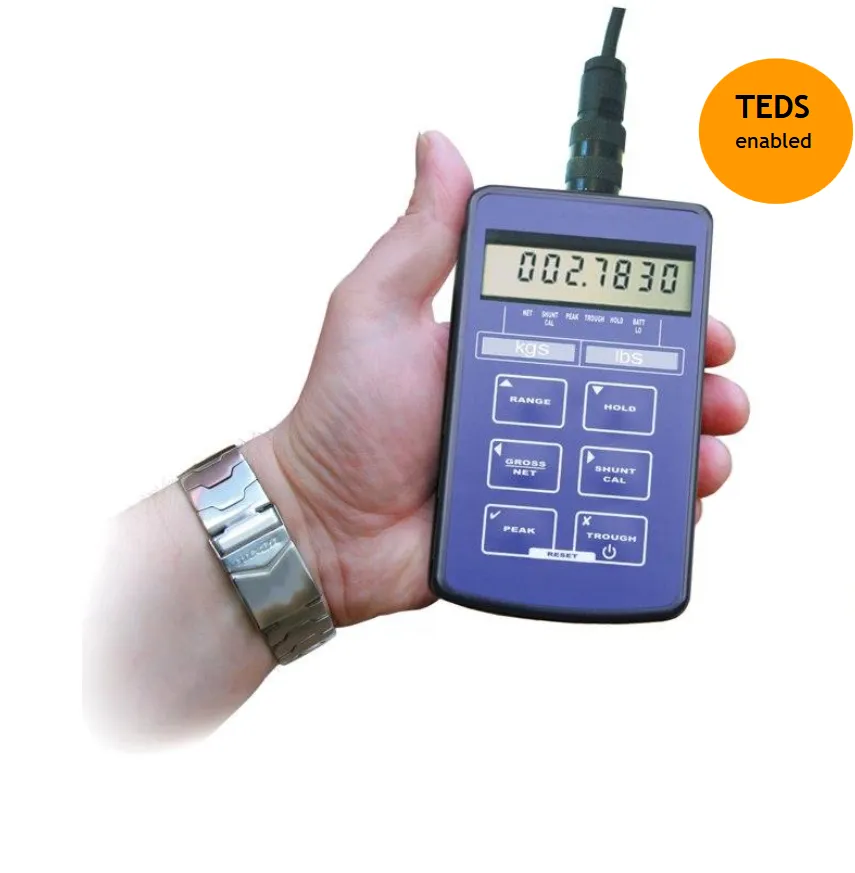

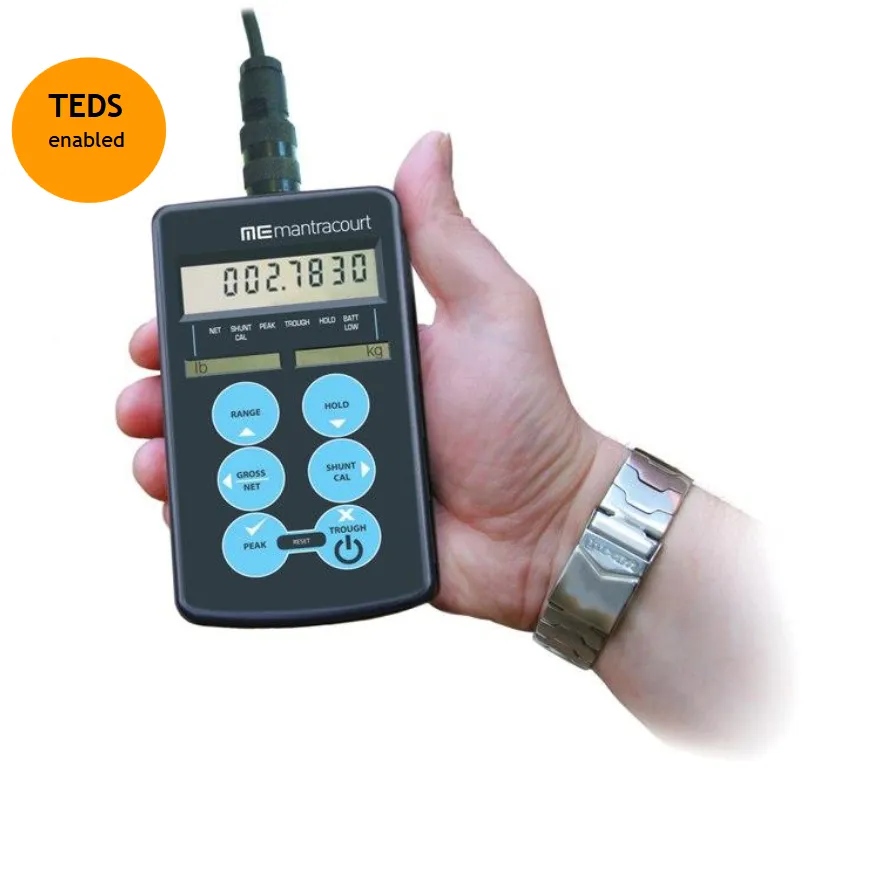

TEDS plug and play capability for quick, seamless sensor recognition and setup

Ergonomic handheld 7-digit LCD display featuring clear peak, trough, net, overload, and shunt cal indication

Exceptional battery life of 450 hours in power-save mode, ensuring uninterrupted force measurement during long shifts

Intuitive front-panel keys for on/off, range select, peak/valley hold, and gross/net adjustments

Advanced microprocessor-based design allowing single-pass calibration (direct mV/V)

Dual range functionality for effortlessly switching between measurement values such as kg and lb

Ultra-lightweight and easy to carry—weighing only 250 grams, it reduces user fatigue

Waterproof IP65 NEMA4 rated enclosure, making this battery-powered weight indicator highly durable in harsh or outdoor environments

Common Applications

Mobile force and weight measurement in industrial, manufacturing, and laboratory environments

Field calibration, troubleshooting, and verification of existing load cells and strain gauges

Portable weighing systems for lifting, rigging, and material handling

Quality assurance testing that requires a reliable, mobile measurement display

Available Options

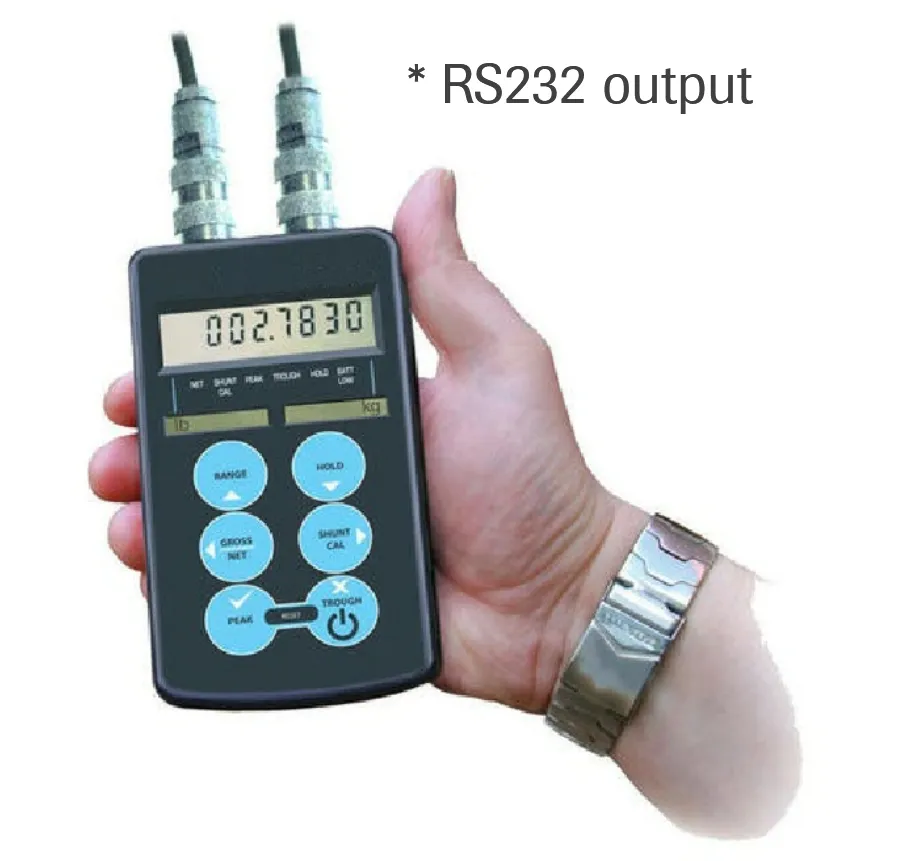

RS232 output for streamlined data logging and integration with external systems

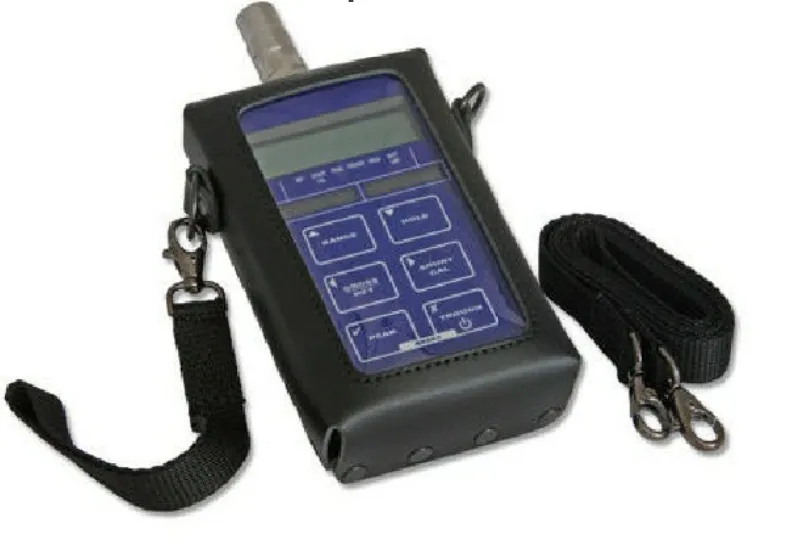

Optional black leather carry case equipped with a clear viewing window and a convenient shoulder strap for maximum protection and mobility

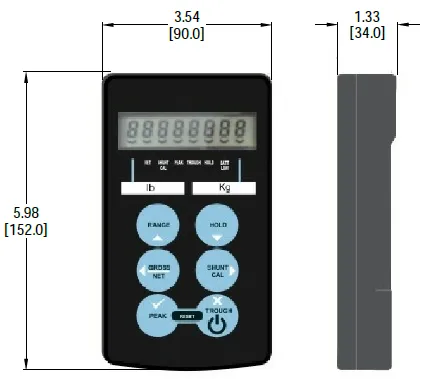

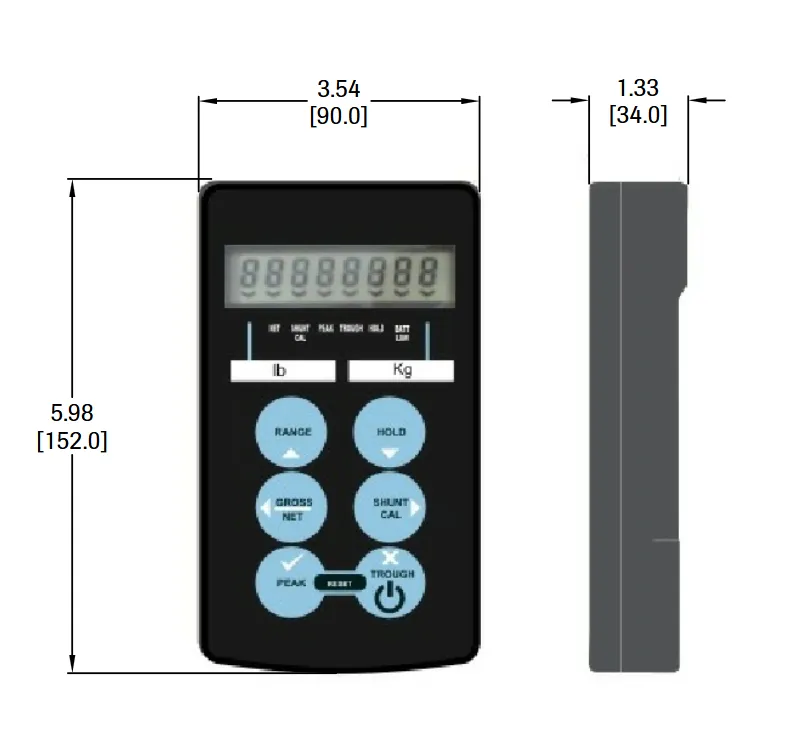

Outline Dimensions

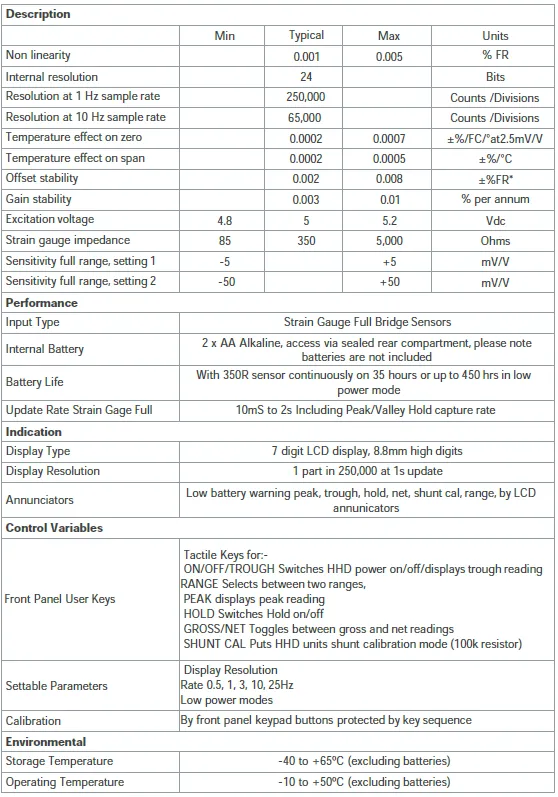

3310HHD Handheld Load Cell Indicator Technical Specifications

	Min	Typical	Max	Units
Non-linearity		0.001	0.005	% FR
Internal resolution		24		Bits
Resolution at 1 Hz sample rate		250,000		Counts /Divisions
Resolution at 10 Hz sample rate		65,000		Counts /Divisions
Temperature effect on zero		0.0002	0.0007	±%/FC/°at2.5mV/V
Temperature effect on span		0.0002	0.0005	±%/°C
Offset stability		0.002	0.008	±%FR*
Gain stability		0.003	0.01	% per annum
Excitation voltage	4.8	5	5.2	Vdc
Strain gauge impedance	85	350	5,000	Ohms
Sensitivity full range, setting 1	-5		+5	mV/V
Sensitivity full range, setting 2	-50		+50	mV/V
Performance
Input Type	Strain Gauge Full Bridge Sensors
Internal Battery	2 x AA Alkaline, access via sealed rear compartment, please note batteries are not included
Battery Life	With 350R sensor continuously on 35 hours or up to 450 hrs in low power mode
Update Rate Strain Gage Full	10mS to 2s Including Peak/Valley Hold capture rate
Indication
Display Type	7 digit LCD display, 8.8mm high digits
Display Resolution	1 part in 250,000 at 1s update
Annunciators	Low battery warning peak, trough, hold, net, shunt cal, range, by LCD annunicators

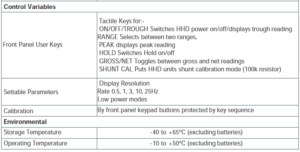

Control Variables
Front Panel User Keys	Tactile Keys for:- ON/OFF/TROUGH Switches HHD power on/off/displays trough reading RANGE Selects between two ranges, PEAK displays peak reading HOLD Switches Hold on/off GROSS/NET Toggles between gross and net readings SHUNT CAL Puts HHD units shunt calibration mode (100k resistor)
Settable Parameters	Display Resolution Rate 0.5, 1, 3, 10, 25Hz Low power modes
Calibration	By front panel keypad buttons protected by key sequence
Environmental
Storage Temperature	-40 to +65ºC (excluding batteries)
Operating Temperature	-10 to +50ºC (excluding batteries)
