5041 (LPM 510) Subminiature Compression Load Cell

IMPERIAL

10 – 500 lb

METRIC

4.5 – 227 kg

When industrial or testing applications require precise force measurement in highly restricted spaces, the 5041 (LPM 510) subminiature load cell provides an ideal solution. Engineered specifically for environments where standard sensors simply will not fit, this wafer-thin force sensor delivers exceptional accuracy without compromising on durability or performance.

While the standard Model LPM 510 is primarily designed for compression only measurements, the broader product family offers tension/compression capabilities depending on your specific configuration. It is built to reliably measure broad load ranges from 150 grams up to 1000 pounds (with standard capacities often grouped in the 10 – 500 lb range). Furthermore, this miniature compression sensor is characterized by a high frequency response rate, making it perfect for dynamic testing, robotics, and high-speed automation. View or download the LPM 510 Subminiature Load Cell datasheet below for full technical specifications and wiring diagrams.

Get a Quote Download LPM 510 5041 datasheet

Key Features

Tension/compression capabilities

Wafer thin and highly compact profile

Broad capacity range from 10 lb to 500 lb

High/low temperature option available for extreme environments

Optional bottom cable exit for versatile mounting

IP67 environmental protection rating

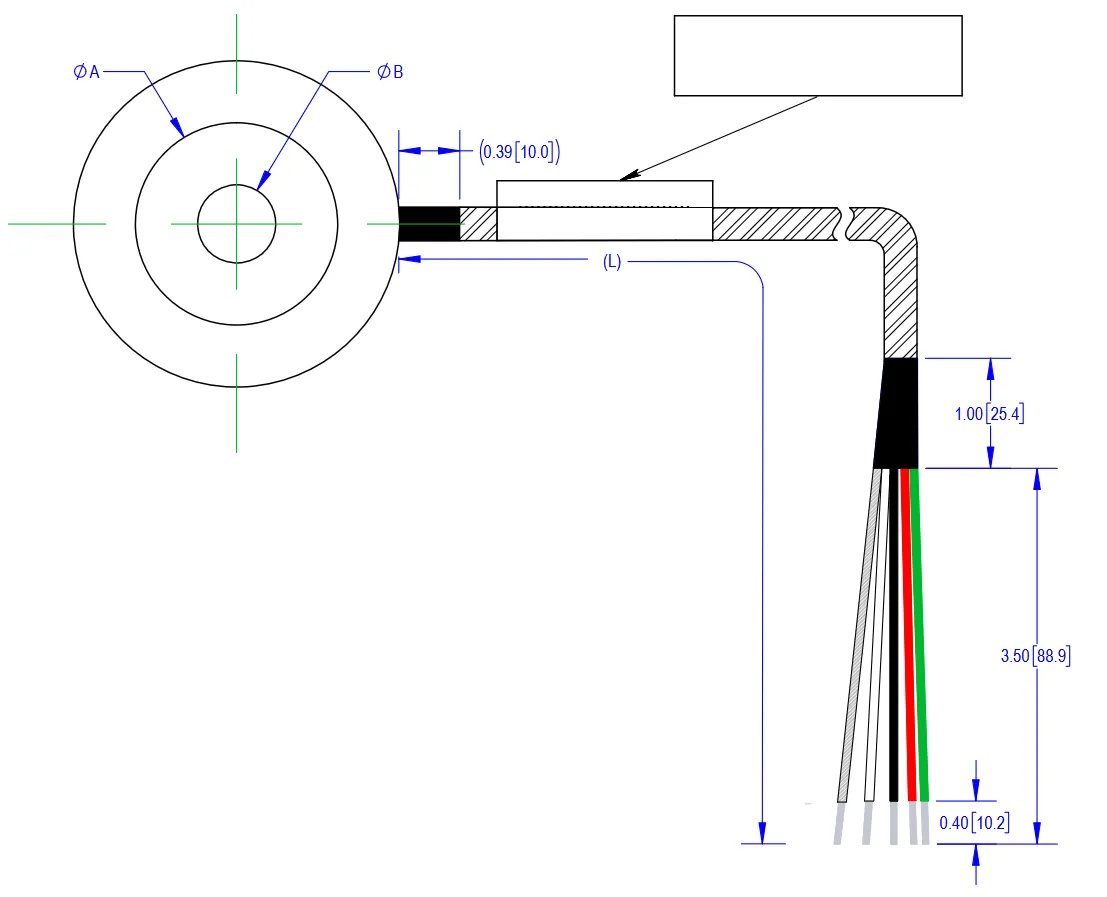

Outline Dimensions

Capacity (lb)	A	B	C	D	E
10	0.31(7.9)	0.12(3.0)	0.15(3.9)	0.14(3.6)	0.50(12.7)
25
50
100
250
500	0.63(16.0)	0.20(5.1)	0.25(6.4)	0.24(6.0)	0.75(17.8)

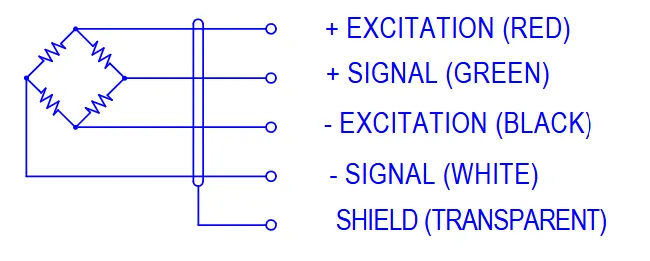

Pin Configuration

Specifications

Model		LPM 510
Capacities		lb	10, 25, 50, 100, 250, 500
Full scale output		mV/V	See this table
Non-linearity		%FS	≤±1.0
Hysteresis		%FS	≤±1.0
Non-repeatability		%FS	≤±0.5
Zero Balance		%FS	≤±10
Temperature range
	Compensated	°C	-10 ~ + 40
	Operating	°C	-20 ~ + 65
Terminal resistance		Ω	See this table
	Input resistance	Ω	1100±30
	Output resistance	Ω	1000±5
Excitation voltage		VDC	5 ~ 15
Insulation resistance @ 50V DC		MΩ	≥5000
Safe overload limit		%FS	150
Cable length		ft	5.5
Seal type		IP67
Cable Type		34 AWG 4 Conductor Outer Braided Shielded Cable
Element material		See this table

Part Numbers

Capacity (lb)	Part Number	Full Scale Output (mV/V)	Terminal Resistance		Element Material
Capacity (lb)	Part Number	Full Scale Output (mV/V)	Input	Output	Element Material
10	5041-003-00	1-3 mV/V	350±5	350±5	Aluminum
25	5041-004-00	1-3 mV/V			Aluminum
550	5041-005-00	1-3 mV/V			Stainless Steel
100	5041-000-00	1-3 mV/V
250	5041-001-00	1-3 mV/V
500	5041-002-00	2.0±15%	700±5	700±5
