7i Professional Digital Force and Torque Indicator

The 7i professional digital force & torque indicator is an advanced, highly versatile measurement solution engineered to integrate seamlessly with a wide range of remote force and torque sensors. Whether you are upgrading your current force measurement equipment or building a new testing station, the 7i delivers precision and adaptability for the most demanding industrial environments.

At the core of this device is the exclusive Plug & Test™ technology. This innovative feature allows all essential calibration and configuration data to be saved directly within the smart connector of the sensor, rather than inside the indicator itself. This ensures true interchangeability across your facility—you can swap sensors in seconds without needing to recalibrate the unit, minimizing downtime during critical quality control testing.

Unmatched Speed and Precision

Building upon the capabilities of the 5i model, the 7i indicator introduces high-speed continuous data capture to catch even the most rapid micro-events during your testing cycles. It features a blazing-fast acquisition rate of up to 14,000 Hz and offers reliable internal storage with memory for up to 5,000 readings.

To accommodate complex testing protocols, the 7i comes equipped with programmable footswitch sequencing, automated sample break detection, and highly accurate 1st and 2nd peak detection. For specialized material testing, users can leverage the built-in coefficient of friction unit of measurement, or establish a completely user-defined unit of measurement for maximum flexibility in unique applications.

Streamlined Workflow and Data Management

Designed strictly with productivity enhancement in mind, this indicator dramatically reduces manual input. Upon the completion of a test sequence—such as break detection, averaging, an external trigger, or peak detection—the device automatically triggers data output, data storage, and zeroing functions.

Every 7i unit includes the powerful MESUR™ Lite data acquisition software, which perfectly tabulates both continuous and single-point data. All stored metrics can be quickly downloaded to a PC in bulk. With a simple one-click export to Excel, your engineering team can seamlessly transition from raw data collection to advanced data manipulation and reporting.

View or download the datasheet below for full technical specifications and wiring diagrams.

Key Features

High-speed sampling rate (14,000 Hz) for ultimate precision

Continuous data capture and internal storage of up to 5,000 data points

Seamless data downloading to a PC

Automatic output, data storage, and zeroing after test completion

Advanced sample break detection with auto-functions

External trigger mode for remote testing operations

Customizable footswitch command string

1st / 2nd peak detection capabilities

Large, backlit, easy-to-read LCD screen

Six standard units of measurement plus one user-defined unit

Built-in averaging mode

Sensor password protection to prevent unauthorized calibration changes

Ideal Industry Applications

Automotive industry testing and validation

Heavy and precision manufacturing

Industrial assembly lines

Strict quality control and laboratory environments

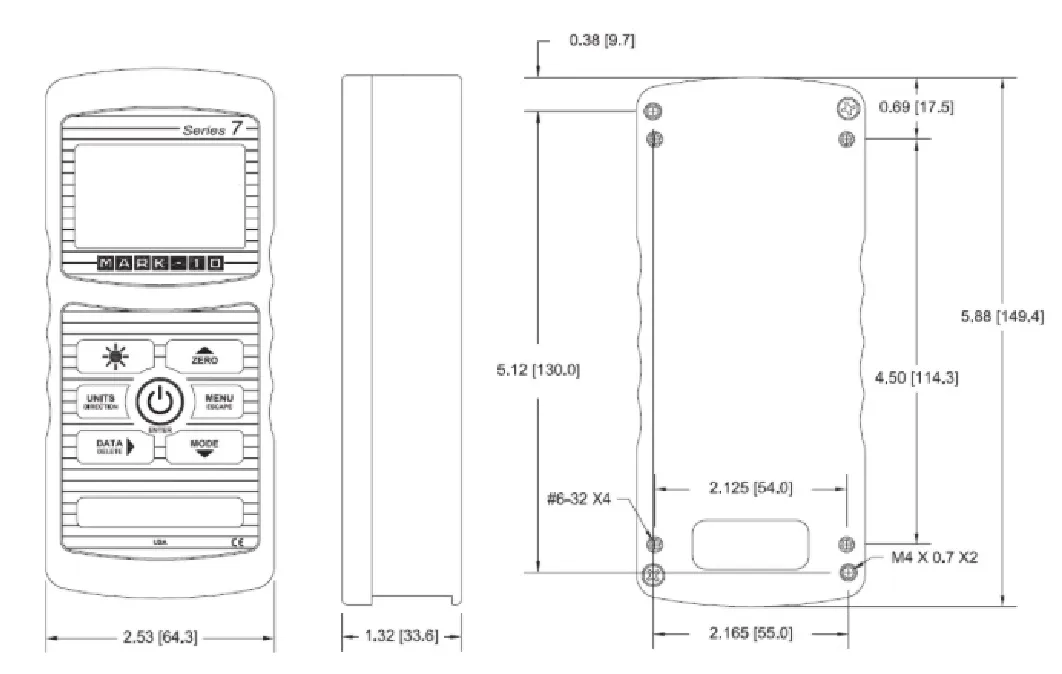

Outline Dimensions

7i Digital Force Torque Indicator Technical Specifications

Part Numbers
