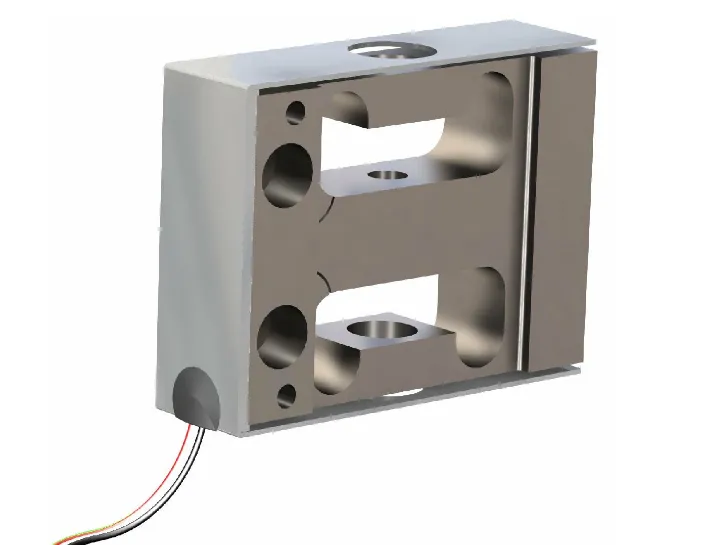

OEM Single Point Load Cell 8005 8006
IMPERIAL
2 – 500 lb
METRIC
0.9 – 226.8 kg
The OEM Single Point Load Cell 8005 8006 series is designed for special force and weight applications. The compact design makes it easy to fit the load cell into unique form factor requirements.
OEM Single Point Load Cell 8005 8006 series offers an impressive lightweight design with an easy side mounting feature making it ideal for OEM applications.
View or download the datasheet below for full technical specifications and wiring diagrams.
Features
- Capacities from 2lb to 500lb

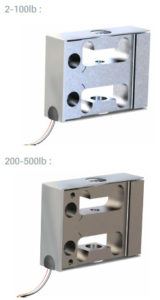

- Aluminum construction for 2-100lb
- Stainless steel is for 200-500lb
- Environmental Protection IP67
- Tension & Compression
- Single Point Construction
- Built-in Overload Protection
Applications
- Force test machine
Options
- Service temperature range up to 120°C
- 6 wire circuit
- Lightning protection
- Stainless steel (rated capacity 100kg)
- Environmental Protection IP67

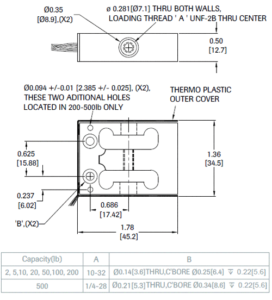

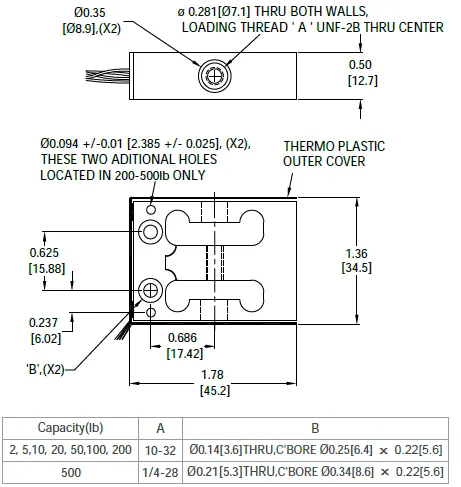

Outline Dimensions
Wiring
Specifications
| Model | 8005 / 8006 | |
|---|---|---|
| Capacities | lb | 2, 5, 10, 20, 50, 100, 200, 500 |
| Full scale output(FS) | mV/V | 2±10% |
| Non-linearity (2- 100lb) | %FS | ≤±0.02 |
| Non-linearity (200- 500lb) | %FS | ≤±0.06 |
| Hysteresis (2-100lb) | %FS | ≤±0.02 |
| Hysteresis (200- 500lb) | %FS | ≤±0.06 |
| Non- repeatability | %FS | ≤±0.02 |
| Creep@30min | %LOAD | ≤±0.025 |
| Zero Balance | %FS | ≤±3 |
| Temperature effect | ||
| Output | %FS/°C | ≤±0.01 |
| Zero | %FS/°C | ≤±0.01 |

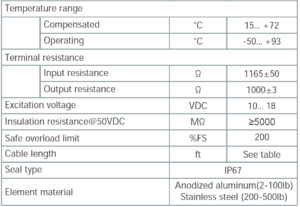

| Temperature range | ||
| Compensated | °C | 15… +72 |
| Operating | °C | -50… +93 |
| Terminal resistance | ||
| Input resistance | Ω | 1165±50 |
| Output resistance | Ω | 1000±3 |
| Excitation voltage | VDC | 10… 18 |
| Insulation resistance@50VDC | MΩ | ≥5000 |
| Safe overload limit | %FS | 200 |
| Cable length | ft | See table |
| Seal type | IP67 | |
| Element material | Anodized aluminum(2-100lb) Stainless steel (200-500lb) | |

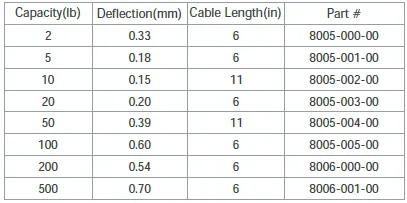

Part Numbers
| Capacity(lb) | Deflection(mm) | Cable Length(in) | Part Number |
|---|---|---|---|
| 2 | 0.33 | 6 | 8005-000-00 |
| 5 | 0.18 | 6 | 8005-001-00 |
| 10 | 0.15 | 11 | 8005-002-00 |
| 20 | 0.20 | 6 | 8005-003-00 |
| 50 | 0.39 | 11 | 8005-004-00 |
| 100 | 0.60 | 6 | 8005-005-00 |
| 200 | 0.54 | 6 | 8006-000-00 |
| 500 | 0.70 | 6 | 8006-001-00 |
