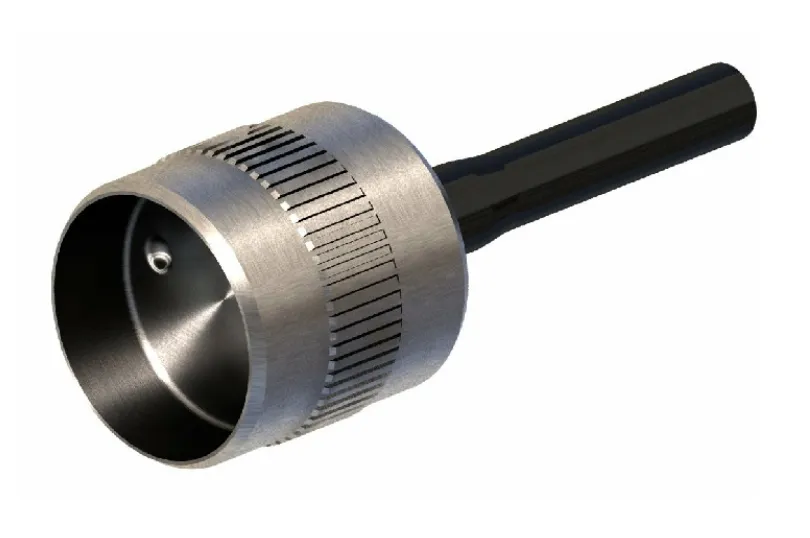

Insert Force Sensor 8011
Capacity: hundreds of kg to thousands of t
This Insert Force Sensor is designed to be fixed to the leg of a tank or silo or vessel. It is ideal for measurement of level and is used in cases where the silo is very large or when it is difficult to place the tank on standard load cells.
Below you can view or download the datasheet of Insert Force Sensor 8011
Features of Insert Force Sensor 8011
- Capacity ranging from hundreds of kg to thousands of t, all with the same sensor; depending on your structure
- Simple press fit mounting
- Easily installable in existing structures
- Stainless steel construction
- Hermetically sealed
- Minimal temperature effect
- Measures compression, tension, shear,bending and torsion
- Easy adaptable in OEM products
Applications
- Silo weighing systems
- Tank weighing systems
- Agricultural equipment
- Lift trucks
- Structural load measuring
- Crane weighing
- Crane overload protection sensing
- Rolling mill sensing
- Machine tool wear sensing
Options
- 10m length cable
technical details of 8011 Insert Force Sensor Load Cell

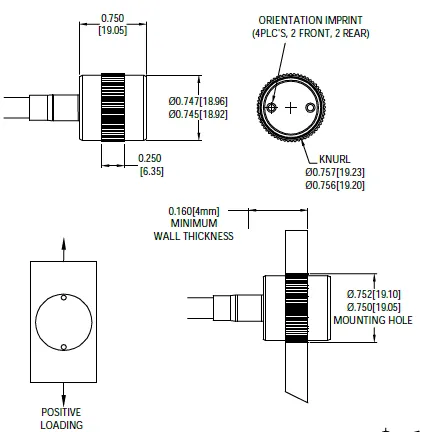

Outline Dimensions
Wiring

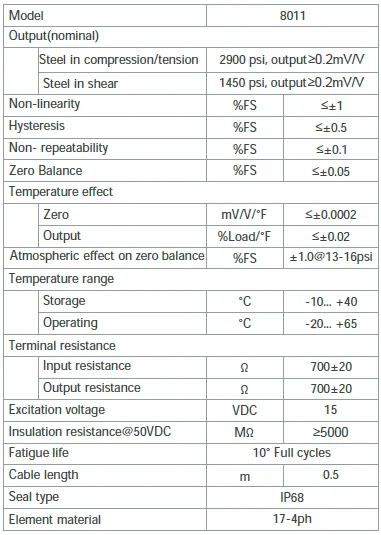

Specification
Part Numbers
