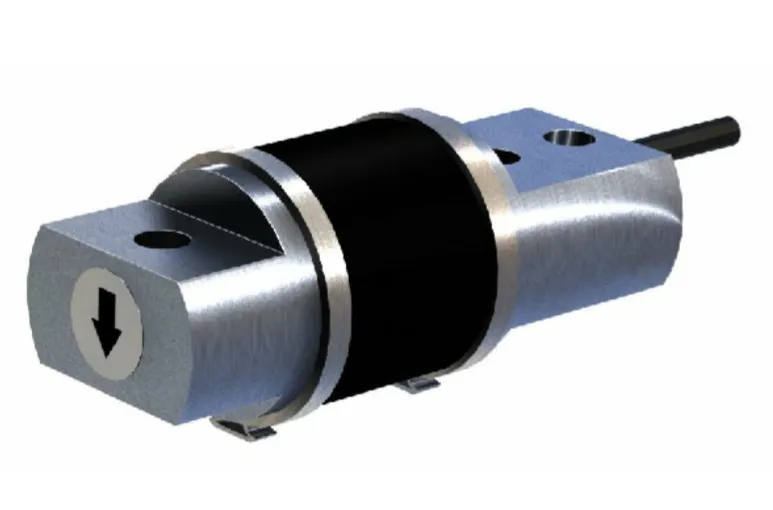

BBA 1026 Aluminum Single Ended Bending Beam Load Cell
Get info

BBA (1026) Aluminum Single Ended Bending Beam Load Cell IP67

Capacity: 250 lb

1026 BBA Aluminum Single Ended Bending Beam Load Cell, perfect for light capacity weigh modules.



Features

  • Capacity 250lb
  • Anodized Aluminum construction
  • Environmentally sealed with neoprene sleeve, IP67

applications

  • Applications: Small hopper scales, Filling systems & Bench scales

options

  • BBS -Stainless steel version
  • BBH -Hermetically sealed version

technical details of BBA (1026) Bending Beam Load Cell IP67

Outline Dimensions

BBA 1026 Aluminum Single Ended Bending Beam Load Cell outline dimensions

BBA 1026 Aluminum Single Ended Bending Beam Load Cell wiring

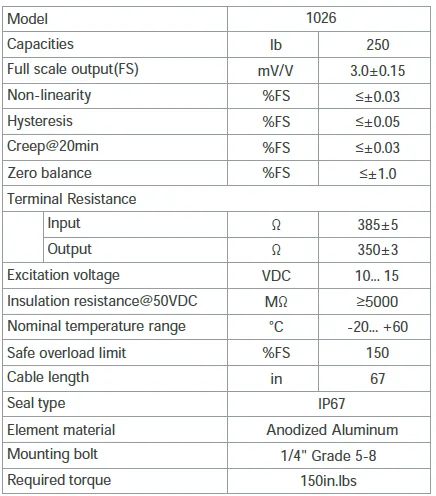

BBA 1026 Aluminum Single Ended Bending Beam Load Cell specification
