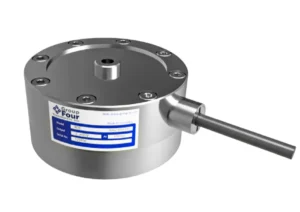

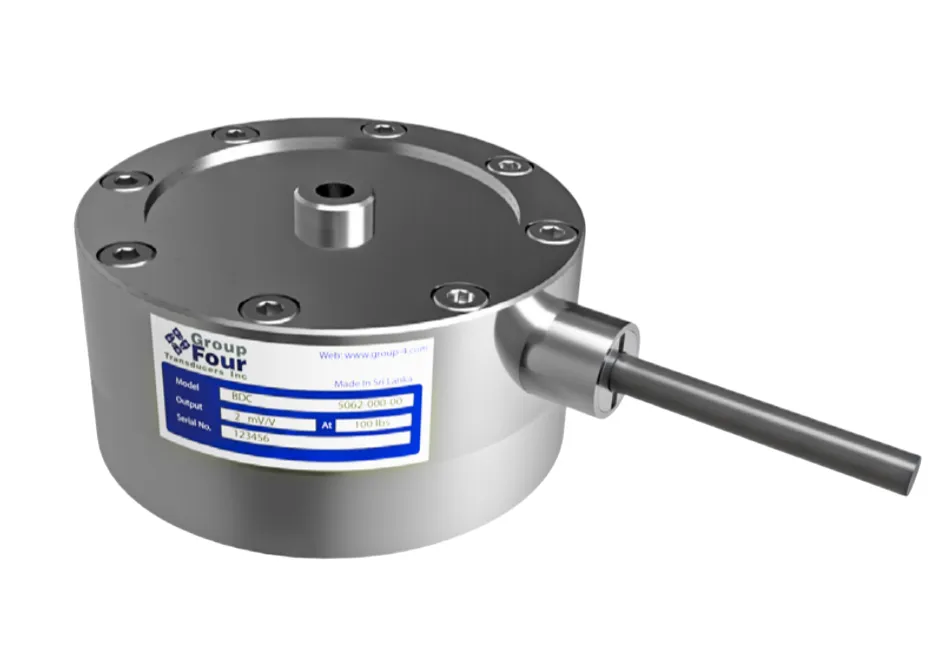

BDC (5062) Compression Load Cell IP68
Capacity: 100 to 5000 lb
The BDC is stainless steel compression load cell. Ideal for use in hopper weighing, tank weighing and force measurement.
Features
- Capacity 100, 250, 500, 1000, 2000 & 5000 lbs
- Environmental protection IP68
- MOC: stainless steel
- Overload stop for additional safety
applications
- Platform scales
- Material testing
- Hopper weighing
- Tank weighing
- Force measurement
technical details of BDC (5062) Compression Load Cell

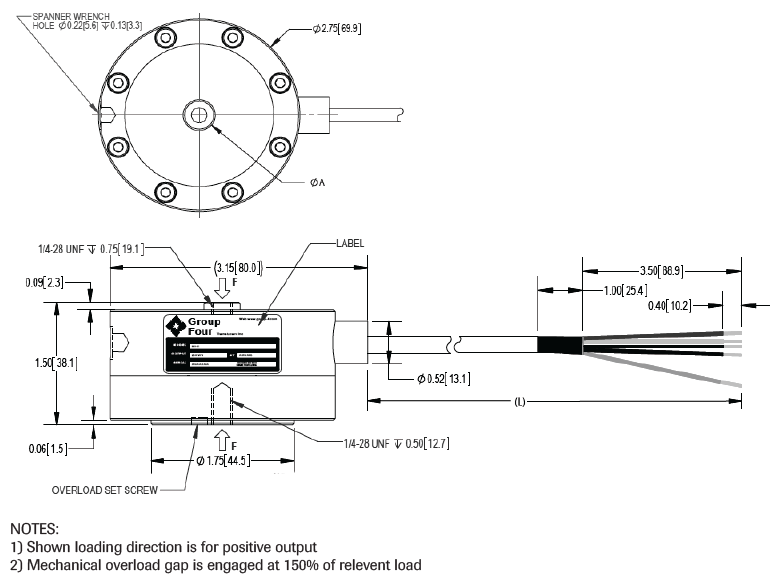

Outline Dimensions
Wiring

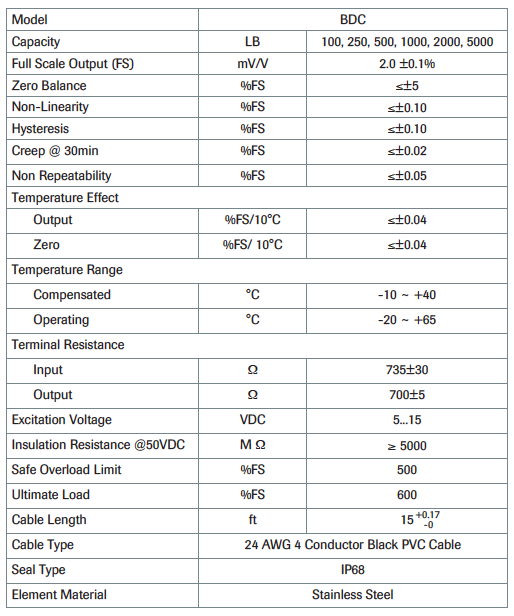

Specification
Part Numbers
