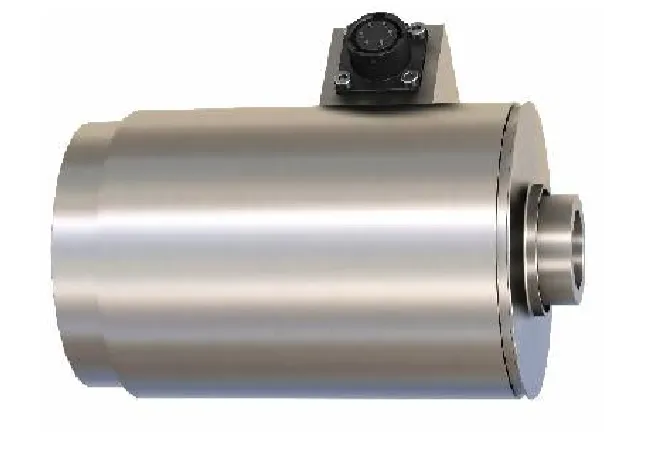

Tension and Compression Canister Load Cell COLC 5038
Capacity: 10 klb
The COLC canister load cell is designed to measure forces in tension and compression up to 10,000 lbs.
Below you can view or download the datasheet of Tension and Compression Canister Load Cell COLC 5038.
Features
- Capacity 10klb
- Stainless steel construction
- Environmental protection IP67
Applications
- Axial tension and compression applications

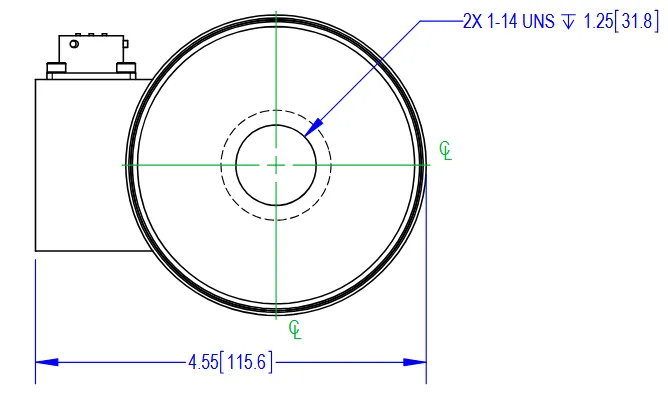

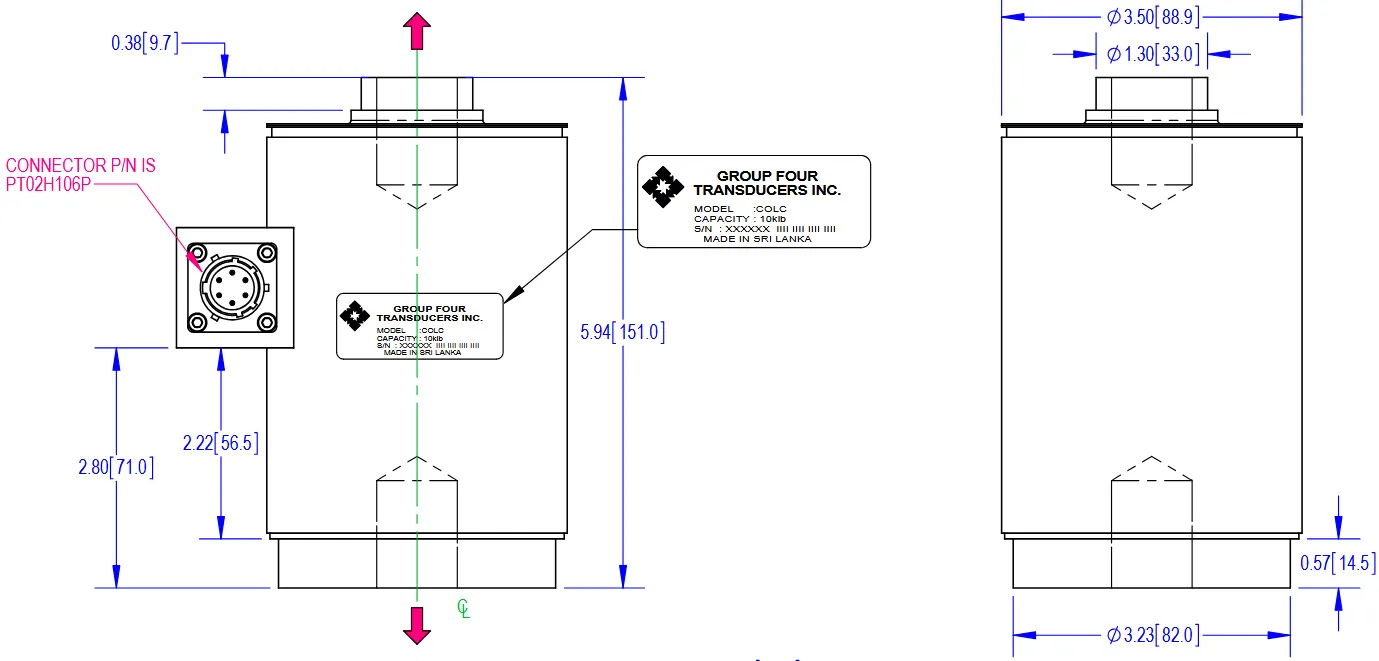

Outline Dimensions

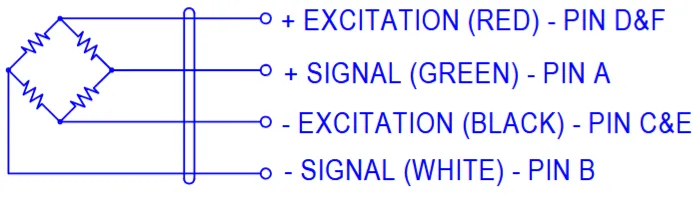

Wiring

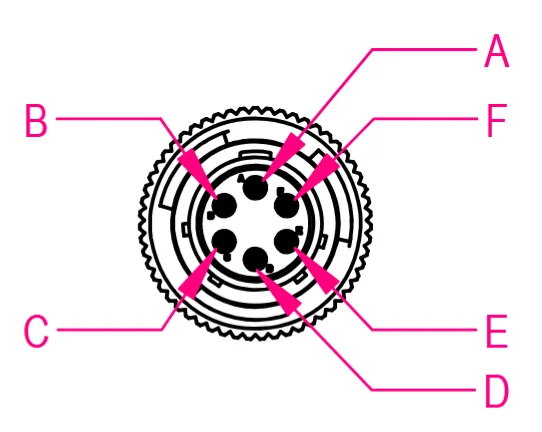

Pin Configuration
Connector PN: PT02H106P
Mating Connector PN: PT06F10-6S
Specifications
| Model | COLC | |
|---|---|---|
| Capacity | klb | 10 |
| Full scale output (FS) | mV/V | 3.0±0.1% |
| Zero balance | %FS | ≤±1 |
| Non-linearity | %FS | ≤±0.05 |
| Hysteresis | %FS | ≤±0.05 |
| Non-repeatability | %FS | ≤±0.03 |
| Creep @ 30 min | %FS | ≤±0.02 |
| Temperature effect | ||
| Output | %FS/ 10ºC | ≤±0.04 |
| Zero | %FS/ 10ºC | ≤±0.04 |
| Temperature range | ||
| Compensated | ºC | -10… +40 |
| Operating | ºC | -20… +65 |
| Terminal resistance | ||
| Input resistance | Ω | 420±50 |
| Output resistance | Ω | 350±5 |
| Excitation voltage | VDC | 5… 15 |
| Insulation resistance @50VDC | MΩ | ≥5000 |
| Safe overload limit | %FS | 150 |
| Ultimate load | %FS | 300 |
| Seal type | IP67 | |
| Element material | Stainless steel | |
Part Numbers
| Capacity(klb) | Part Number |
|---|---|
| 10 | 5038-000-02 |
Tension and Compression Canister Load Cell COLC 5038 dimensions and specifications subject to change without notice.
