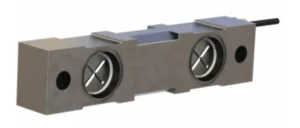

DEB016AS (2012) Double Ended Shear Beam Load Cell

Capacity: 2.5Klb to 50Klb

The type 2012 is a stainless steel double ended shear beam, commonly used in general purpose weigh systems and truck scales.

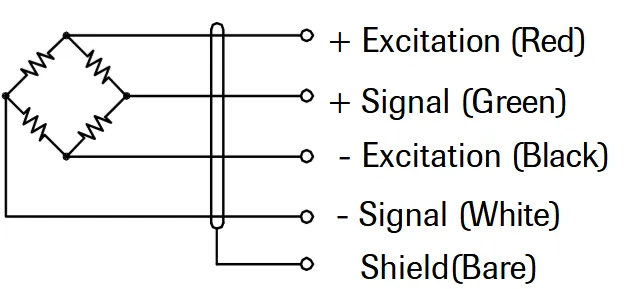

View or download the DEB016AS Double Ended Shear Beam Load Cell datasheet below for full technical specifications and wiring diagrams.

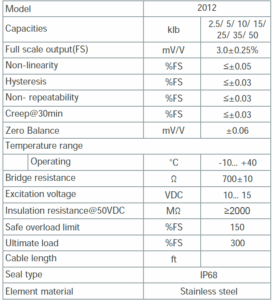

Features

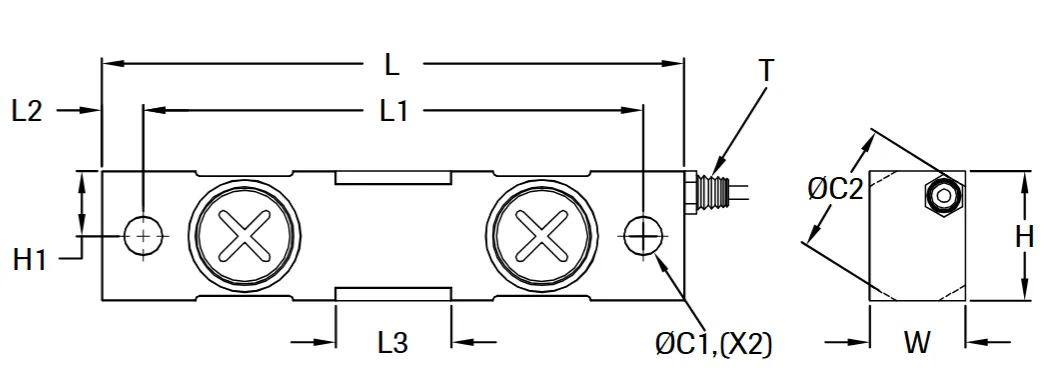

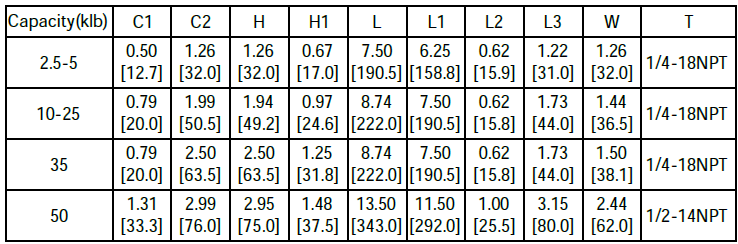

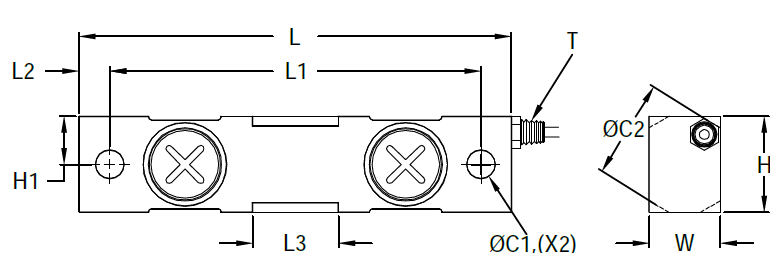

Capacity(klb)	C1	C2	H	H1	L	L1	L2	L3	W	Y
2.5-5	0.50 [12.7]	1.26 [32.0]	1.26 [32.0]	0.67 [17.0]	7.50 [190.5]	6.25 [158.8]	0.62 [15.9]	1.22 [31.0]	1.26 [32.0]	1/4-18NPT
10-25	0.79 [20.0]	1.99 [50.5]	1.94 [49.2]	0.97 [24.6]	8.74 [222.0]	7.50 [190.5]	0.62 [15.8]	1.73 [44.0]	1.44 [36.5]	1/4-18NPT
35	0.79 [20.0]	2.50 [63.5]	2.50 [63.5]	1.25 [31.8]	8.74 [222.0]	7.50 [190.5]	0.62 [15.8]	1.73 [44.0]	1.50 [38.1]	1/4-18NPT
50	1.31 [33.3]	2.99 [76.0]	2.95 [75.0]	1.48 [37.5]	13.50 [343.0]	11.50 [292.0]	1.00 [25.5]	3.15 [80.0]	2.44 [62.0]	1/2-14NPT

Cable: 4-Conductor cable.
