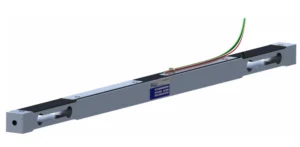

Double ended beam DEBB
Get info

Double ended beam DEBB

Capacity: 25 - 1000lbs

DEBB is a unique load cell design concept which simplifies the mounting of the load cell and can reduce the complexity of your assembly.



Features of Double ended beam DEBB

  • Capacities from 25 to 1000lbs
  • Anodized aluminum construction
  • Environmental protection IP67

Applications

  • Hospital bed scales
  • Hopper scales
  • Bin weighing

Options

  • Shielded cable
  • Cable with connectors
  • Cable length is customized

technical details of double ended beam DEBB

Outline Dimensions

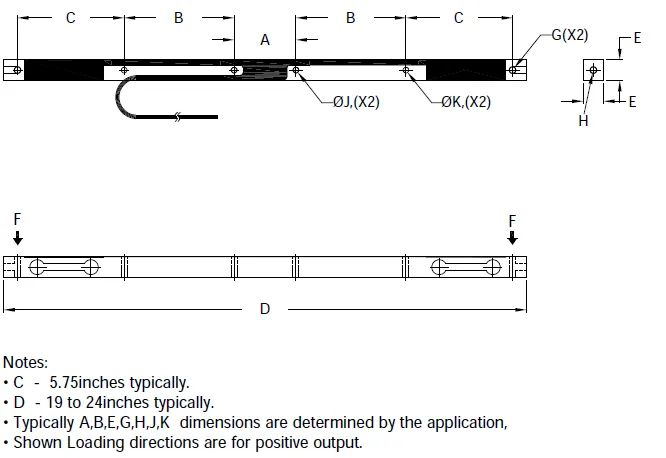

DEBB Double Ended Beam outline dimensions

DEBB Double Ended Beam wiring

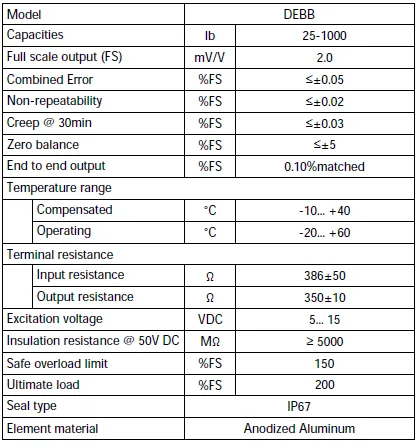

DEBB Double Ended Beam specification
