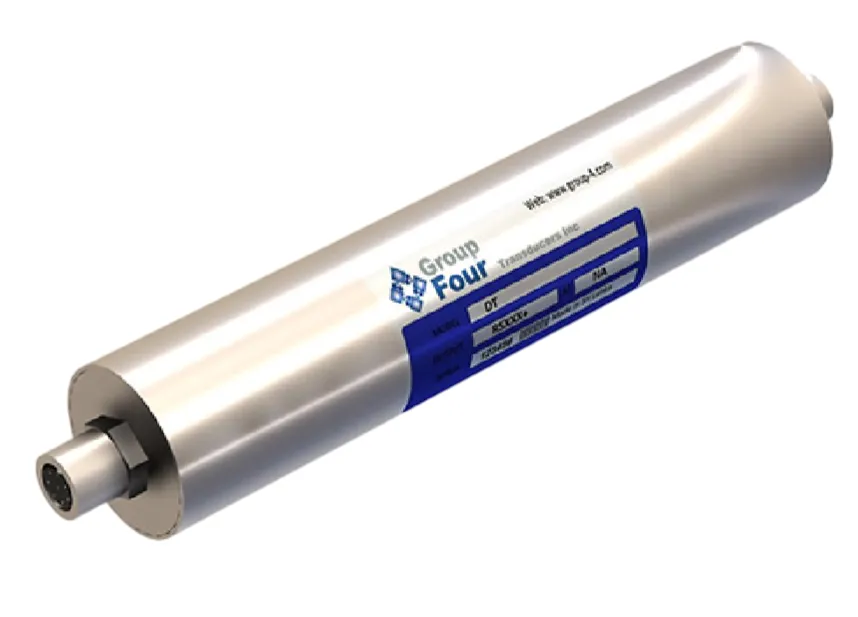

DT-GEN/A Digital Tube

Capacity: Unlimited

Group Four Transducers introduces your key to the digital world. Group Four’s innovative Digital Tube technology enables you to convert any passive transducer into digital one. Ease of system integration with RS232+CAN open or RS485+Rs422 communication interface, simplifies connection to your PC, PLC or HMI.



Features

  • Analog Loadcell Capacity: No limit
  • Input: -3.3 to +3.3 mV/V analog signal
  • Stainless steel construction
  • Environmental protection IP69
  • AD conversion rate up to 1200upd/Sec
  • Free professional software to set up digital tube

applications

  • All types of analog load cells
  • Miniature load cells like button type/donut type
  • Weighbridge load cells

options

  • Communication interface
  • Gen (CAN + RS232)
  • A (RS485 + RS422)
  • Load cells can be supplied with calibration certificates as per ASTM E74

technical details of DT-GEN/A Digital Tube

Outline Dimensions

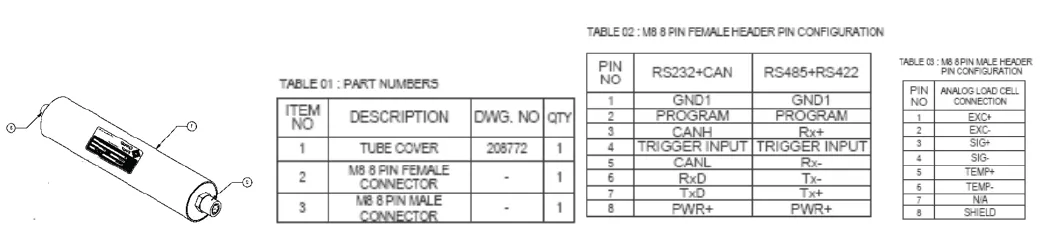

DT-GEN A Digital Tube outline dimensions DT-GEN A Digital Tube outline dimensions

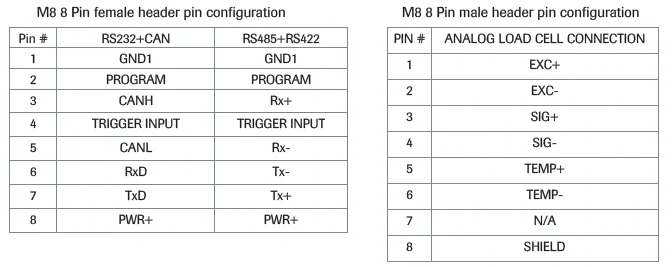

DT-GEN A Digital Tube pin configuration

DT-GEN A Digital Tube specification
