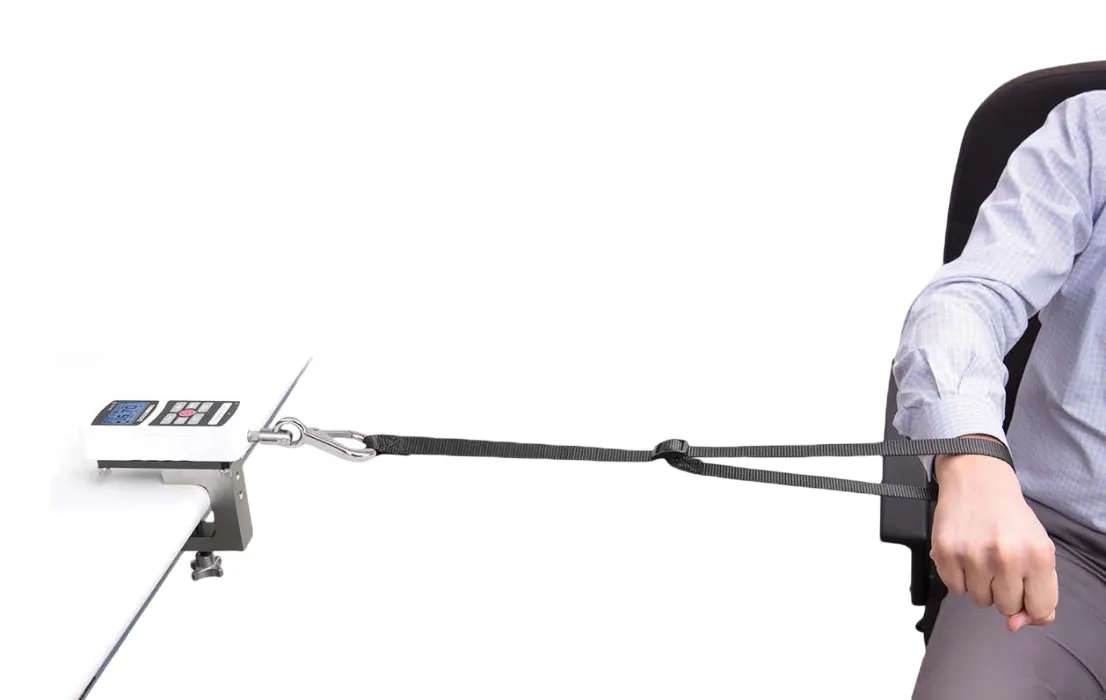

EKM5-200 Myometer Kit
Capacity: 200 lbf (1000N)
The EKM5-200 is a myometer kit for a wide range of strength assessments and ergonomics studies using measurement of push and pull forces.
Below you can view or download the datasheet of EKM5-200 Myometer Kit
Features
- Capacity 200lbF (1000N) force
- Series 5 force gauge
- Accuracy: +/-0.1% full scale
- Sampling rate: 7000Hz
- USB, RS-232 and analog output
- MESUR lite data collection software
- Displays real time, force reading, peak force and pass fail indicators
- Load cell shaft my be oriented in the up or down position
Applications of EKM5-200 Myometer Kit
- Push & pull force measurement application
- Strength assessment
- Ergonomic studies
Specifications
| Model | EKM5-200 | |
|---|---|---|
| Capacity | LBF (N) | 200 (1000) |
| Sampling Rate | Hz | 7000 |
| Power | AC or rechargeable battery | |
| Note: Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low | ||
| Outputs | USB, RS232, Analog | |
| Settings | High/low limit indicators for pass/fail/minimum force testing | |
| Included with kit | Carrying case, M5-200 advanced force gauge, tabletop mounting kit for force gauge (for vertical or horizontal orien- tations) Adjustable length loop strap, clevis and clasp hook attachments, AC adapter/charger, MESURE lite data collection software, USB cable, NIST-traceable certificate of calibration with data | |
FORCE GAUGE CAPACITY AND RESOLUTION
| IbF | ozF | KgF | N | kN |
|---|---|---|---|---|
| 200×0.05 | 3200×1 | 100×0.02 | 1000×0.2 | 1×0.0002 |
Part Numbers
| Model | Description |
|---|---|
| EKM5-200 | Myometer kit, 110V |
| EKM5-200E | Myometer kit, 220V, European plug |
| EKM5-200U | Myometer kit, 220V, UK plug |
| EKM50299V | Australian plug |
