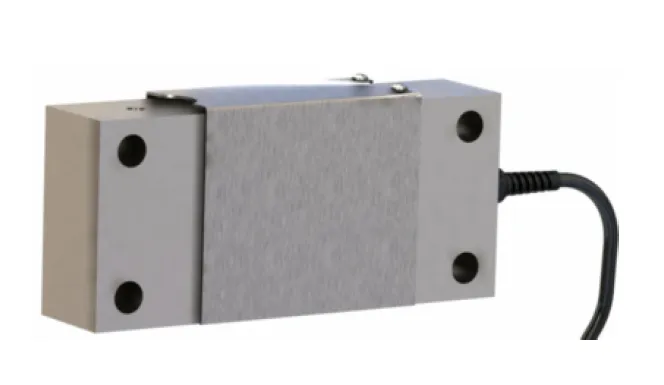

FLS (4041) Stainless Steel Single Point Load Cell IP67
IMPERIAL
125, 250 lb
METRIC
56.7 – 113.3 kg
The substantial size, stainless steel construction, and protective cover were specifically designed for harsh, abusive environments. The location of the mounting holes allows for scale frame mounting that provides additional side load protection.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacities 125lb, 250lb
- Environmental Protection IP67
Applications
- Bench scales, Food processing systems
Options
- mV/V/Ω Calibration matching

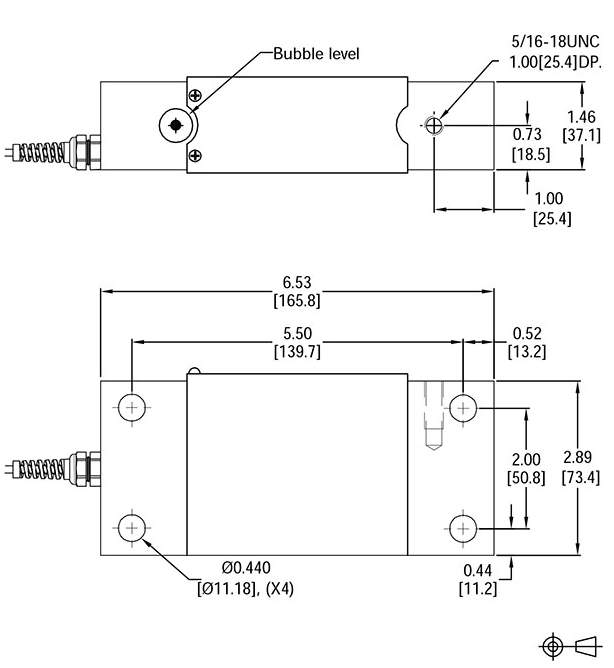

Outline Dimensions
Wiring
Specifications
| Model | 4041 | ||
|---|---|---|---|
| Capacities | lb | 125 / 250 | |
| Full scale output(FS) | mV/V | 0.998~1.002 | |
| Calibration in mV/V/Ω | % | See options | |
| Combined error | %FS | ≤±0.05 | |
| Non-linearity | %FS | ≤±0.02 | |
| Hysteresis | %FS | ≤±0.03 | |
| Non-repeatability | %FS | ≤±0.03 | |
| Creep @ 30min | %FS | ≤±0.03 | |
| Zero balance | %FS | ≤±2 | |
| Temperature range | |||
| Operating | °C | -20 … +60 | |
| Terminal resistance | |||
| Input resistance | Ω | 450±100 | |
| Output resistance | Ω | 350±5 | |
| Excitation voltage | VDC | 10 … 15 | |
| Insulation resistance @ 50V DC | MΩ | ≥3000 | |
| Safe overload limit | %FS | 150 | |
| Cable length | ft | 10 | |
| Seal type | IP67 | ||
| Element material | Stainless steel | ||
