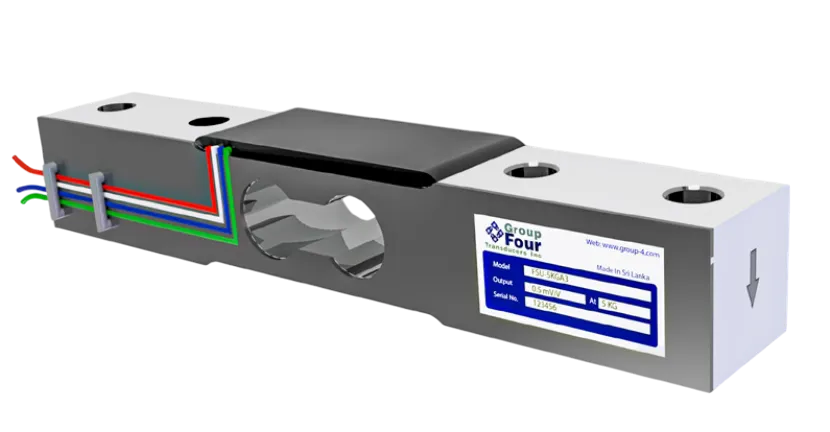

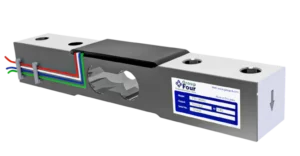

FSU Anodized Aluminum Single Point Load Cell
Capacity: 1, 2, 5kg
The type FSU is a low capacity low form factor single point load cell useful in medical scales, postal scales and industrial applications.
Below you can view or download the datasheet of FSU Anodized Aluminum Single Point Load Cell.
Features
- Capacity 1, 2, 5kg
- Anodized aluminum construction
- Environmental protection IP67
- Low profile design
Applications of FSU Anodized Aluminum Single Point Load Cell
- Compact scales
- Special applications in medical
- Retail & counting scales
- Postal scales

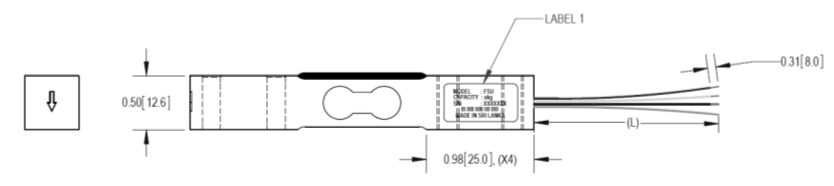

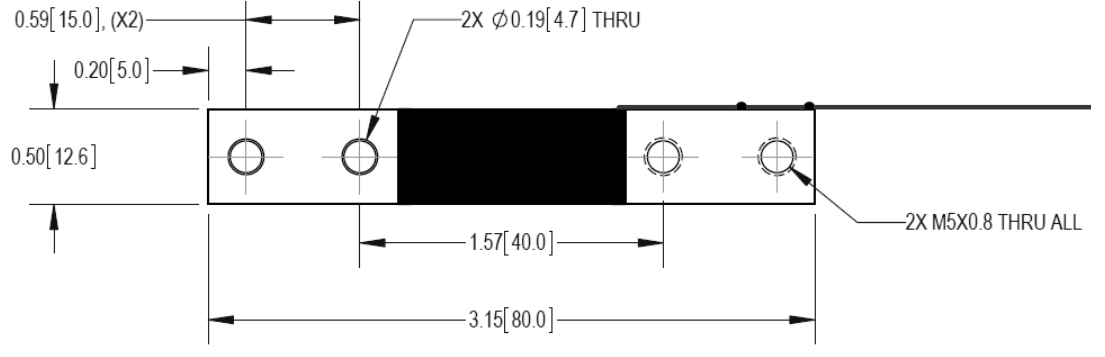

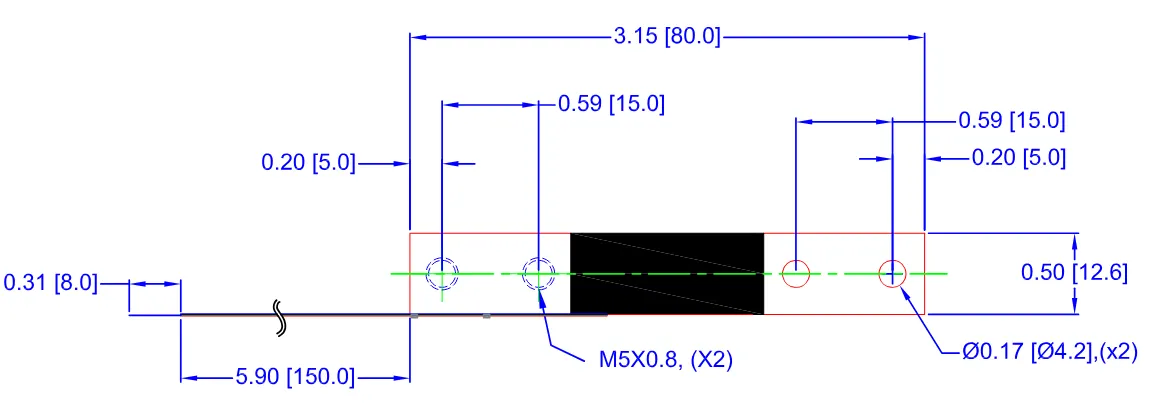

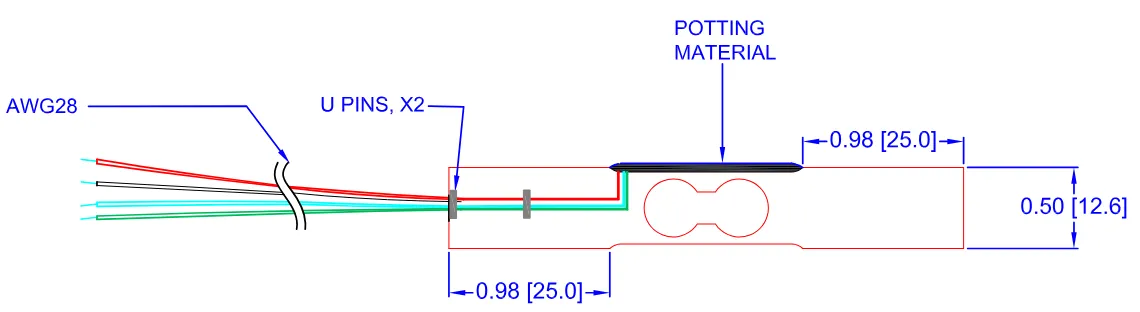

Outline Dimensions

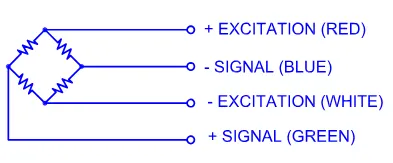

Wiring
Specifications of FSU Anodized Aluminum Single Point Load Cell
| Model | FSU | |
|---|---|---|
| Capacities | kg | 1, 2, 5 |
| Full scale output (FS) | mV/V | 0.5±0,05% |
| Non-linearity | %FS | ≤±0.1 |
| Hysteresis | %FS | ≤±0.1 |
| Repeatability | %FS | ≤±0.1 |
| Zero Balance | %FS | <±5 |
| Creep @ 1min | %FS | ≤±0.15 |
| Creep recovery @ 1 min | %FS | ≤±0.15 |
| OCLS | ||
| Max Platform Size | mm | 150×150 |
| Max Off Center Distance | mm | 50 |
| OCLS Error | %FS | ≤±0.80 |
| Temperature Effect | ||
| Output | %FS/10°C | ≤±1 |
| Zero | %FS/10°C | ≤±1 |
| Temperature Range | ||
| Compensated | °C | -10… +40 |
| Operating | °C | -20… +50 |
| Temperature resistance | ||
| Input | Ω | 350±40 |
| Output resistance | Ω | 350±40 |
| Excitation voltage | VDC | 10 ~ 15 |
| Insulation resistance @50VDC | M Ω | >1000 |
| Safe overload limit | %FS | 100 |
| Ultimate Load | %FS | 300 |
| Cable length | ft | 158 |
| Element material | Anodized Aluminum | |
| Seal type | IP67 | |
Part Numbers
| Capacity (kg) | Part Number |
|---|---|
| 1 | FSU-1KGA3 |
| 2 | FSU-2KGA3 |
| 5 | FSU-3KGA3 |
