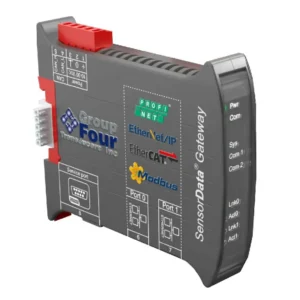

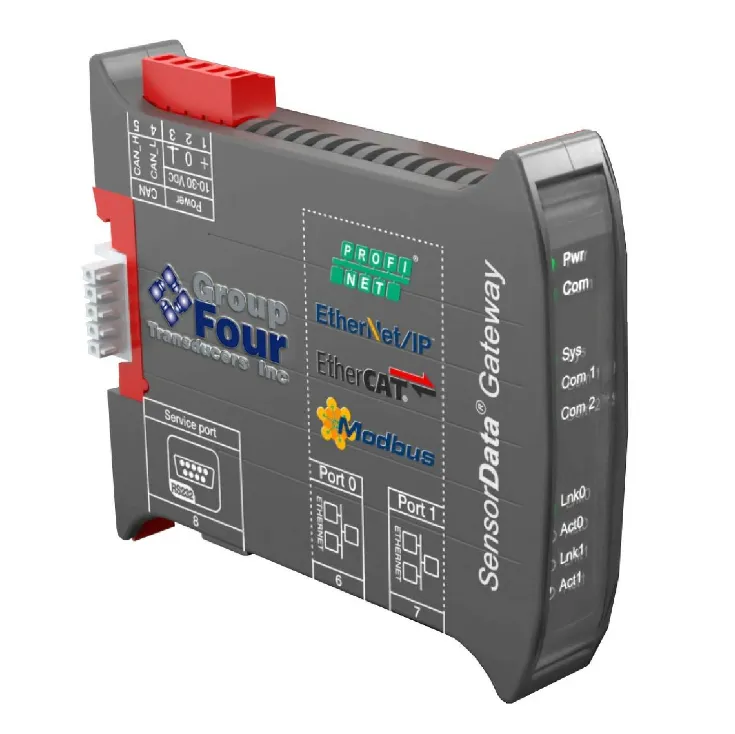

Gateway EGM187.1
The EGM187.1 universal Ethernet gateway is used for directly interfacing digital load cells via Ethernet/IP.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Two flexible Ethernet ports for fields communication
- Fieldbuses (optional) profit, ethernet/IP, etherCAT, modbus-TCP, ASCII
- Connection up to 32 digital load cells
- RS232 service port allowed parallel
- Space saving DIN rail mounting
- Free DOP4 software for easy configuration of devices
Ideal Applications
- Advanced weighing systems with Ethernet/IP communications PLCS

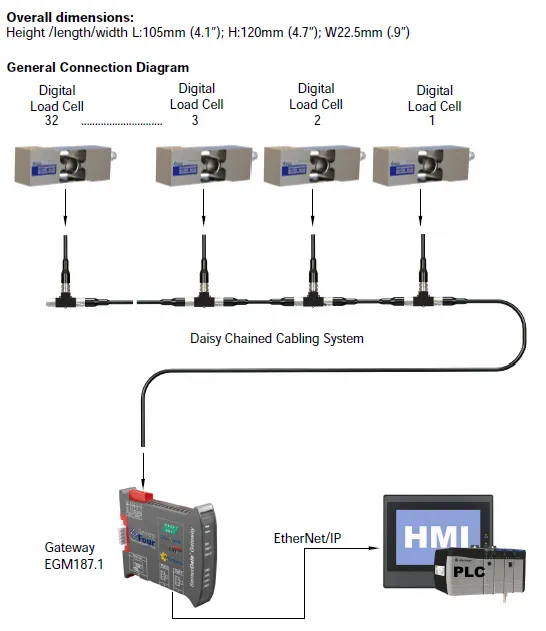

Outline Dimensions

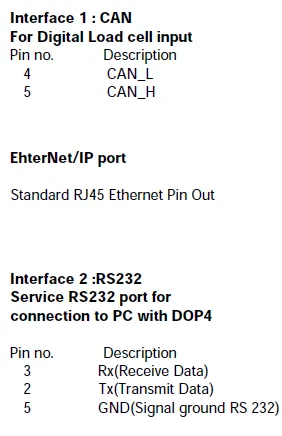

Pin Configuration
Specifications
