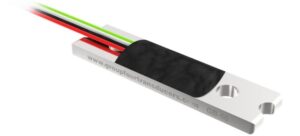

GB50 (8013) Planar Beam Load Cell IP67

Capacity: 50lb

The GB50 is a rugged planar beam load cell with exceptional long-term stability. This sophisticated load cell offers consistent, high quality performance, at very affordable prices. With its simple beam mounting configuration, this load cell can be used to electronically measure force or displacement in a wide variety of applications. The GB50 may be used for applications which includes medical instrumentation, spring testing equipment, robotics food dispensing equipment.



Features

  • 50lb capacity
  • Stainless steel construction
  • Environmental protection IP67
  • Very low profile desing

applications

  • Compact scales
  • Special applications in medical instrumentation
  • Spring testing equipment
  • Robotics
  • Food dispensing
  • Retail & counting scales

technical details of GB50 (8013) Planar Beam

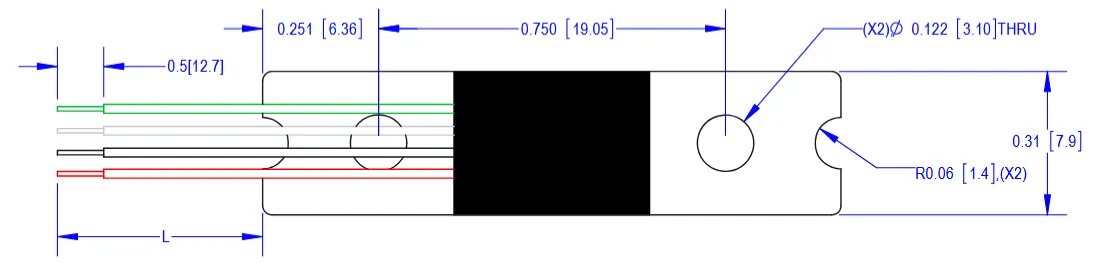

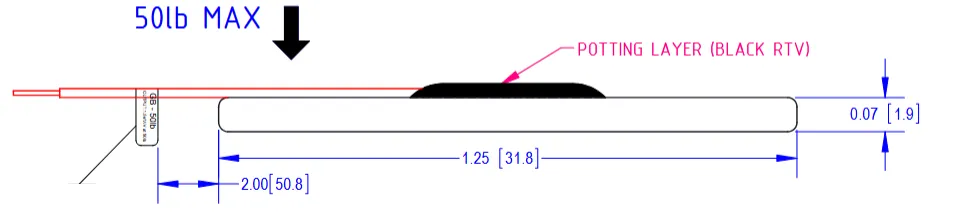

Outline Dimensions

GB50 8013 Planar Beam Load Cell IP67 outline dimensions

GB50 8013 Planar Beam Load Cell IP67 wiring

GB50 8013 Planar Beam Load Cell IP67 specification

GB50 8013 Planar Beam Load Cell IP67 part numbers
