GBLZ (5034) Stainless Steel Button Load Cell
IMPERIAL
750 – 1,000 lb
METRIC
340 – 453 kg
The GBLZ is a stainless steel button type load cell for force and weight measurement.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacities 750lb and 1000lb
- Stainless steel construction
- Environmental protection IP67
Applications
- Force and weight measurement

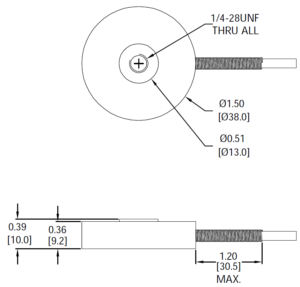

Outline Dimensions

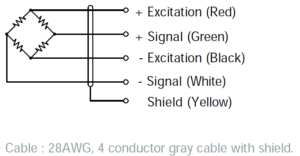

Wiring

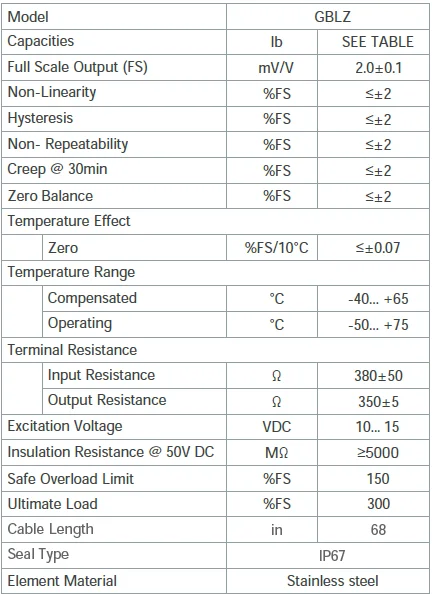

Specifications
| Model | GBLZ | ||
|---|---|---|---|
| Capacities | lb | See table | |
| Full Scale Output (FS) | mV/V | 2.0±0.1 | |
| Non-linearity | %FS | ≤±2 | |
| Hysteresis | %FS | ≤±2 | |
| Non-repeatability | %FS | ≤±2 | |
| Creep @30min | %FS | ≤±2 | |
| Zero Balance | %FS | ≤±2 | |
| Temperature Effect | |||
| Zero | %FS/10ºC | ≤±0.07 | |
| Temperature Range | |||
| Compensated | ºC | -40… +65 | |
| Operating | ºC | -50… +75 | |
| Terminal Resistance | |||
| Input resistance | Ω | 380±50 | |
| Output resistance | Ω | 350±5 | |
| Excitation Voltage | VDC | 10 – 15 | |
| Insulation Resistance @50VDC | MΩ | ≥5000 | |
| Safe Overload Limit | %FS | 150 | |
| Ultimate Load | %FS | 300 | |
| Cable Length | in | 68 | |
| Seal type | IP67 | ||
| Element Material | Stainless steel | ||
Part Numbers
| Capacity (lb) | Part Number |
|---|---|
| 750 | 5034-001-00 |
| 1000 | 5034-002-00 |
