GLDM64.1 High Speed High Accuracy Load Cell Amplifier System

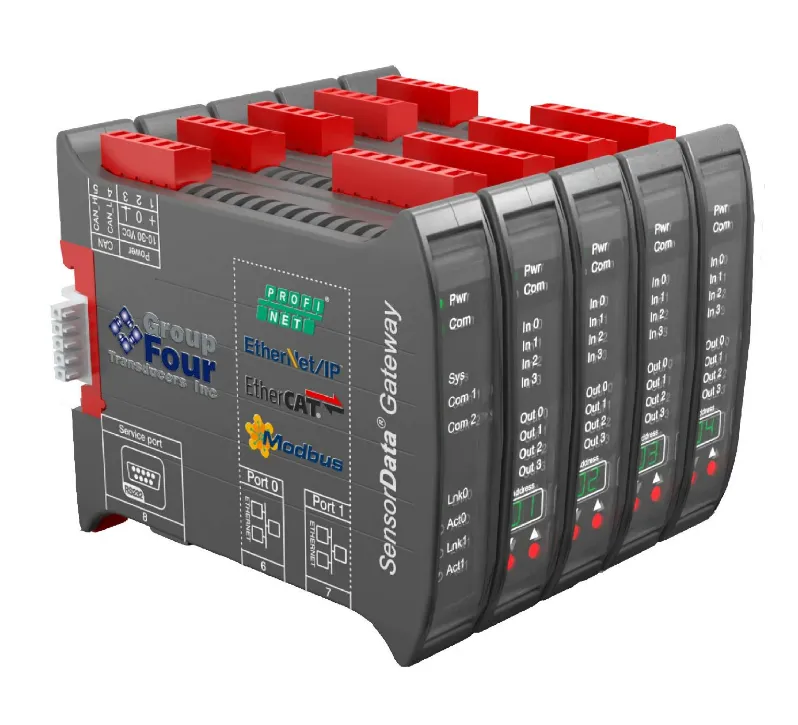

The type GLDM64.1 is a multichannel load cell amplifier system, that when used with the EGM187.1 gateway module can be interfaced with EtherNet/IP network systems.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Precise load cell amplifier with an accuracy of 0.001%
- CAN interface
- Full duplex RS232 interface
- 1200 measurements per second
- Up to 32 channels in the bussystem
- Space saving DIN rail mounting
- Free DOP4 software for easy configuration of devices
Ideal Applications
- Advanced weighing system with EtherNet/IP communication PLCs
Outline Dimensions

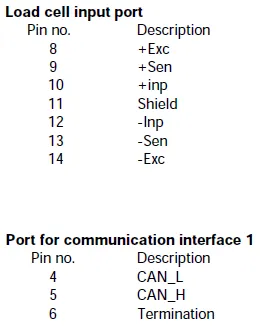

Pin Configuration

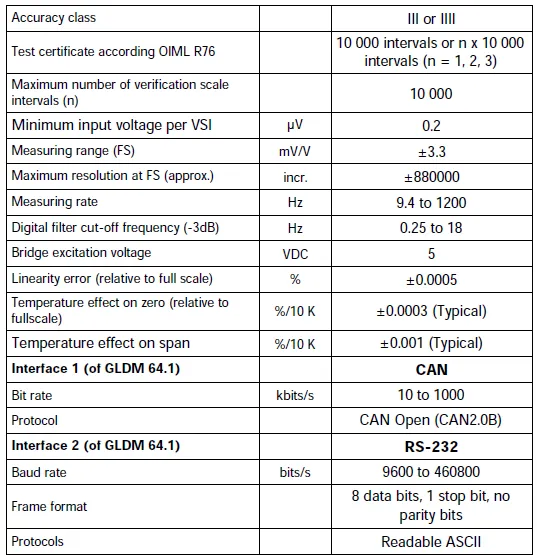

Specifications
