GLDU 78.1 Load Cell Digitalizer

GLDU 78.1 converts the load cell signal to digital format for reliable, precision weighing operations at high speed.



Features

  • Drives up to four 350 ohm load cells
  • A library of included firmware for check weighing, grading or filling applications
  • RS 422/485 full duplex interface in 32 node networks or point to point
  • Offers dual logic outputs and dual logic inputs for the control of filling and sorting operations
  • A graphic presentation, analysis and set up PC program is available

applications

  • Especially designed for dynamic weighing such as check-weighing and filling systems.
  • All LDU’s are designed to be embedded into customers’ equipment, to be plugged into a Unit Adaptor (Accessory) or otherwise integrated with a hosting device.

options

  • Enclosures: a selection of IP65 plastic enclosures are available for 1; 2 or 4 LDU’s.
  • Extensions: a selection of Unit Adaptors provide screw terminals, fuse protection, DIN TS35 rail mounting, RS232 converters and various operating- and connection facilities. The Unit Adaptors can be custom made to meet special requirements.



technical details of GLDU 78.1 Load Cell Digitizer

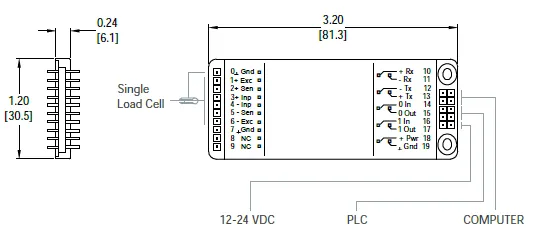

Outline Dimensions

GLDU 78.1 Load Cell Digitizer outline dimensions

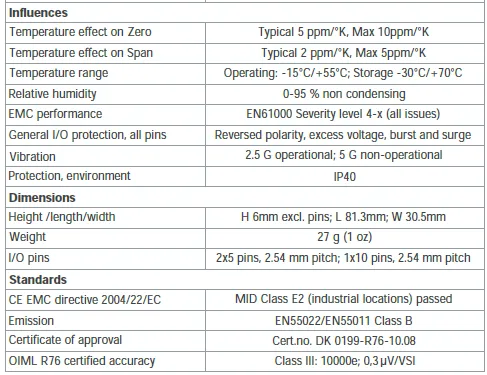

GLDU 78.1 Load Cell Digitizer specification GLDU 78.1 Load Cell Digitizer specification
