GR300 Digital Weight Indicator: Reliable Industrial Scale Readout

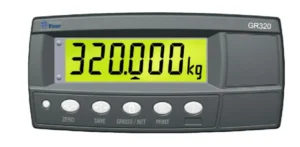

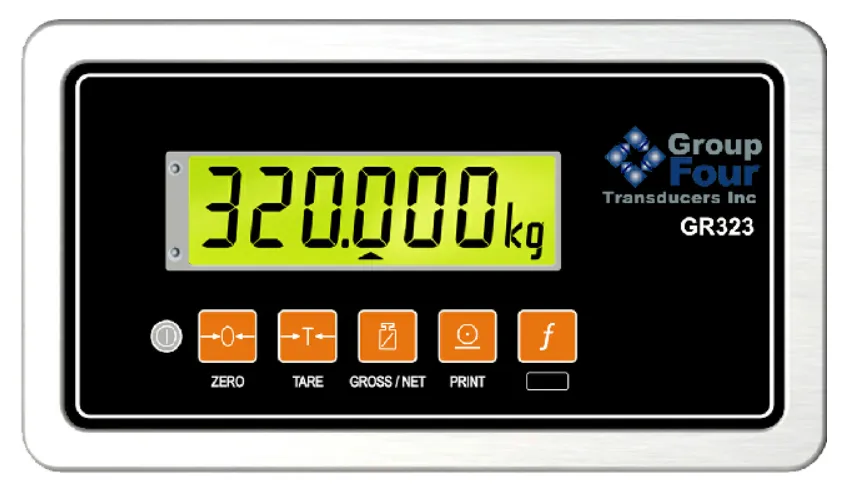

The GR300 Digital Weight Indicator from the GR Series offers a professional-grade solution for weighing system calibration and real-time data monitoring. Designed for rugged environments, this industrial scale indicator provides a seamless operator interface for essential scale functions, including “zeroing” and “taring.”
Whether you are looking for a standalone digital weight display or a component for a complex OEM integration, the GR300 delivers accuracy and durability in a compact form factor. View or download the GR300 Digital Weight Indicator below for full technical specifications and wiring diagrams.

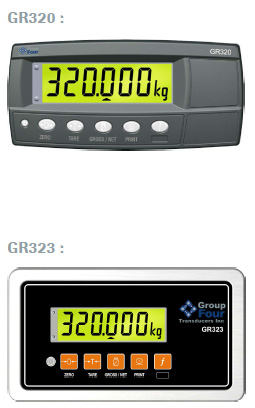

Key Features of the GR300 Digital Weight Indicator Series
Our GR300 weighing indicator is engineered to perform in demanding conditions with the following specifications:
- Durable Housing Options: Choose between a tough, impact-resistant ABS housing or a heavy-duty Stainless Steel enclosure for washdown environments.
- Flexible Power Supply: Features AC, DC, and rechargeable NiMH battery options, ensuring uninterrupted operation in mobile or remote locations.
- High-Visibility LCD: A 20mm (0.8in) LCD display with LED backlight provides clear weight readings even in low-light industrial settings.
- Versatile Mounting: Multiple mounting options allow for easy installation on benches, walls, or vehicle dashboards.
- Advanced Connectivity: Includes an Opto-link connector for secure data transfer and simple system configuration.
Industrial Applications for Digital Weight Indicators
The GR300 is a versatile weight controller commonly used across various sectors in the USA, including:
- Mobile Weighing: Ideal for forklift scales, onboard truck cab displays, and portable crane scales.
- Platform Scales: A reliable interface for industrial floor scales and bench weighing systems.
- OEM Applications: Easily integrated into custom machinery and automated weighing solutions.
- Material Handling: Streamlines logistics by providing fast, accurate weight data at the point of lifting.

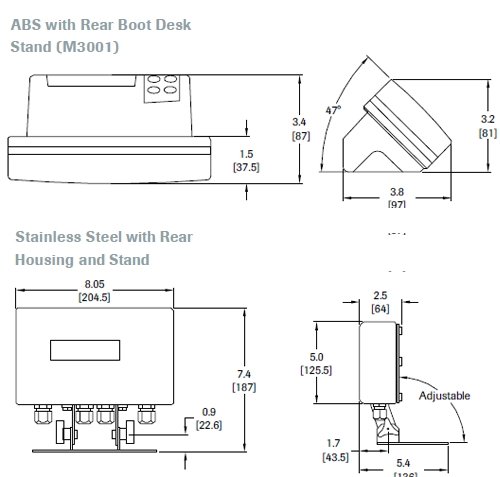

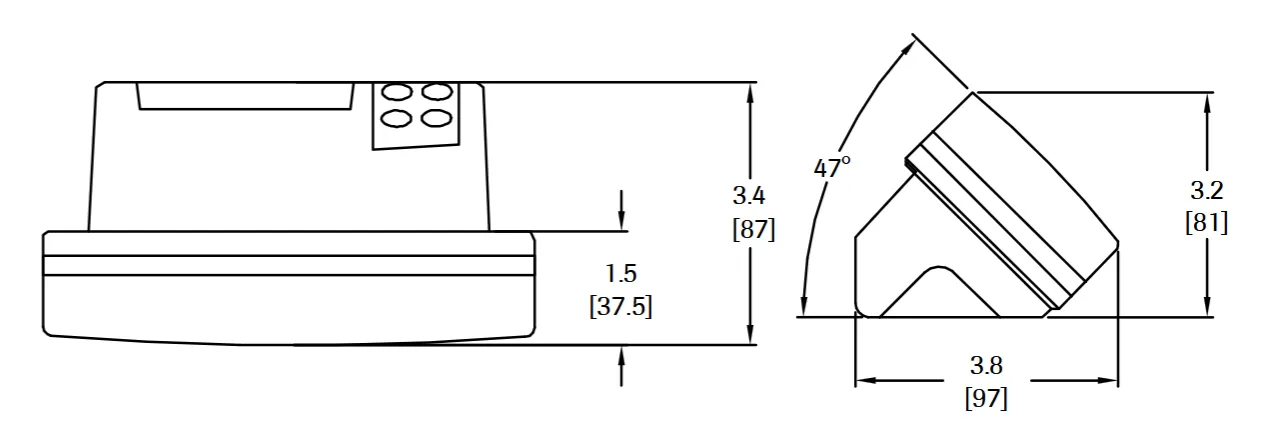

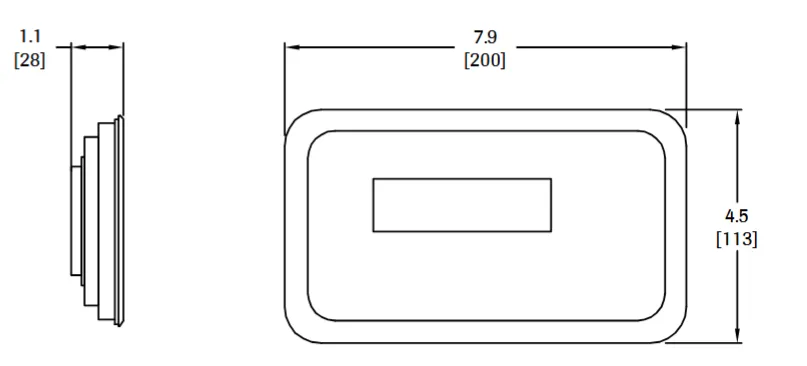

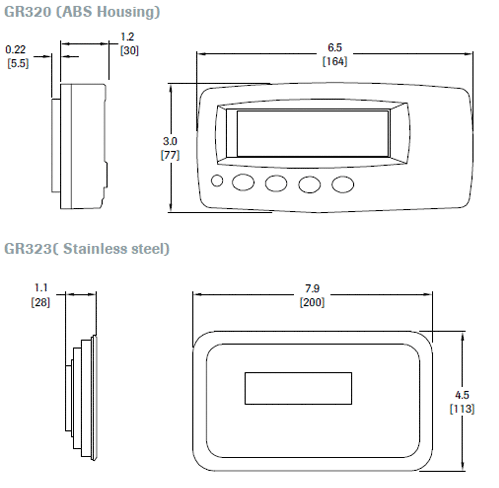

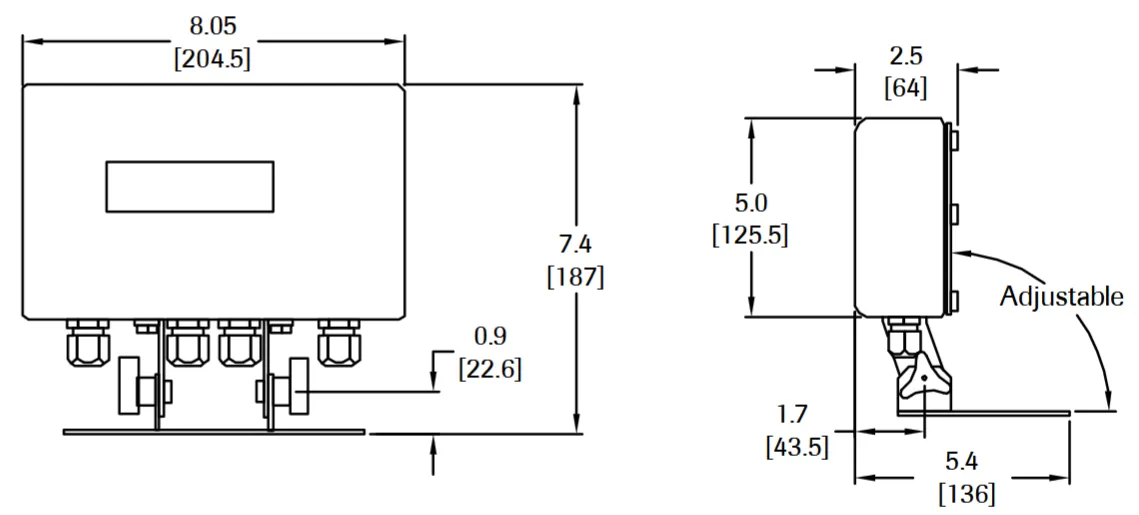

Outline Dimensions

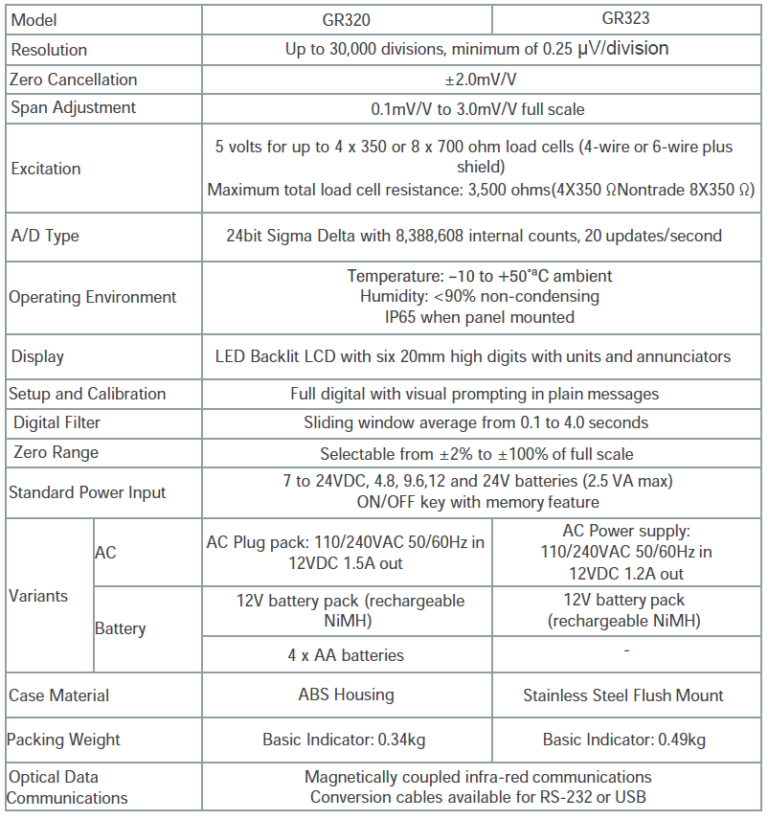

Specifications
| Model | GR320 | GR323 | |
|---|---|---|---|
| Resolution | Up to 30,000 divisions, minimum of 0.25 μV/division | ||
| Zero Cancellation | ±2.0mV/V | ||
| Span Adjustment | 0.1mV/V to 3.0mV/V full scale | ||
| Excitation | 5 volts for up to 4 x 350 or 8 x 700 ohm load cells (4-wire or 6-wire plus shield) Maximum total load cell resistance: 3,500 ohms(4X350 ΩNontrade 8X350 Ω | ||
| A/D Type | 24bit Sigma Delta with 8,388,608 internal counts, 20 updates/second | ||
| Operating Environment | Temperature: –10 to +50˚ªC ambient Humidity: <90% non-condensing IP65 when panel mounted | ||
| Display | LED Backlit LCD with six 20mm high digits with units and annunciators | ||
| Setup and Calibration | Full digital with visual prompting in plain messages | ||
| Digital Filter | Sliding window average from 0.1 to 4.0 seconds | ||
| Zero Range | Selectable from ±2% to ±100% of full scale | ||
| Standard Power Input | 7 to 24VDC, 4.8, 9.6,12 and 24V batteries (2.5 VA max) ON/OFF key with memory feature | ||
| Variants | AC | AC Plug pack: 110/240VAC 50/60Hz in 12VDC 1.5A out | AC Power supply: 110/240VAC 50/60Hz in 12VDC 1.2A out |
| Battery | 12V battery pack (rechargeable NiMH) | 12V battery pack(rechargeable NiMH) | |
| 4 x AA batteries | – | ||
| Case Material | ABS Housing | Stainless Steel Flush Mount | |
| Packing Weight | Basic Indicator: 0.34kg | Basic Indicator: 0.49kg | |
| Optical Data Communications | Magnetically coupled infra-red communications Conversion cables available for RS-232 or USB | ||
Advanced Tank Weighing & Process Control Solutions
Tank weighing
Tank weighing from a single tank to a tank farm can be handled with GR320 & GR323. The R320 and R323 provide basic weighing functionality at the tank. The two high current isolated outputs can provide local control which could be used for level control for example. The communications port can be used to work back to a PC or in a larger installation multiple indicators can be configured in a ring network, saving on cabling.
Ring Networking
The R320 and R323 support can be configured into a ring network back to a computer using R232.
- Connect up to 31xR320/R323s into a ring network.
- Simple setup with the R300 Viewer.
Benefits:
- Uses only one communication port on the computer.
- Significant savings on communications cabling.
Ideal for:
- Tank farms.
- Multiple silo and bin weighing applications.
- Multiple scale applications.
- Process Control applications.
