GSC (3010) Nickel Plated S Beam Load Cell

IMPERIAL

100 lb – 2.5 klb

METRIC

45.3 – 1,134 kg

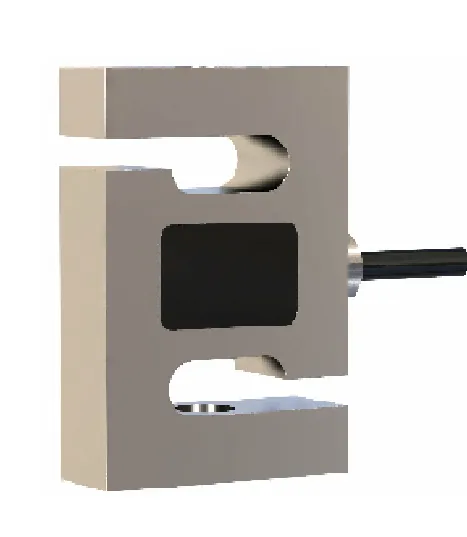

The GSC series s-beam load cell is ideal for measurement of both tension and compression forces. This load cell is most commonly found in bin and hopper weighing as well as test and measurement devices.

View or download the datasheet below for full technical specifications and wiring diagrams.

Get a Quote Download GSC 3010 datasheet

Features

Wide range of capacities from 100lb to 2.5klb
Plated steel construction
Environmentaly protected to IP67

Applications

Crane scales and hanging scales
Small hopper and tank weighing systems
Hybrid systems with lever work
Belt weighers and other load carriers with multiple load cells

Options

mV/V/Ω calibration to ±0.05% for applications where multiple load cells are used.
GSC-SS : Stainless steel construction.
Optional built-in overload stop.
Metric version is available.

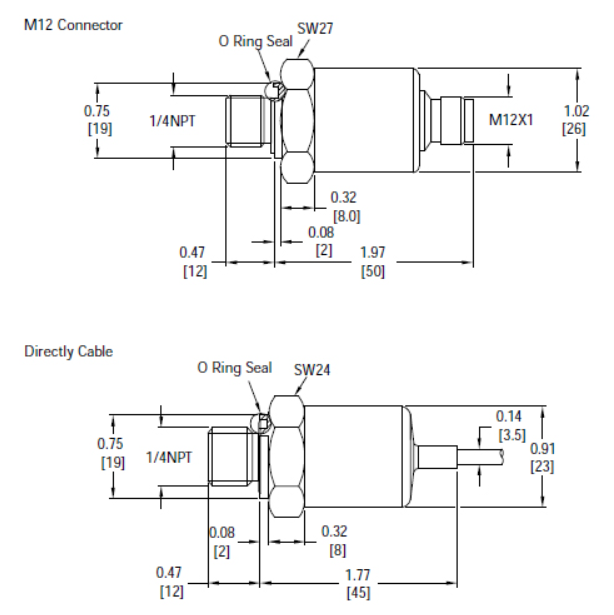

Outline Dimensions

Wiring

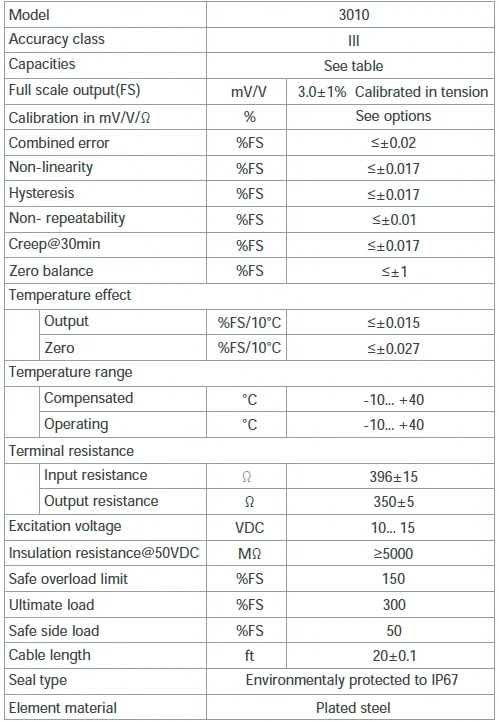

Specifications

Model		3010
Accuracy class		III
Capacities		lb	See table below
Full Scale Output (FS)		mV/V	3.0±1% Calibrated in tension
Calibration in mV/V/Ω		%	See options
Combined Error		%FS	≤±0.02
Non-linearity		%FS	≤±0.017
Hysteresis		%FS	≤±0.017
Non-repeatability		%FS	≤±0.01
Creep @30min		%FS	≤±0.017
Zero Balance		%FS	≤±1
Temperature Effect
	Output	%FS/10ºC	≤±0.015
	Zero	%FS/10ºC	≤±0.027
Temperature Range
	Compensated	ºC	-10… +40
	Operating	ºC	-10… +40
Terminal Resistance
	Input resistance	Ω	396±15
	Output resistance	Ω	350 ±5
Excitation Voltage		VDC	10 – 15
Insulation Resistance @50VDC		MΩ	≥5000
Safe Overload Limit		%FS	150
Ultimate Load		%FS	300
Safe side load		%FS	50
Cable Length		ft	20
Seal type		Environmentaly protected to IP67
Element Material		Plated steel

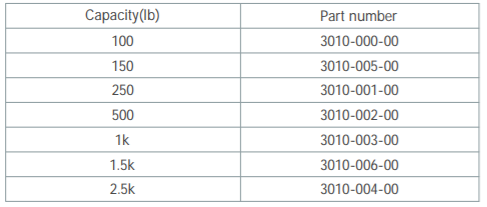

Part Numbers

Capacity(lb)	Part Number
100	3010-000-00
150	3010-005-00
250	3010-001-00
500	3010-002-00
1K	3010-003-00
1.5K	3010-006-00
2.5K	3010-004-00
