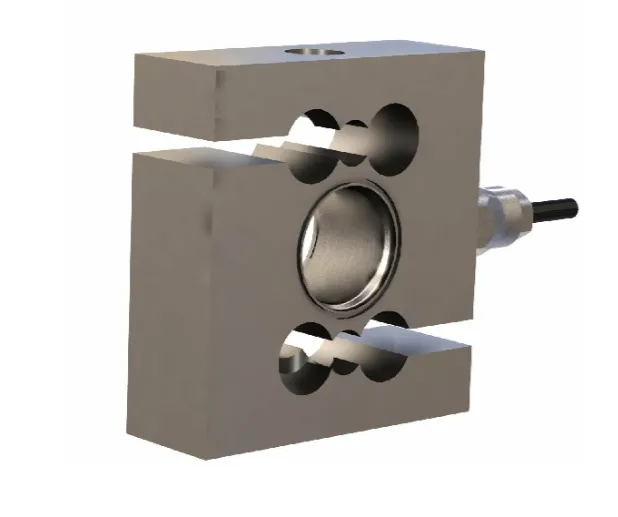

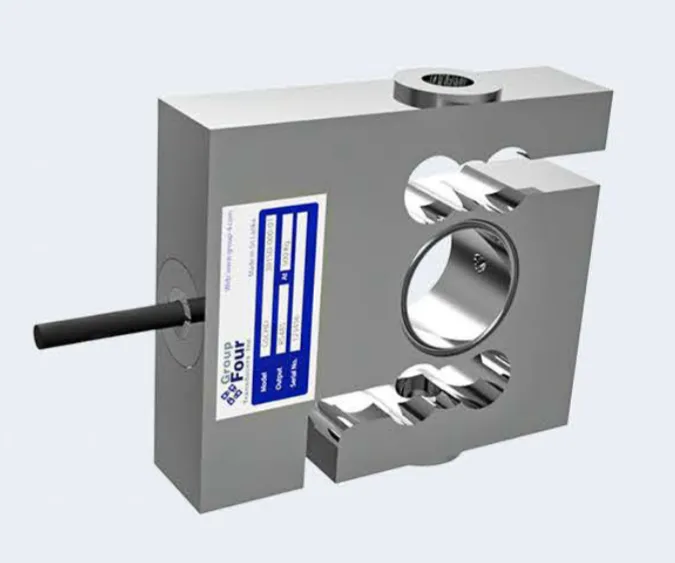

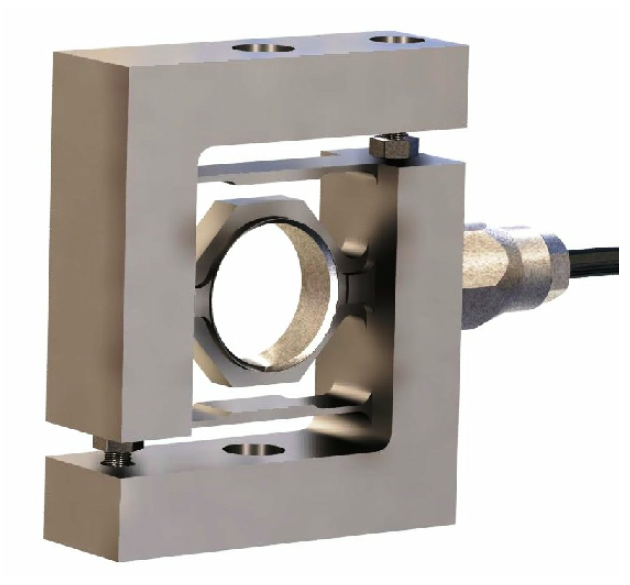

GSCHD (3015) Hermetically Sealed S Beam Load Cell

Capacity: 20 to 2000 kg

The 3015 is a hermetically sealed stainless steel load cell design for measuring tension or compression loads.

Below you can view or download the datasheet of GSCHD 3015 Hermetically Sealed S Beam Load Cellad Cell.

Features

Force measurement in material testing machines, cranes, lifts and other general tension applications

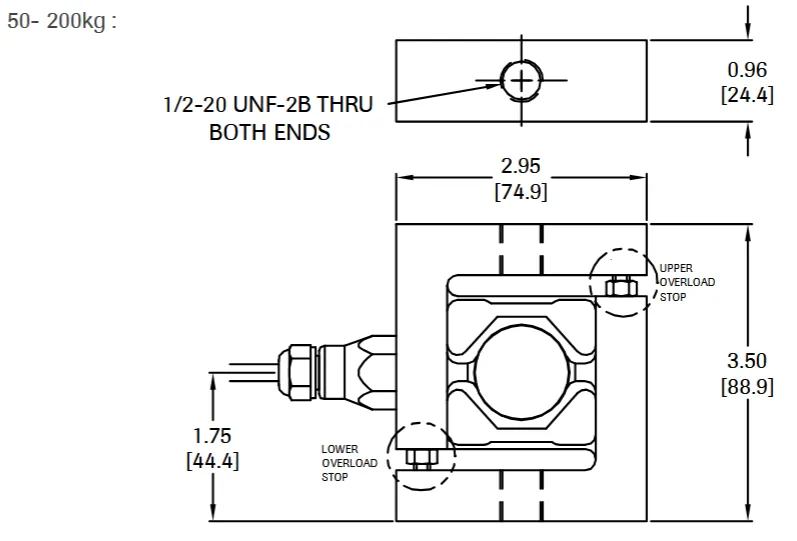

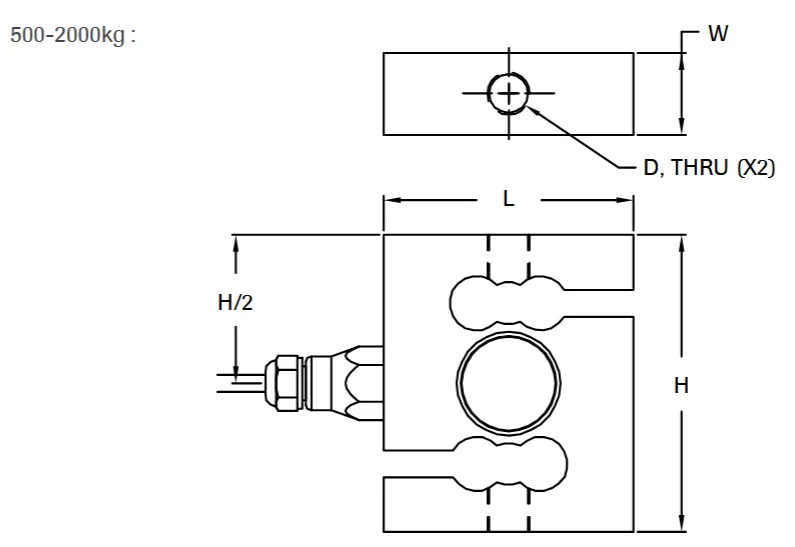

Capacity (kg)	H	L	W	THREAD D
500	3.50[88.9]	2.96[75.2]	0.96[24.4]	1/2-20 UNF
1000	3.60[91.4]	3.40[86.4]	1.18[30.0]	5/8-18 UNF
2000	3.60[91.4]	3.40[86.4]	1.18[30.0]	5/8-18 UNF

Cable: 24AWG, Foil shielded, 4 Conductor cable.

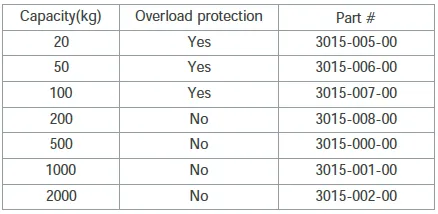

Model	GSCH
Capacities	kg	20 / 50 / 100 / 200	500 / 1000 / 2000
Full scale output (FS)	mV/V	2.00±0.1%
Calibration in mV/V/Ω	%	≤±0.05
Combined error	%FS	≤±0.03
Zero Balance	%FS	≤±5
Creep @ 5min	%FS	≤±0.03
Temperature Effect
Output	%FS/10°C	≤±0.014	≤±0.0137
Zero	%FS/10°C	≤±0.01
Temperature Range
Compensated	°C	-10… +40
Operating	°C	-20… +65
Temperature resistance
Input resistance	Ω	396±50	396±15
Output resistance	Ω	350±5
Excitation voltage	VDC	5 ~ 15
Insulation resistance @50VDC	MΩ	≥5000
Safe overload limit	%FS	200
Ultimate Load	%FS	300
Cable length	m	6
Element material	Stainless Steel
Seal type	28AWG 4 conductor foil shielded cable
Seal type	IP69

GSCHD 3015 Hermetically Sealed S Beam Load Cell dimensions and specifications subject to change without notice.
