Digital S Beam Load Cell GSCHD 3015D
IMPERIAL
110 lb – 1,1 klb
METRIC
50 – 500 kg

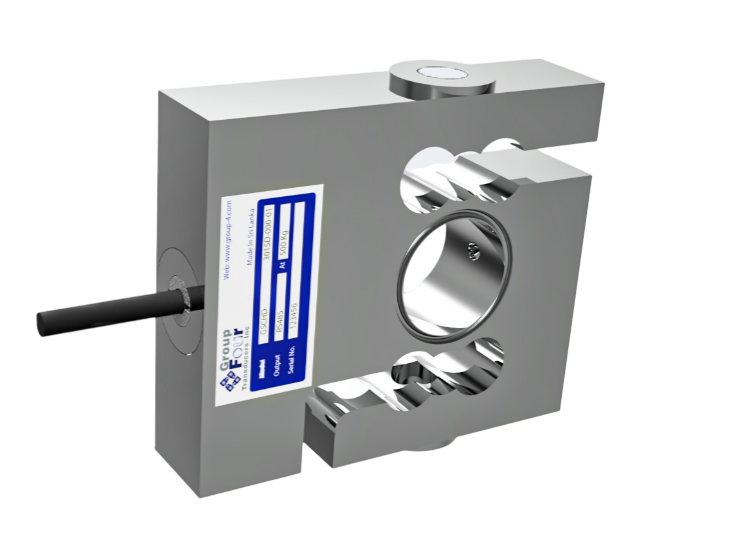

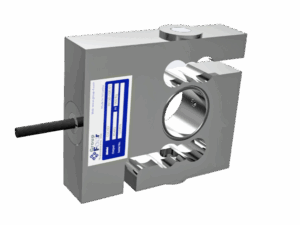

The GSCHD is a tension compression digital s beam load cell. Its application ranges from force measurement, weight measurement to testing machines including material testing stands.
View or download the datasheet below for full technical specifications and wiring diagrams.
Features
- Capacity: 50, 100, 250 & 500kgs
- Stainless steel construction
- Environmental protection IP69
- AD conversion rate up to 1200upd/sec
- Free PC based startup and evaluation software
Applications of Digital S Beam Load Cell GSCHD 3015D
- Force measurement
- Material testing machines
- Cranes
- Lifts
- General tension applications

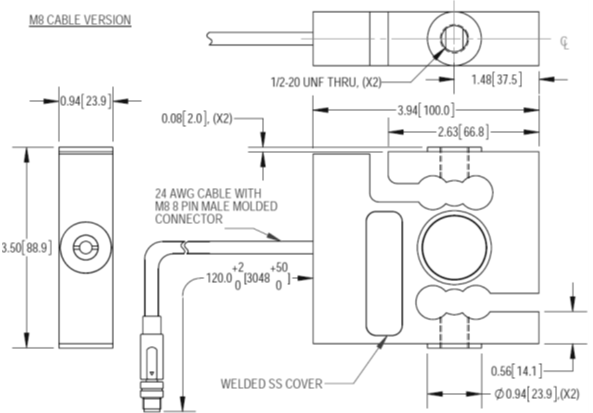

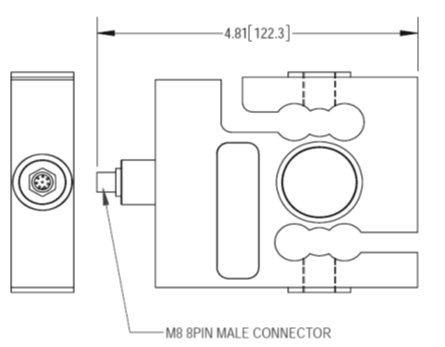

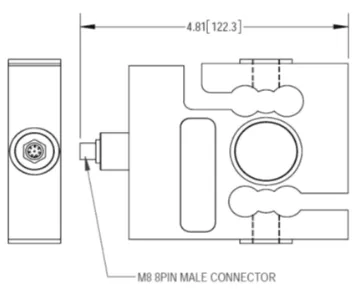

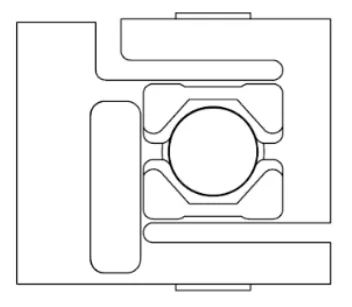

Outline Dimensions

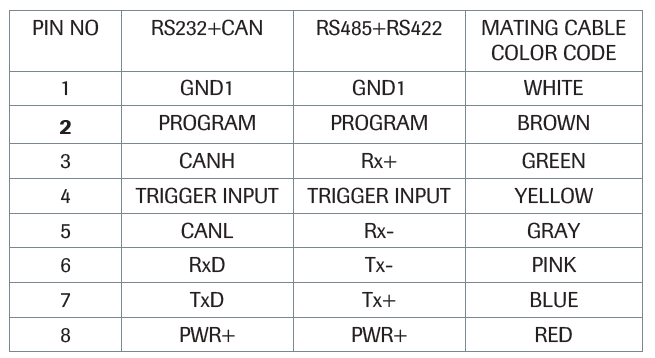

Wiring (Pin Configuration)
| PIN NO | RS232+CAN | RS485+RS422 | MATING CABLE COLOR CODE |
|---|---|---|---|
| 1 | GND1 | GND1 | WHITE |
| 2 | PROGRAM | PROGRAM | BROWN |
| 3 | CANH | Rx+ | GREEN |
| 4 | TRIGGER INPUT | TRIGGER INPUT | YELLOW |
| 5 | CANL | Rx- | GRAY |
| 6 | RxD | Tx- | PINK |
| 7 | TxD | Tx+ | BLUE |
| 8 | PWR+ | PWR+ | RED |

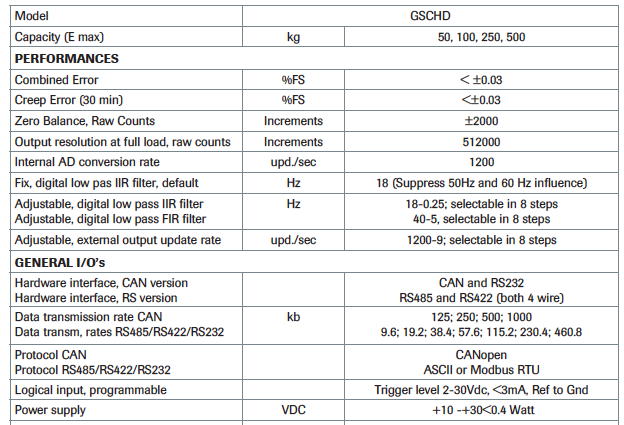

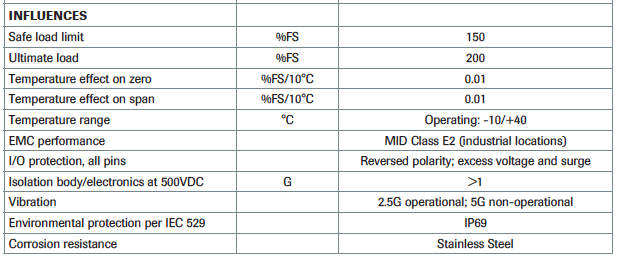

Specifications
| Model | GSCHD | ||
|---|---|---|---|
| Capacities (Emax) | kg | 50, 100, 250, 500 | |
| PERFORMANCES | |||
| Combined Error | %FS | <±0.03 | |
| Creep Error @ 30min | %FS | <±0.03 | |
| Zero Balance, raw counts | increments | ±2000 | |
| Output resolution at full load, raw counts | increments | 512000 | |
| Internal AD conversion rate | upd./sec | 1200 | |
| Fix, Digital Low Pass IIR Filter, Default | Hz | 18 (Supress 50Hz and 60Hz Influence) | |
| Adjustable , Digital Low Pass IIR Filter Adjustable , Digital Low Pass FIR Filter | Hz | 18-0.25; selectable in 8 steps 40-5, selectable in 8 steps | |
| Adjustable, External Output Update Rate | upd./sec | 1200-9; Selectable in 8 Steps | |
| GENERAL I/O’s | |||
| Hardware Interface, CAN Version Hardware Interface, RS Version | CAN and RS232 RS485 and RS422 (both 4 wire) | ||
| Data transmission rate CAN Data transm, rates RS485/RS422/RS232 | kb | 125; 250; 500; 1000 9.6; 19.2; 38.4; 57.6; 115.2; 230.4; 460.8 | |
| Protocol CAN Protocol RS485/ RS422/RS232 | CAN Open ASCII or Modbus RTU | ||
| Logical Input, Programmable | Trigger level 2-30Vdc, <3mA, Ref to Gnd | ||
| Power supply | VDC | +10 -+30<0.4 Watt | |
| INFLUENCES | |||
| Safe Load Limit | %* Emax | 150 | |
| Ultimate Load | %FS | 200 | |
| Temperature Effect on Zero | %FS/10°C | 0.01 | |
| Temperature Effect on Span | %FS/10°C | 0.01 | |
| Temperature Range | °C | Operating: -10/+40 | |
| EMC performance | MID Class E2 (industrial locations) | ||
| I/O Protection, All Pins | Reversed Polarity; Excess Voltage and Surge | ||
| Isolation Body/ Electronics at 500VDC | G | ≥1 | |
| Vibration | 2.5G Operational; 5G Non-Operational | ||
| Environmental protection per IEC 529 | IP69 | ||
| Corrosion Resistance | Stainless Steel | ||
Part Numbers
| CAPACITY | OPTION | COMMUNICATION INTERFACE | TYPE | PART NUMBER |
|---|---|---|---|---|
| 50 | GEN-CA | RS-232+CAN | M8 CONNECTOR | 3015D-001-04 |
| GEN-CB | M8 CABLE | 3015D-001-05 | ||
| A-CA | RS485+RS422 | M8 CONNECTOR | 3015D-001-06 | |
| A-CB | M8 CABLE | 3015D-001-07 | ||
| 100 | GEN-CA | RS-232+CAN | M8 CONNECTOR | 3105D-002-04 |
| GEN-CB | M8 CABLE | 3105D-002-05 | ||
| A-CA | RS485+RS422 | M8 CONNECTOR | 3105D-002-06 | |
| A-CB | M8 CABLE | 3105D-002-07 | ||
| 250 | GEN-CA | RS-232+CAN | M8 CONNECTOR | 3105D-003-04 |
| GEN-CB | M8 CABLE | 3105D-003-05 | ||
| A-CA | RS485+RS422 | M8 CONNECTOR | 3105D-003-06 | |
| A-CB | M8 CABLE | 3105D-003-07 | ||
| 500 | GEN-CA | RS-232+CAN | M8 CONNECTOR | 3015D-000-04 |
| GEN-CB | M8 CABLE | 3015D-000-05 | ||
| A-CA | RS485+RS422 | M8 CONNECTOR | 3015D-000-01 | |
| A-CB | M8 CABLE | 3015D-000-03 |
