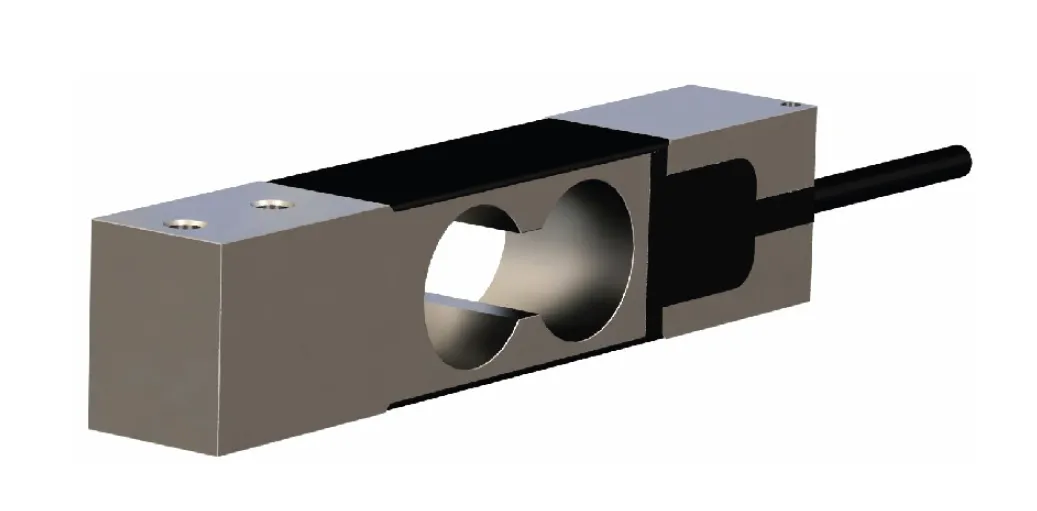

HBSP (4039) Stainless Steel Single Point Load Cell IP67
IMPERIAL
15 – 661 lb
METRIC
7 – 300 kg
The HBSP 4039 series features stainless steel construction with an IP67 moisture protection rating. Capacities range from 10 kg up to 100 kg. This product is commonly used in stainless steel bench scales, portioning scales, packaging machines and filling machines.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacities from 7 kg to 300 kg
- Stainless steel construction
- Environmental Protection IP67
Ideal Applications
- Retail scales
- Bench scales
- Conveyor scales
- Filling and packaging machines

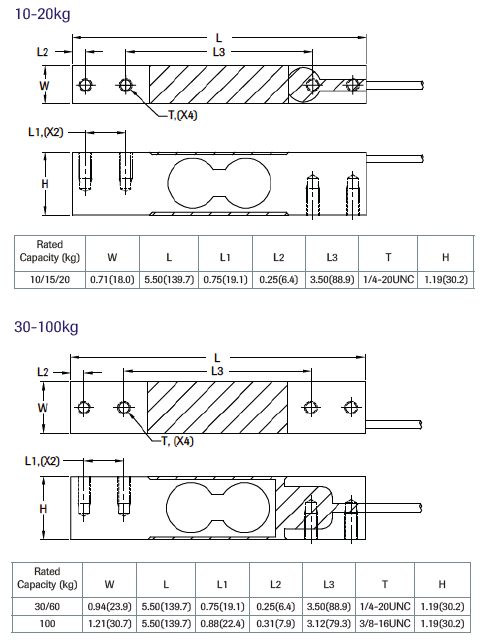

Outline Dimensions

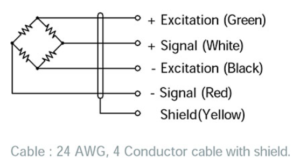

Wiring

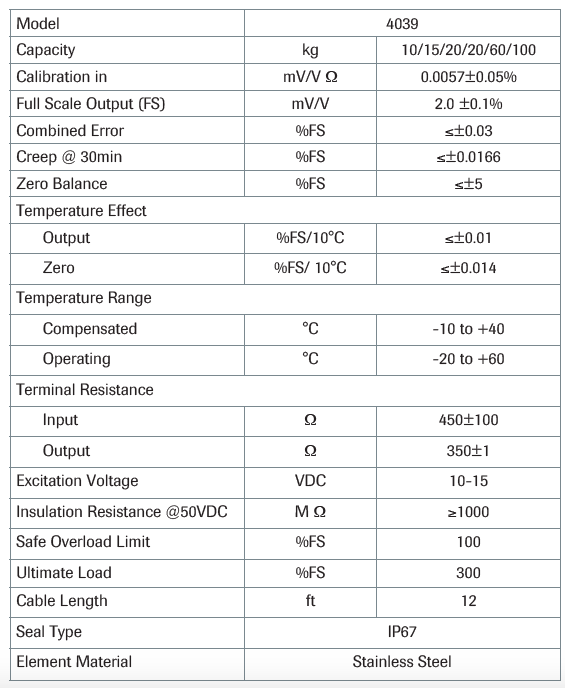

Specifications
| Model | 4039 | ||
|---|---|---|---|
| Capacities | lb | 7 / 10 / 15 / 20 / 30 / 60 / 100 / 150 / 200 / 300 | |
| Full scale output (FS) | mV/V | 2.0±0.1% | |
| Calibration in | mV/V/Ω | 0.0057±0.05% | |
| Combined error | %FS | ≤±0.03 | |
| Creep @ 30min | %FS | ≤±0.0166 | |
| Zero balance | %FS | ≤±5 | |
| Temperature effect | |||
| Output | %FS/°C | ≤±0.01 | |
| Zero | %FS/°C | ≤±0.014 | |
| Temperature range | |||
| Compensated | °C | -10… +40 | |
| Operating | °C | -20… +60 | |
| Terminal resistance | |||
| Input resistance | Ω | 450±100 | |
| Output resistance | Ω | 350±1 | |
| Excitation voltage | VDC | 10 … 15 | |
| Insulation resistance @ 50V DC | MΩ | ≥1000 | |
| Safe overload limit | %FS | 100 | |
| Ultimate load | %FS | 300 | |
| Cable length | ft | 12 | |
| Seal type | IP67 | ||
| Element material | Stainless steel | ||

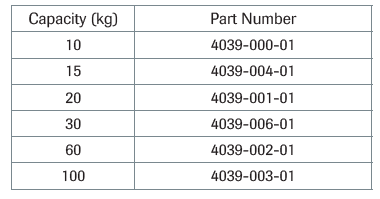

Part Numbers
| Capacity (kg) | Part Number |
|---|---|
| 10 | 4039-000-01 |
| 15 | 4039-004-01 |
| 20 | 4039-001-01 |
| 30 | 4039-006-01 |
| 60 | 4039-002-01 |
| 100 | 4039-003-01 |
