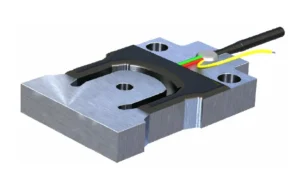

HPB (6003) Single Ended Aluminum Planar Beam Load Cell IP67
Capacity: 2.5kg to 100kg
The type HPB series planar beam load cells is commonly used in a variety of weighing applications. Normally installed in sets of 3 or 4 under a platform in conjunction with a summing network. It’s low profile construction is ideal for scale design where space is limited such as postal scales, airport baggage scales or retail checkout scales.
Features
- Capacities from 2.5 to 100kg
- Aluminum construction
- Low profile design
- Environmental Protection IP67
applications
- Postal scales, airport baggage scales or retail checkout scales
options
- Color coded ribbon cable version
- AMP #5-103957-4 Connector version
technical details of HPB (6003) Single Ended Planar Beam Load Cell

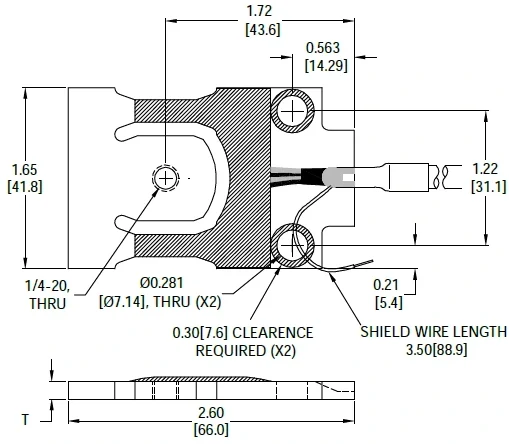

Outline Dimensions

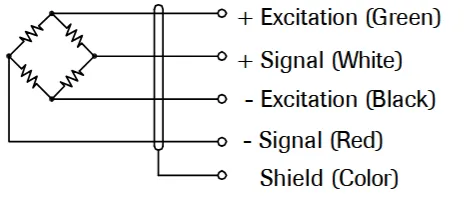

Wiring
Specification
Part Numbers
