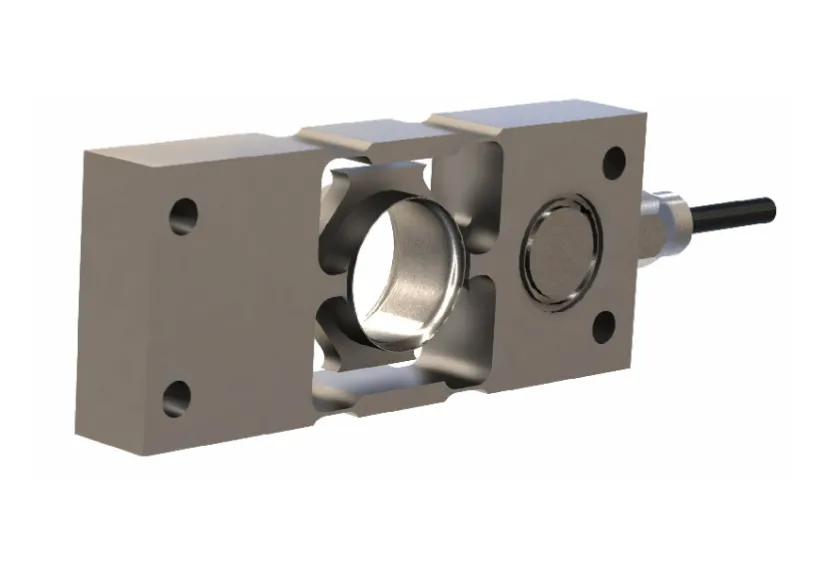

HPS (4067) Stainless Steel Hermetic Single Point Load Cell
Capacity: 6kg
Single point load cell for use packaging machines, bench scale and filling machines. Ideal for use in harsh, heavy wash down conditions.

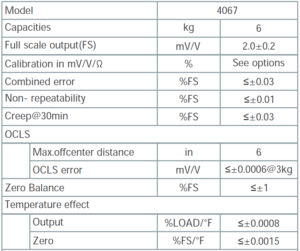

Below you can view or download the datasheet of HPS 4067 Stainless Steel Hermetic Single Point Load Cell.
Features
- Capacity 6kg
- Stainless steel construction
- Environmental protection IP68
Applications
- Bench and floor scales
- Conveyor scales
- Check weighers
- Packaging machines and industrial process control
Options
- mV/V/Ω Calibration.

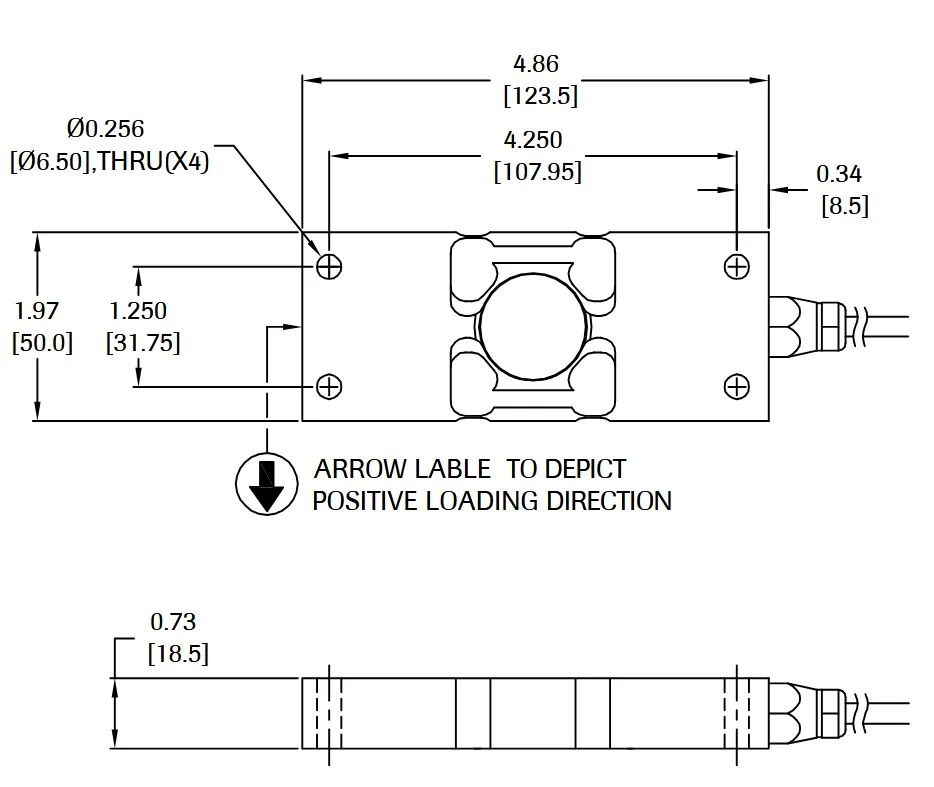

Outline Dimensions

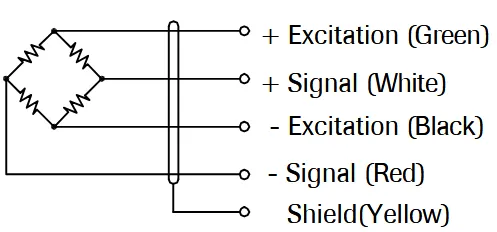

Wiring
Cable: 24 AWG, 4-Conductor,PU, gray cable with shield.
Part Numbers
| Capacity (kg) | GroupFour Part NUmber |
|---|---|
| 6 | 4067-000-00 |
Dimensions and specifications of HPS 4067 Stainless Steel Hermetic Single Point Load Cell subject to change without notice.
