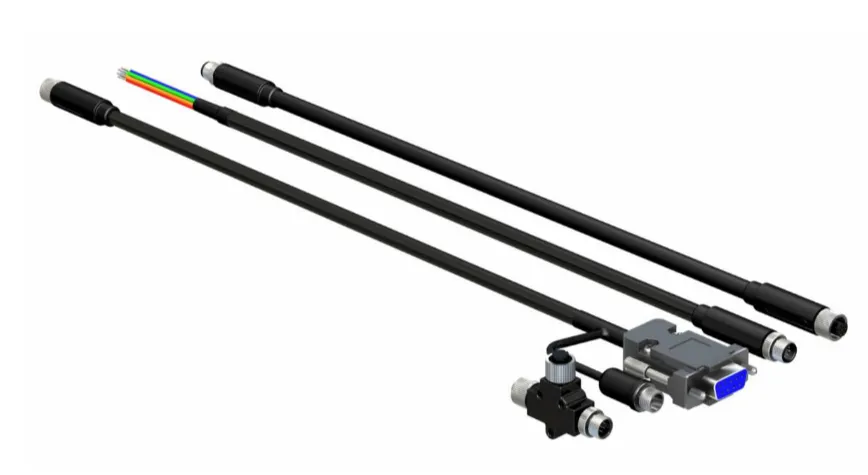

Interconnect Cable Kit M8
Explore the full potential of our digital load cells with our specially developed interconnect cable kit. This cable kit establishes accurate and high-speed connection between our digital load cells and your PLC or PC. It also helps in precise setting of digital load cells using our DOP4 software.
Features
- Easy connection of Group Four digital load cell with PLC or PC
- Allows IP67 waterproof connection
- Shock & vibration resistant
- RoHS compliment
- Environmental protection IP67
- Interconnects M8 daisy chained cabling with PLC or PC
applications
- Digital load cell weighing systems
options
- RS485/RS422 to USB converter (PN : XS890)
- Customized cable lengths and configurations
technical details of Digital load cell Interconnect Cable Kit (M8)
Outline Dimensions

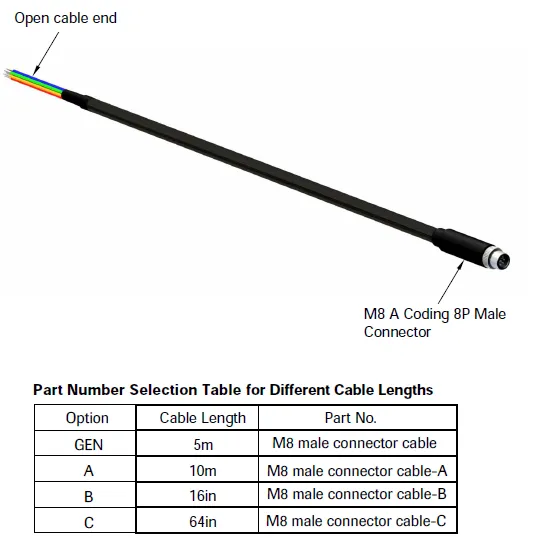

M8 A CODING 8P MALE TO OPEN CABLE

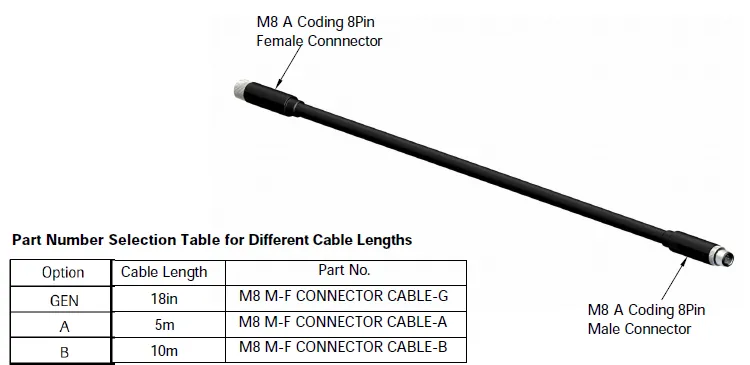

M8 A CODING 8P MALE TO 8P FEMALE CABLE

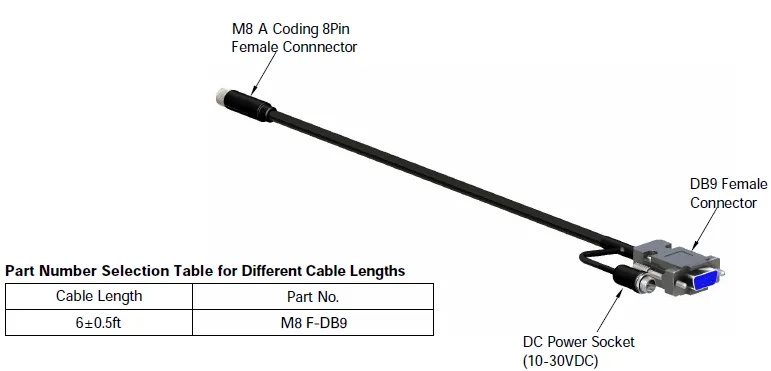

M8 A CODING 8P FEMALE TO DB9 FEMALE CONNECTOR CABLE WITH POWER CONNECTOR

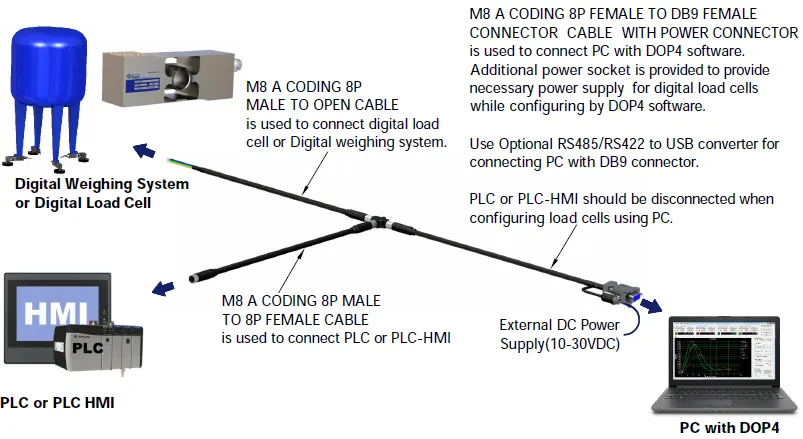

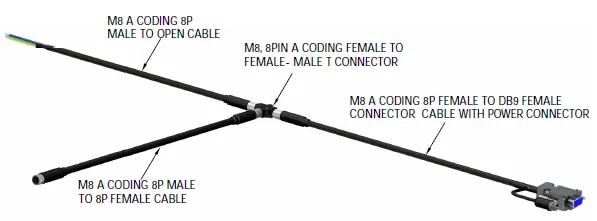

COMPLETE CABLE ASSEMBLY OF INTERCONNECT CABLE KIT

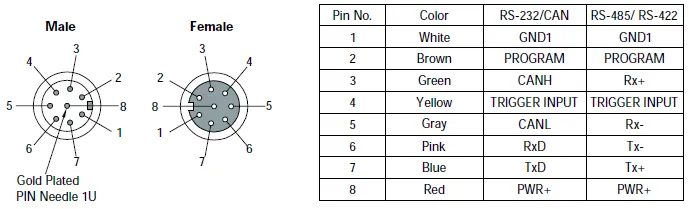

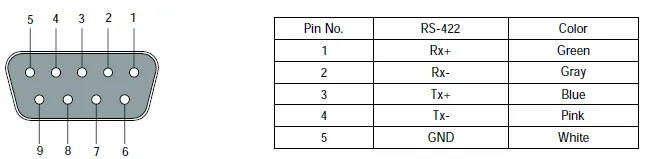

Wiring
Specification
