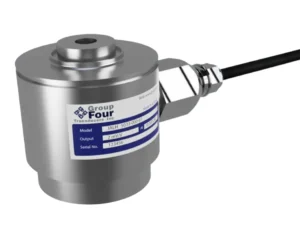

Compression Canister Load Cell JALH 5033

Capacity: 10 to 100 klb

The JALH Multi-Column load cell is ideal for measurement of high loads. Available in capacities of 10-100 klbs.

Below you can view or download the datasheet of Compression Canister Load Cell JALH 5033.

Features

Capacities from 10klb to 100klb.
Stainless steel construction
Environmental protection IP69
Rotation test is done for 0°,120°,240°and 360°
Load cells are supplied with calibration certificates as per ASTM E74.

Applications of Compression Canister Load Cell JALH 5033

Aircraft weighing
Tank weighing
Truck scales

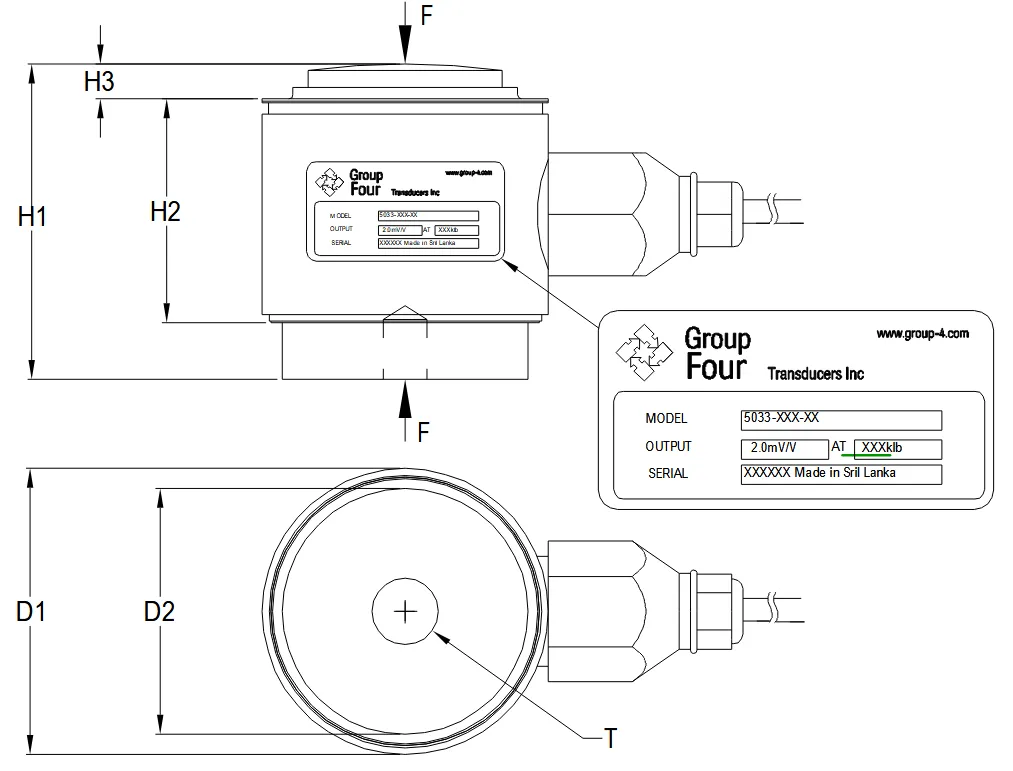

Outline Dimensions

Capacity (klb)	H1	H2	H3	D1	D2	T
10	3.25 [82.6]	2.29 [58.2]	0.36 [9.1]	2.95 [74.8]	2.53 [64.3]	1/2-20UNF, 0.6[15.2]DP.
25	3.25 [82.6]	2.29 [58.2]	0.36 [9.1]	2.95 [74.8]	2.53 [64.3]	1/2-20UNF, 0.6[15.2]DP.
50	3.00 [76.2]	2.29 [58.2]	0.12 [2.9]	2.95 [74.8]	2.53 [64.3]	3/4-16UNF, 0.6[15.2]DP.
100	3.75 [95.3]	2.97 [75.3]	0.45 [11.4]	4.02 [102.0]	3.55 [90.2]	3/4-16UNF, 0.6[15.2]DP.

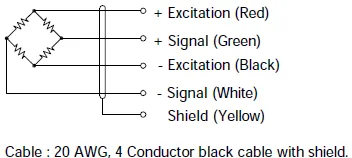

Wiring

Cable: 20 AWG, 4 Conductor black cable with shield.

Specifications

Model	JALH
Capacity	klb	10	25	50	100
Full scale output (FS)	mV/V	2.0±0.1%
Zero balance	%FS	≤±5
Non-linearity	%FS	≤±0.03
Hysteresis	%FS	≤±0.03
Creep @ 30 min	%FS	≤±0.02
Temperature effect
Output	%FS/ 10ºC	≤±0.04
Zero	%FS/ 10ºC	≤±0.04
Temperature range
Compensated	ºC	-10… +40	-10… +40	-10… +40	-10… +40
Operating	ºC	-20… +65	-40… +80	-20 …+65	-20 …+80
Terminal resistance
Input resistance	Ω	1150±50	420±50
Output resistance	Ω	1050±50	350±5
Excitation voltage	VDC	5… 15
Insulation resistance @50VDC	MΩ	≥5000
Safe overload limit	%FS	175		150	120
Ultimate load	%FS	190		160	130
Seal type	IP69
Cable length	inch	24
Element material	Stainless steel

Part Numbers

Capacity(klb)	Part Number
10	5033-000-01
25	5033-001-01
50	5033-003-01
100	5033-002-01

Compression Canister Load Cell JALH 5033 dimensions and specifications subject to change without notice
