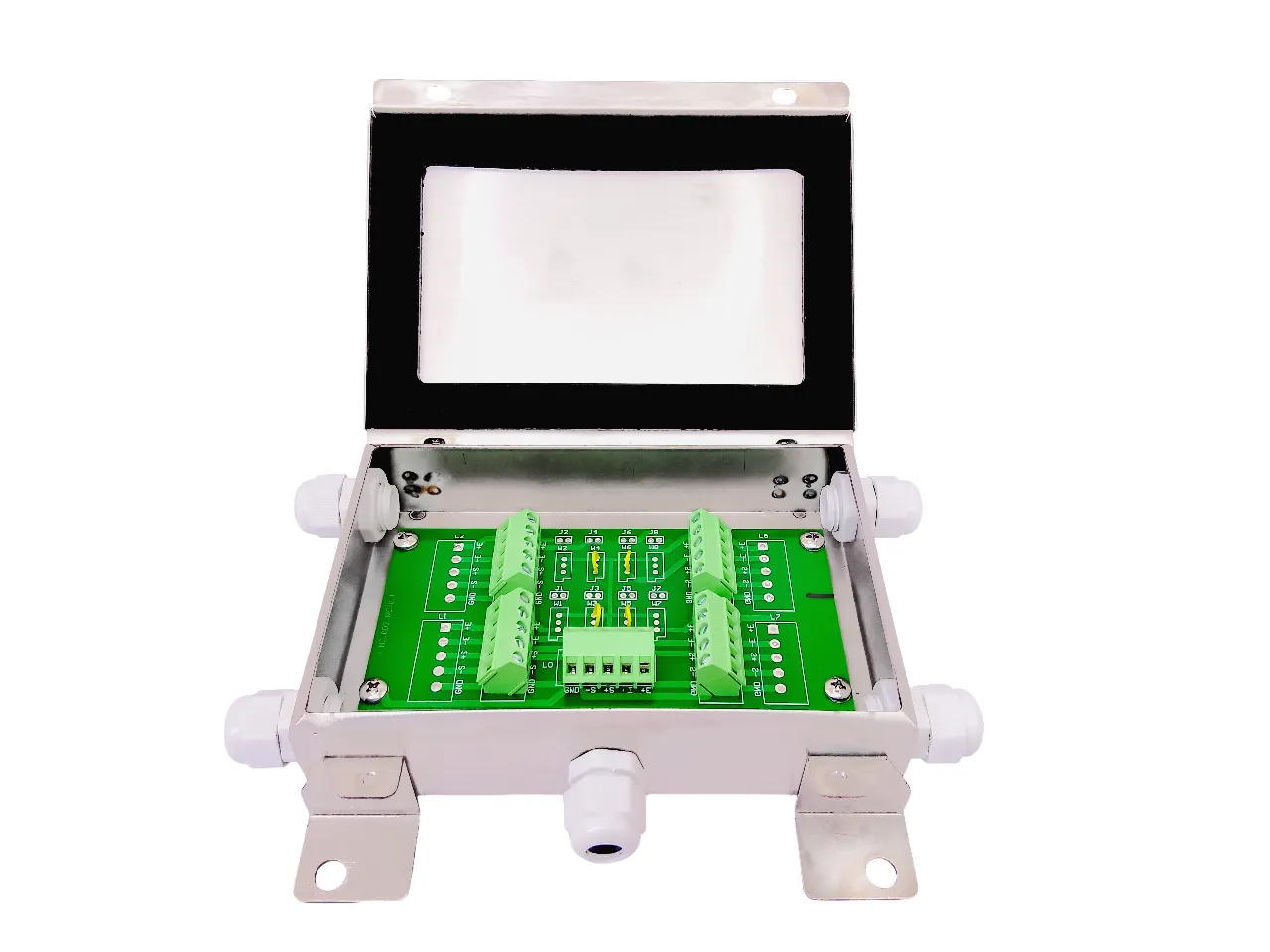

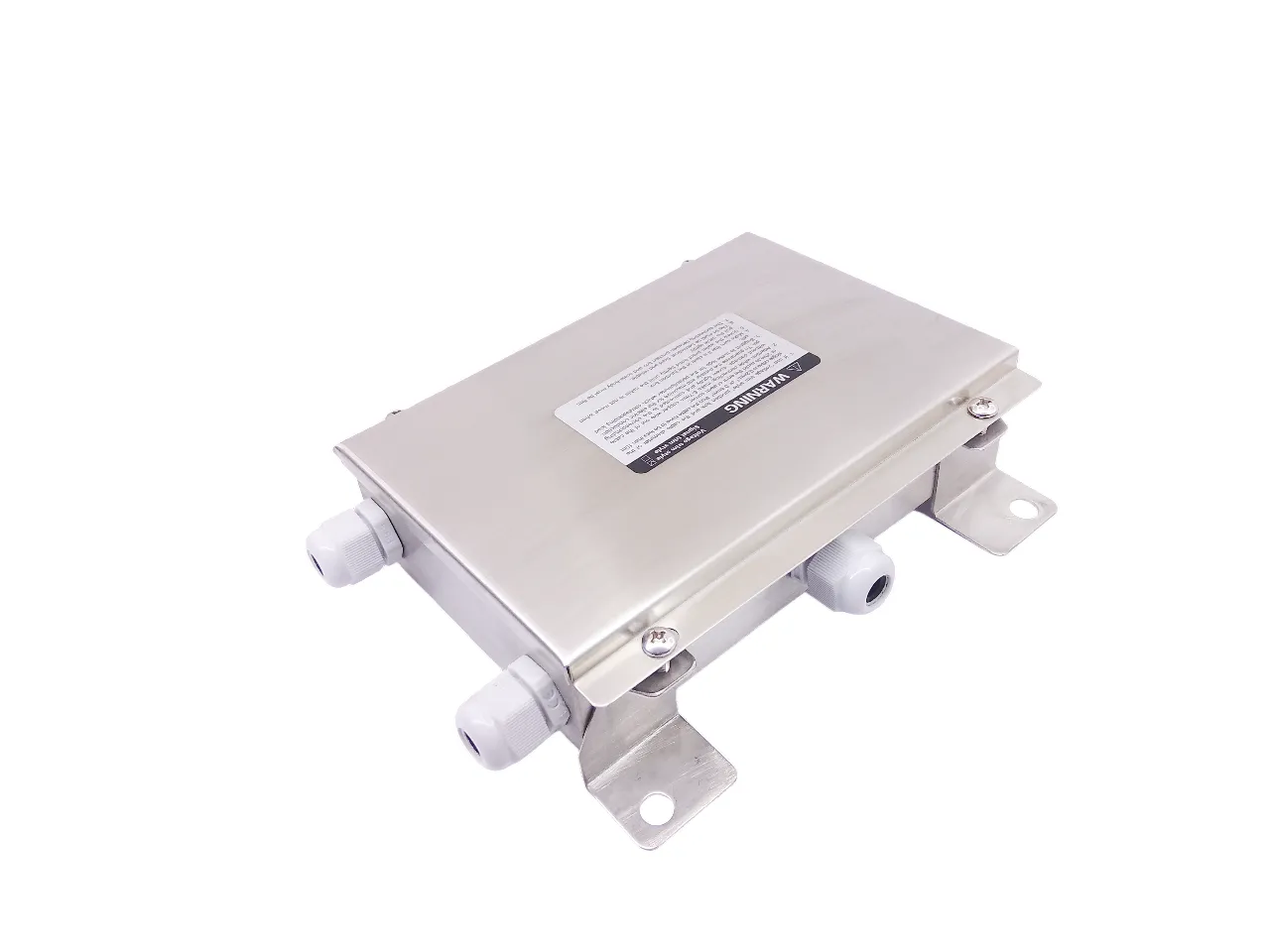

Junction Box JB4
The junction box JB4 connects up to 4 load cells in parallel. Its stainless steel construction and IP67 rating make it ideal for demanding wash down areas.
Below you can view or download the datasheet of Junction Box JB4.
Features
- Connection up to 4 load cells
- Robust enclosure with cable glands sealed to IP67
- Strain relief cable fittings
Applications
- Floor scales
- Tank scales
- Hopper scales
Options
- Available with 6 wire cable

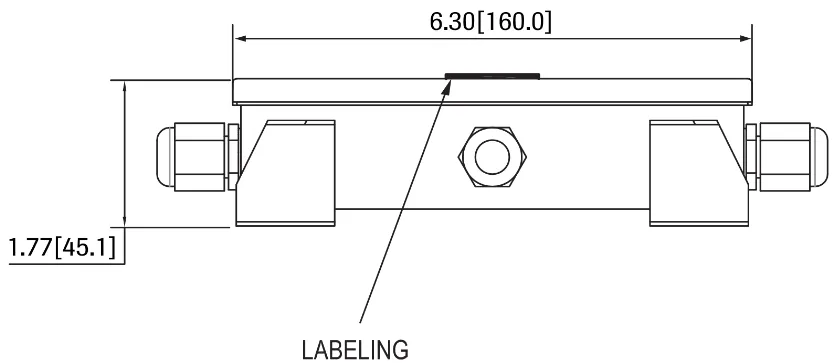

Outline Dimensions
Dimensios units: inch[mm]
Terminal Assignments
| +E | Excitation + |
| -E | Excitation – |
| +S | Signal + |
| -S | Signal – |
| GND | Shield |
Specifications
| Model | JB4 |
|---|---|
| Temperature range | -10°C to 60°C (14°F to 140°F) |
| Enclosure seal type | IP67, NEMA 4X |
| Material | 304 (1.4301) Stainless steel |
| Signal trimming | Not available |
Part Numbers
| Model | Part Number |
|---|---|
| JB4 | JB4-SS-S3-NP |
Junction Box JB4 dimensions and specifications subject to change without notice.
