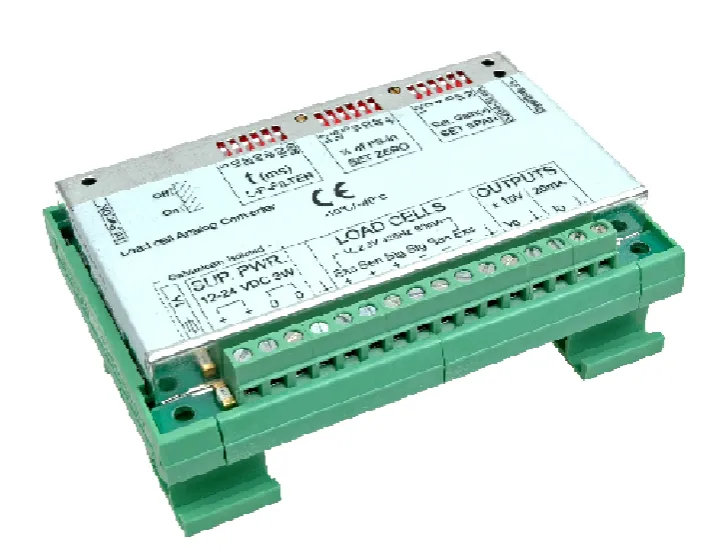

LAC 65.1 Analogue Amplifier

LAC 65.1 is a universal analogue amplifier for static/semi-dynamic weighing applications in hostile industrial environments providing both current and bipolar voltage output at a very high precision. Zero,span and filter settings are performed via firm DIP-switches in binary organized steps and fine trimmed by 20 turn pots to achieve a very high resolution. The LAC 65.1 can be clipped on to various DIN rails and offers robust screw terminals for all connections.



Features

  • Offers extreme stability and security in hostile, industrial environments
  • Both bipolar voltage output ±10V and current output 0-20 or 4-20mA
  • Can drive up to 8 Pc 350 ohm load cells or 24 Pc 1000 ohm load cells
  • Wide range of gain and virtually no zero drift enables a live range down to a few percent of the load cell’s rating
  • Wide range of the low pass input filter from 33 to 0.33Hz to meet any requirement
  • AC excitation voltage (425Hz) cancels influence from EMI and thermo electric forces from wire joints
  • Low 2.5V excitation voltage effectively prevent load cell warm up errors
  • The lay out of the front and the LED indicators ease
  • IP40

applications

  • Static/semi-dynamic weighing applications in hostile industrial environments

technical details of LAC 65.1 Analogue Amplifier

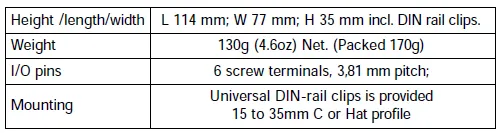

Outline Dimensions

LAC 65.1 Analogue Amplifier outline dimensions

LAC 65.1 Analogue Amplifier specification LAC 65.1 Analogue Amplifier specification
