Load Cell Simulator LCS-100
Get info

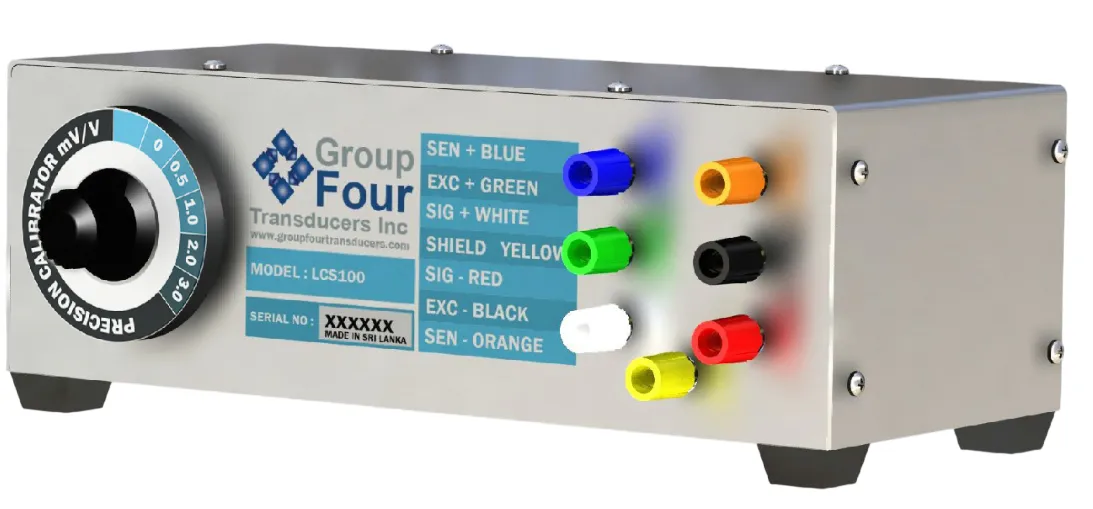

High Precision Load Cell Simulator LCS-100

The load cell simulator can be used to calibrate measuring amplifiers and scale indicators.



Features

  • Suitable for simulating output signals of strain gauge full bridge transducers
  • Calibration steps available from 0.0 to 3 mV/V

Applications

  • Calibration of strain gauge amplifiers and weighing instrumentation

technical details of LCS-100 High Precision Load Cell Calibrator

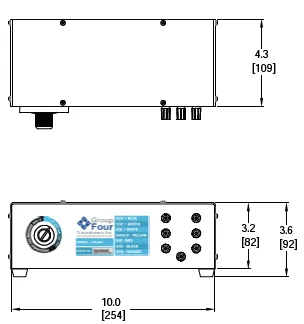

Outline Dimensions

LCS-100 Load Cell Simulator outline dimensions

Wiring

SEN+ BLUE
EXC+ GREEN
SIG+ WHITE
SHIELD YELLOW
SIG- RED
EXC- BLACK
SEN- ORANGE

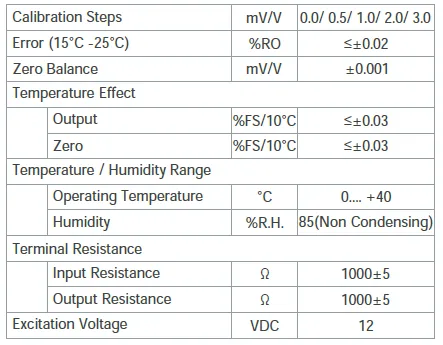

LCS-100 Load Cell Simulator specification
