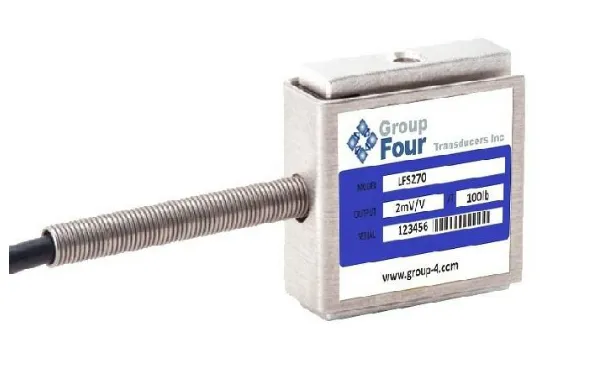

3020 (LFS 270) Miniature S Beam Load Cell
Capacity: 0.25 to 100lb
The LFS270 is a miniature aluminum load cell designed for measuring tensions or compression loads.
Features
- Loads up to 200N (50lb)
- Miniature size
- Up to 10 times the overload protection in both tension and compression
- Light weight
- Superior non linearity
- IP40
applications
- Robotic leg rehabilitation
- Medical guidewire test
- Medical bag weighing
- DNA synthesis
- Wire tension measurement
- Medical behavioral research applications
- OEM syringe test stand
- Trackpad/touchpad test stand
- Robotic glove rehabilitation
- Precision wire tensioner
options
Ask about our popular options:
technical details of 3020 (LFS 270) Miniature S Beam Load Cell

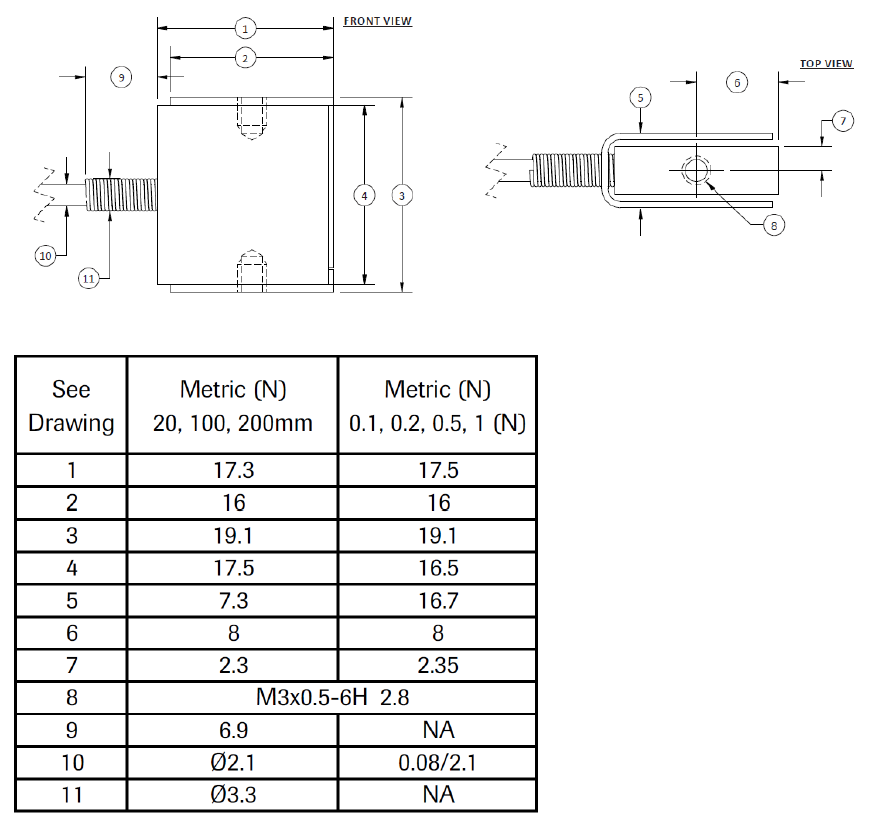

Outline Dimensions

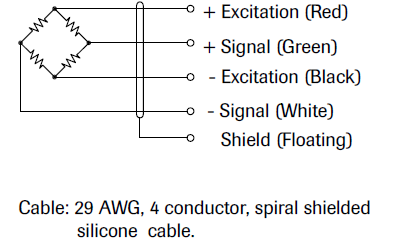

Wiring
Specification

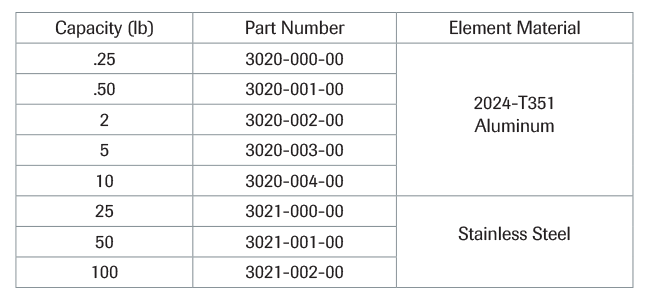

Part Numbers
