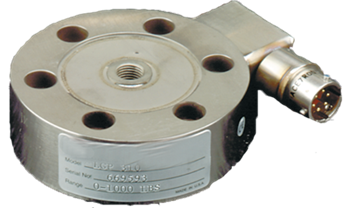

LGP 310 Tension/Compression Pancake
IMPERIAL
5 – 500,000 lb
METRIC
2.2 – 226,796 kg
Low profile “pancake” type cells are engineered to measure loads from 5 to 500,000 pounds. The tension/compression LGP 310 is designed with a threaded hole running through the center of the cell. The LGP 310 utilizes two stabilizing diaphragms, which are welded to the sensing member to reduce off-center and side-loading effects. A load button may be desirable when using in compression or a pull plate when using in tension. This model must be used on a flat, smooth surface to achieve rated specifications. This unit can be hermetically sealed for added durability. Options available with this unit include: 0-5 Vdc, 4-20ma output, fatigue rating, high/low temperature compensation and ultra precision accuracy.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Low profile
- Tension/compression
- Wide capacity range
- Stainless steel
- Economically priced
- 0-5 VD or 4-20 MA option output
- 5lb to 500,000lb
Outline Dimensions
Specifications
| Load Ranges | 5 lb to 500,000 lb | |
|---|---|---|
| Linearity | 5 lb to 25 lb | ±0.2% FS |
| 50 lb to 500,000 lb | ±0.1% FS | |
| Hysteresis | 5 lb to 25 lb | ±0.1% FS |
| 50 lb to 500,000 lb | ±0.08% FS | |
| Repeatability | 5 lb to 25 lb | ±0.1% |
| 50 lb to 500,000 lb | ±0.03% | |
| Material | 5 lb to 200,000 lb | 17-4 PH S.S. |
| 300,000 lb to 500,000 lb | Carbon Steel | |
| Temperature Range | F˚ | 15˚ to 115˚ F |
| Output | 5 to 25 lb | 2mV/V |
| 50 to 500,000 lb | 3mV/V | |
| Bridge Resistance | 350 ohm | |
| Excitation | 10 Vdc | |
| Safe Overload | 50% Over Capacity | |
| Deflection | .003″ F.S. | |
| Connector (not included) | 5 lb to 5000 lb | PTO6A-10-6S |
| 7500 lb to 500,000 lb | MS3106A-14S-6S | |
