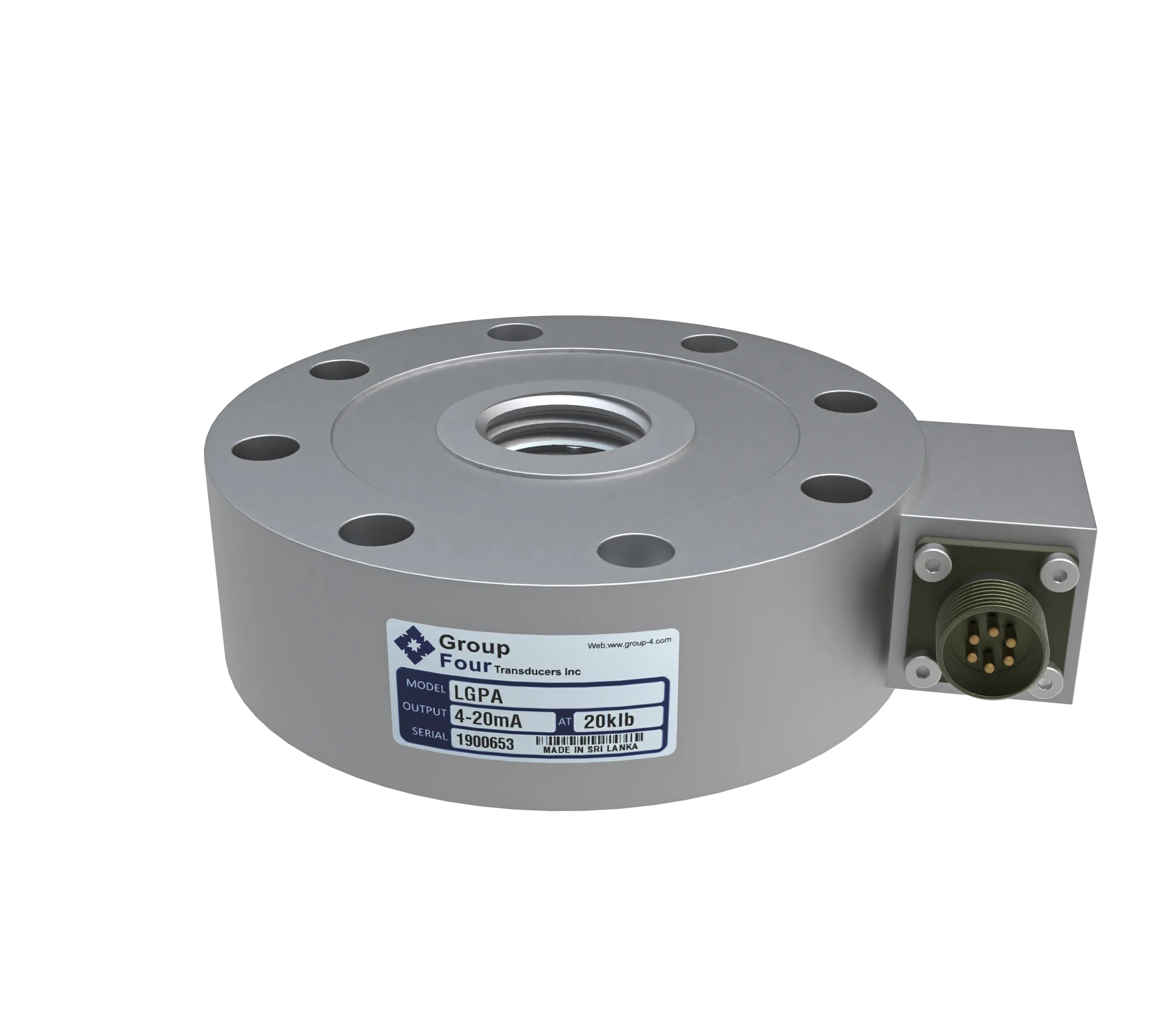

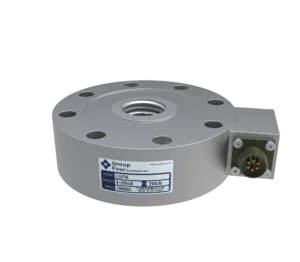

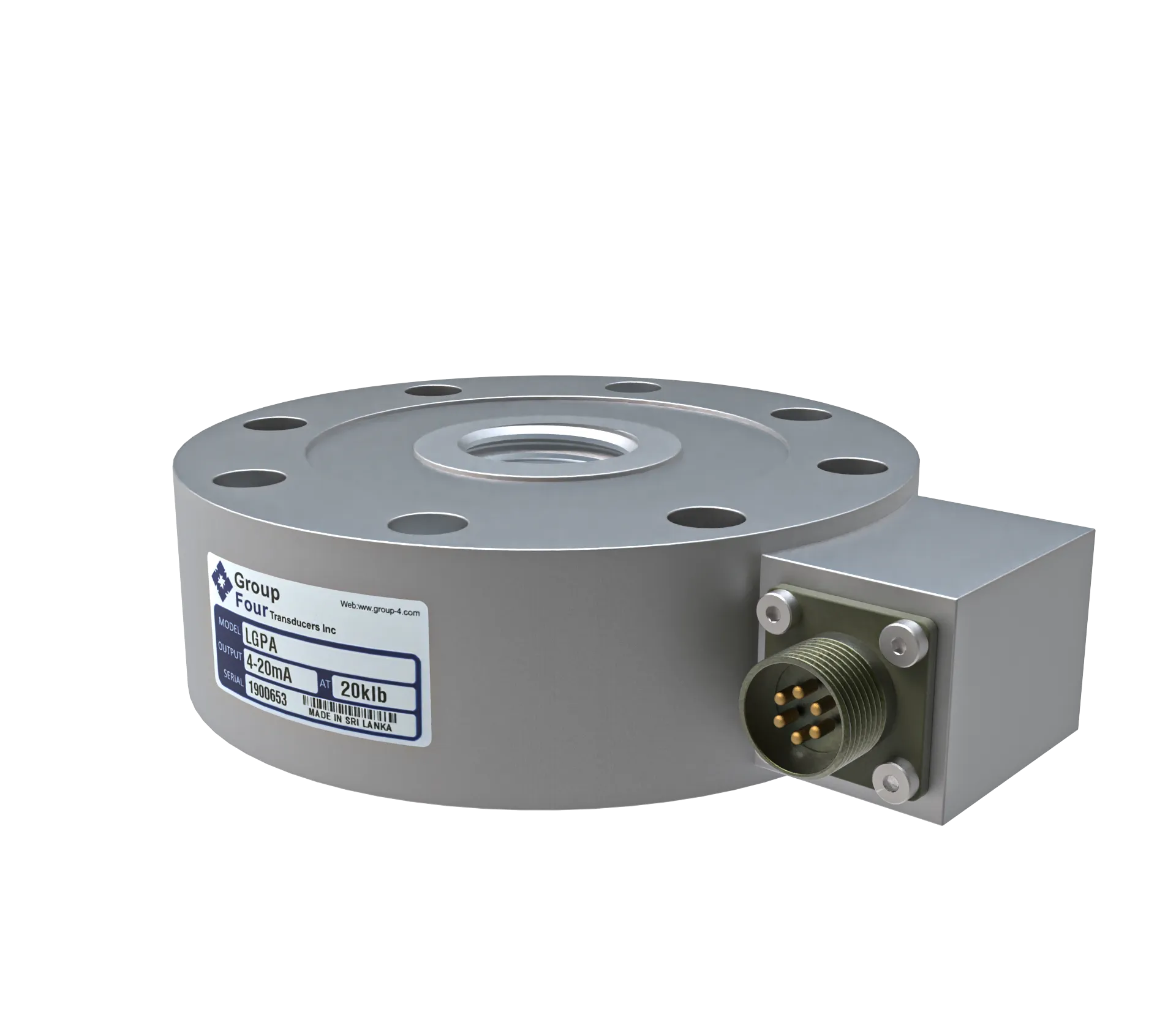

LGPA 5073 Low Profile Pancake Load Cell
LGPA (5073) Low Profile Pancake Load Cell
Capacity: 10 klb to 50 klb
The LGPA 5073 series is a high-precision, low-profile pancake load cell engineered for both tension and compression force measurement. Designed for demanding industrial environments, this sensor offers a capacity range from 10,000 lbs to 50,000 lbs (10klb – 50klb), providing reliable data for structural testing and heavy-duty weighing.
With its robust stainless steel construction and a threaded center hole, the LGPA is built for durability and easy integration. It features a built-in internal amplifier providing a 4–20 mA analog output, making it 100% compatible with modern PLCs, DAQ systems, and industrial controllers without needing external signal conditioners.
View or download the LGPA 5073 Pancake Load Cell datasheet below for full technical specifications and wiring diagrams.
LGPA 5073 Load cell key Features
- High Capacity Range: Available in capacities from 10klb to 50klb.
- Low-Profile “Pancake” Design: Ideal for applications with tight vertical clearance.
- Universal Measurement: Precision accuracy in both Tension and Compression modes.
- Industrial Output: Standard 4-20mA signal for long-distance transmission with minimal noise.
- Rugged Durability: Manufactured from high-grade stainless steel with an IP67 environmental protection rating (dust and water-resistant).
- Simplified Installation: Features a threaded center-thru hole for quick mechanical mounting.
Applications
The LGPA 5073 is a versatile force transducer used across various sectors in the US market:
- Aerospace: Jet engine thrust measurement and component testing.
- Infrastructure: Cable tension monitoring and structural integrity analysis.
- Manufacturing: Press force monitoring and material testing where space is limited.
- Oil & Gas: Heavy-duty weighing and industrial automation.
LGPA 5073 Pancake Load Cell Ordering Options
- While the standard model features a 4-20mA output for easy PLC integration, a mV/V version is also available for use with external strain gauge amplifiers.

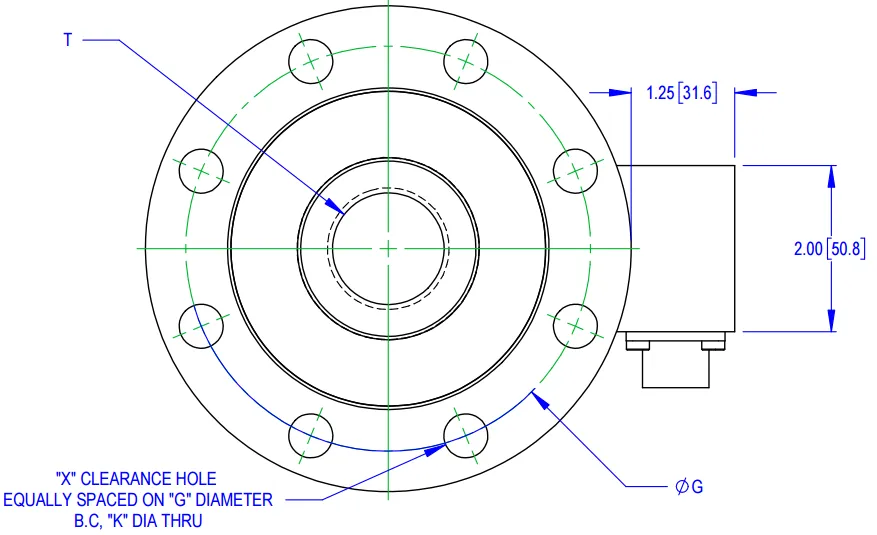

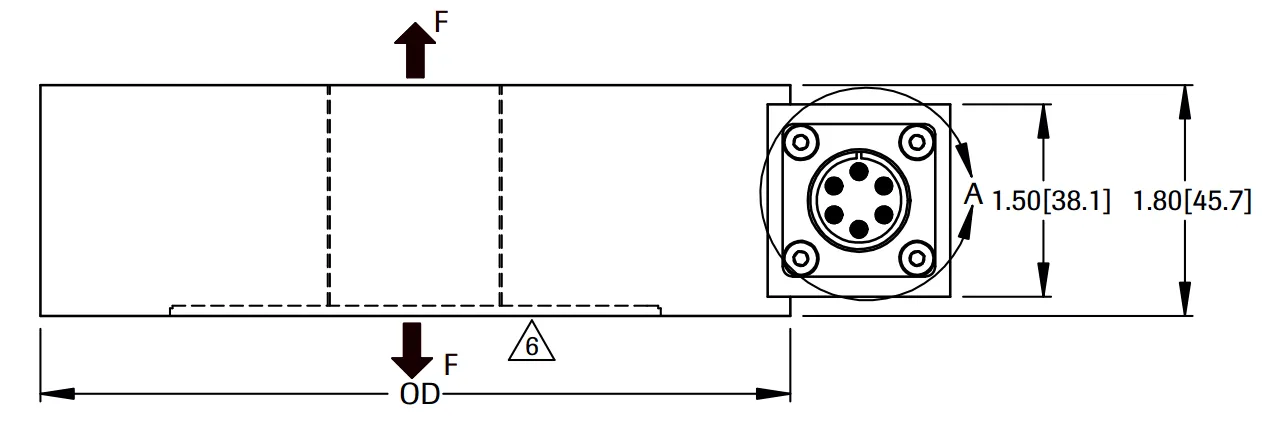

LGPA 5073 Pancake Load Cell Dimensions
| Capacity (klb) | OD | ØG | T | X | ØK |
|---|---|---|---|---|---|
| 10-15 | 5.45[138.5] | 4.500[114.30] | 1-14UNS | 8 | 0.40[10.2] |
| 20-50 | 5.85[148.5] | 4.875[123.83] | 1 1/2-12UN | 0.53[13.5] |
Notes:
- ARROW INDICATES THE POSITIVE LOADING DIRECTION.
- ALL DIMENSIONS ARE IN INCH[MM].
Wiring
| Pin | Connection |
|---|---|
| A | +Supply |
| B | Common |
| C | N/C |
| D | N/C |
| E | N/C |
| F | Shield |

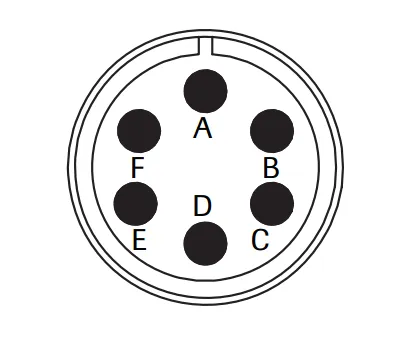

Pin Configuration
Connector : MS3102A-14S-6P.
Specifications for LGPA 5073 low profile pancake load cell
| Model | LGPA | |
|---|---|---|
| Capacities | 10, 15, 20, 30, 50 | |
| Non-linearity | %FS | ≤±0.10 |
| Hysteresis | %FS | ≤±0.08 |
| Creep @30min | %FS | ≤±0.07 |
| Output @Zero load | mA | 4.0±0.5 |
| Output @Full load | mA | 20.0±1 |
| Temperature range | ||
| Operating | °C | -20~+ 65 |
| Excitation voltage | VDC | 12….30 |
| Safe overload limit | %FS | 150 |
| Ultimate load | %FS | 200 |
| Seal type | IP67 | |
| Element material | Stainless steel | |
Part Numbers
| Capacity (klb) | Part No |
|---|---|
| 10 | 5073-000-00 |
| 15 | 5073-001-00 |
| 20 | 5073-002-00 |
| 30 | 5073-003-00 |
| 50 | 5073-004-00 |

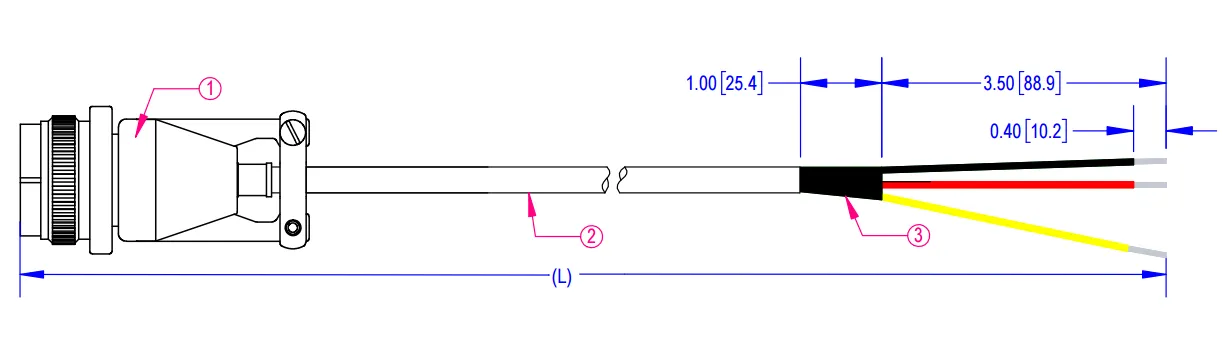

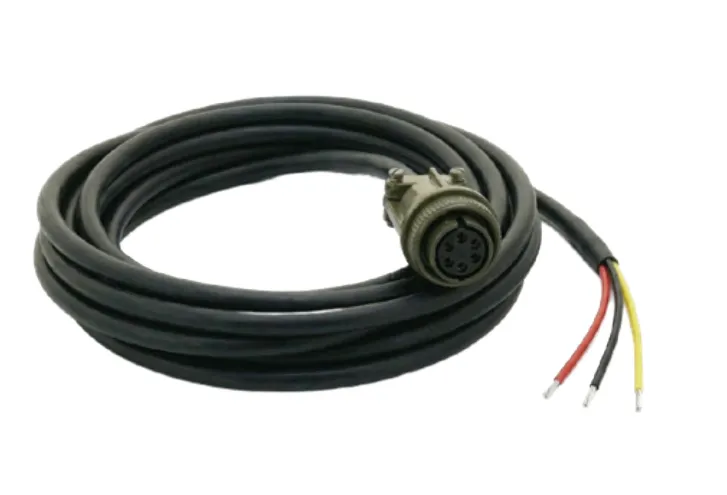

LGPA 5073 Low Profile Pancake Load Cell Mating Cable
| Item No | Description | Part No. |
|---|---|---|
| 1 | 6 Position circular connector plug,female sockets solder cup | MS3106E-14S-6S |
| 2 | 22AWG 4 Core black PVC cable | – |
| 3 | Black color shirnk tube | – |

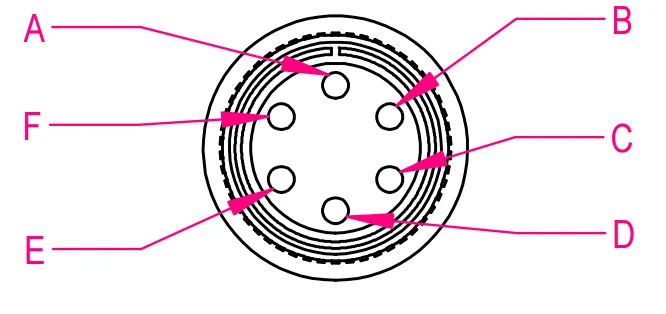

Connector configuration and cable color code
| Pin No | Connection | Color |
|---|---|---|
| A | +Supply | Red |
| B | Common | Black |
| C | N/C | – |
| D | N/C | – |
| E | N/C | – |
| F | Shield | Yellow |
