LPM 512 Subminiature Tension Compression Load Cell
Get info

LPM 512 Subminiature Tension/Compression

Capacity: 150 g to 1000 lb

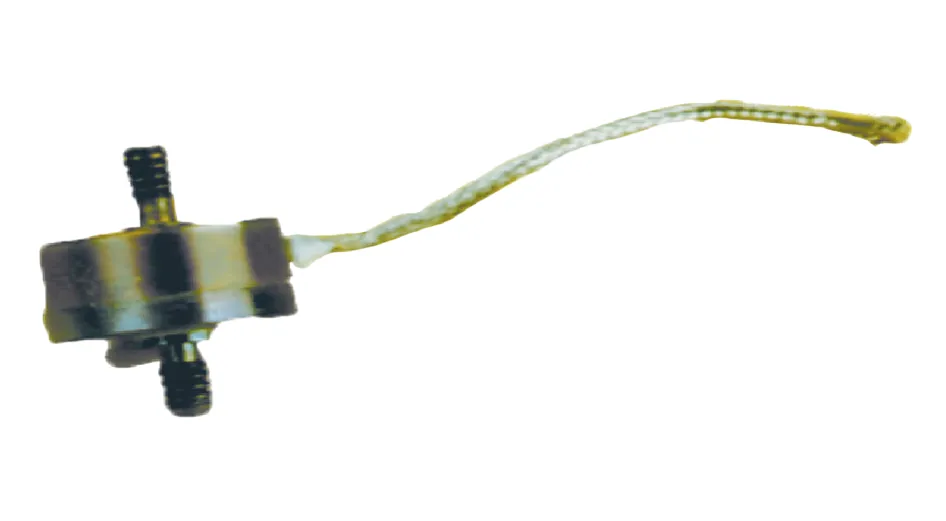

Model LPM 512 (tension/compression) subminiature load cell is designed to measure load ranges from 150 grams to 1000 pounds with a high frequency response rate. The subminiature dimensions, including diameters from 0.5″ to 0.75″ and heights of 0.13″ to 0.38″ allow these units to be easily incorporated into systems having limited space. A small (1.0″ long x 0.08″ thick) circuit board is included in each load cell’s lead wire cable for temperature compensation.



Features

  • Tension/Compression
  • Wafer-thin
  • Up to 1000lb
  • High/low temp. options
  • 150gms to 1000lbs

technical details of LPM 512 Subminiature Tension/Compression

Outline Dimensions

LPM 512 Subminiature Tension Compression outline dimensions

  • Load Ranges: 150g to 1,000lb
  • Linearity: ±0.5% F.S.
  • Hysteresis: ±0.5% F.S.
  • Repeat-ability: ±0.1% F.S.
  • Material: Stainless Steel
  • Temperature range: 60 – 160F
  • Output: 50 g to 500 g – 10mv/v 1000 g to 1000 lb – 2mv/v
  • Bridge resistance: 50 g to 500 g – 500 ohm 1000 g to 1000 lb – 350 ohm
  • Excitation: 5 Vdc
  • Safe overload: 50% over capacity
  • Cable: 5ft
