5048 (LPM 530) Miniature Tension/Compression
IMPERIAL
10 lb – 10 klb
METRIC
4.5 – 4,536 kg

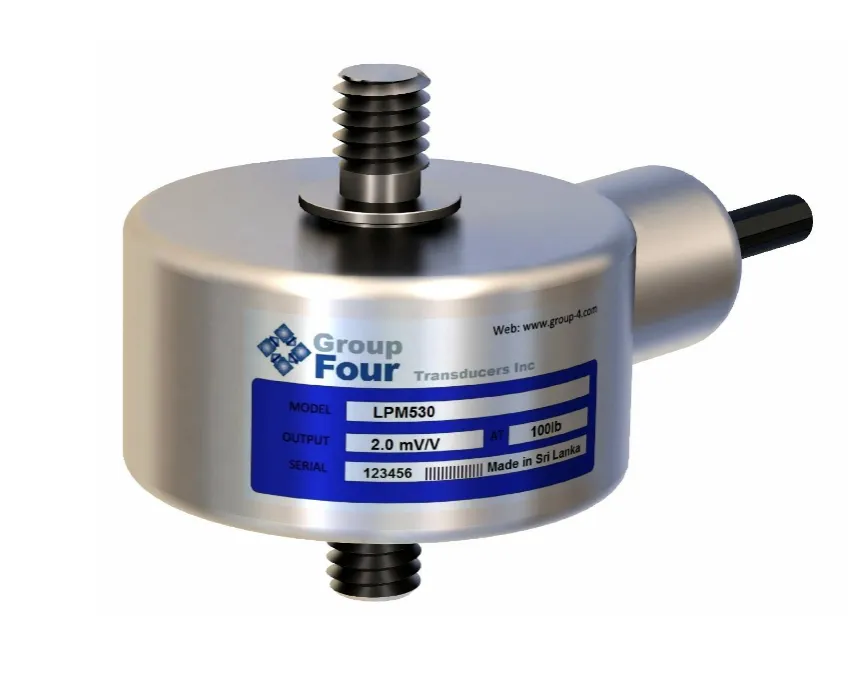

The type LPM530 miniature load cell is designed for both tension and compression force monitoring. Low profile & integral mounting threads make it ideal to use in small spaces.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacities from 10lb to 10klb
- Stainless steel construction
- Environmental protection IP66
- Easy to install
Ideal Applications
- Axial force measurement
- Force test machines
- Suspended tank weighing
- Medical devices

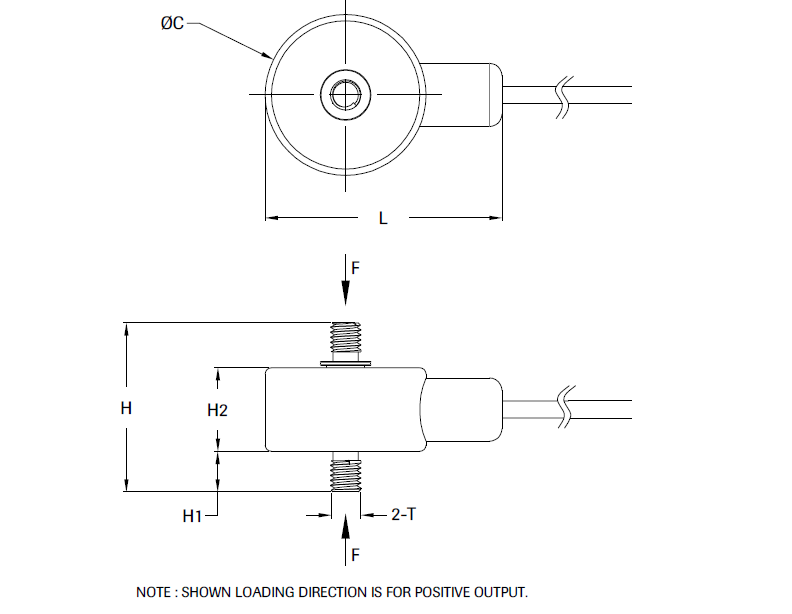

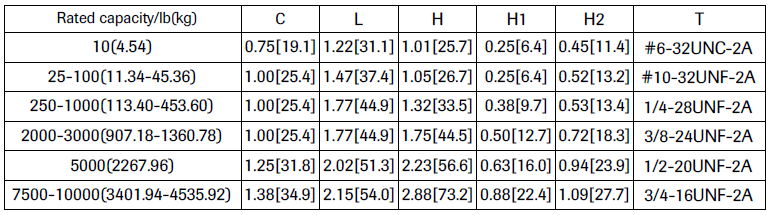

Outline Dimensions

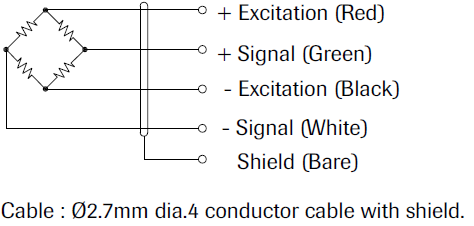

Wiring
Specifications
| Model | 5048 | |
|---|---|---|
| Capacities | See table | |
| Full scale output(FS) | mV/V | 2.0±20% |
| Non-linearity | %FS | ±0.2 |
| Hysteresis | %FS | ±0.2 |
| Non-repeatability | %FS | ≤±0.1 |
| Creep @ 30min | %FS | ≤±0.2 |
| Zero balance | mV/V | ±0.04 |
| Temperature range | °C | -10…+40 |
| Terminal resistance | ||
| Input resistance | Ω | 375±25 |
| Output resistance | Ω | 350±3 |
| Excitation voltage | VDC | 5(10 Max) |
| Insulation resistance@50VDC | MΩ | ≥2000 |
| Safe overload limit | %FS | 150 |
| Ultimate load | %FS | 300 |
| Cable length | m | 2 |
| Seal type | IP66 | |
| Element material | Stainless steel | |
Part Numbers
| Capacity(lb) | Part Number |
|---|---|
| 10 | 5048-000-00 |
| 25 | 5048-001-00 |
| 50 | 5048-002-00 |
| 100 | 5048-003-00 |
| 250 | 5048-004-00 |
| 500 | 5048-005-00 |
| 1,000 | 5048-006-00 |
| 2,000 | 5048-007-00 |
| 3,000 | 5048-008-00 |
| 5,000 | 5048-009-00 |
| 7,500 | 5048-010-00 |
| 10,000 | 5048-011-00 |
