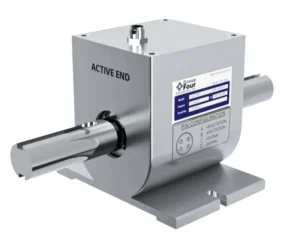

LXT 963

The LXT 963 is a rotating torque measurement sensor using a conventional shaft to shaft configuration. It incorporates a slip ring assembly transmitting excitation voltage to and output signals from the rotating sensor.

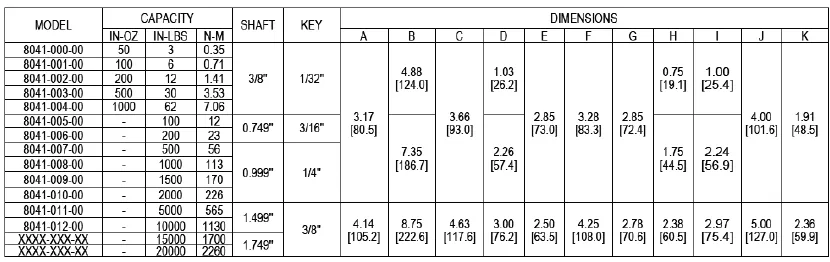

  • Capacity 3in.lb to 20,000in.lb
  • Environmental protection IP67
  • Aluminum for lower range and steel construction for higher ranges

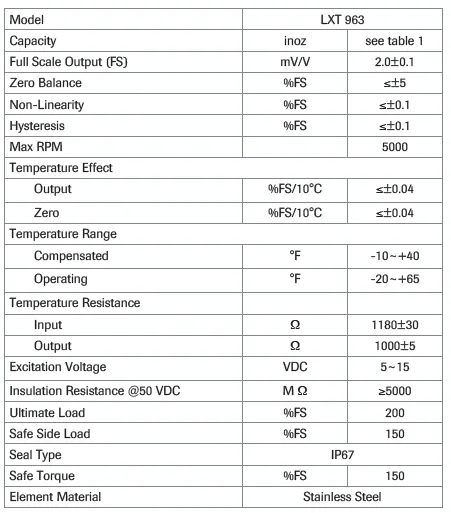

  • Output 2mV/V

  • Rotating drive torque measurements
  • Dynamic measurements

  • Force measurement
