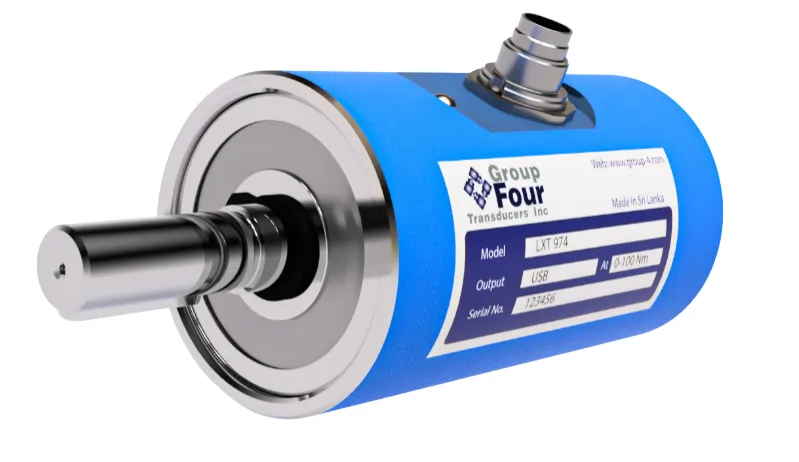

LXT 974 Shaft to Shaft Rotating Torque Load Cell

The LXT 974 is the most cost-effective entry into professional torque measurement technology. This sensor is mainly used in automotive testing, motor break testing, starting torque testing, gear box testing and break away torque testing.

View or download the datasheet below for full technical specifications and wiring diagrams.

Key Features

• Best price-performance ratio
• Integrated electronic (Plug & Play)
• Contact-less measurement system
• Including 5m cable and calibration certificate
• Free Software with USB option
• Suitable accessories (Readout unit, couplings)
• Max RPM 10.000
• IP50

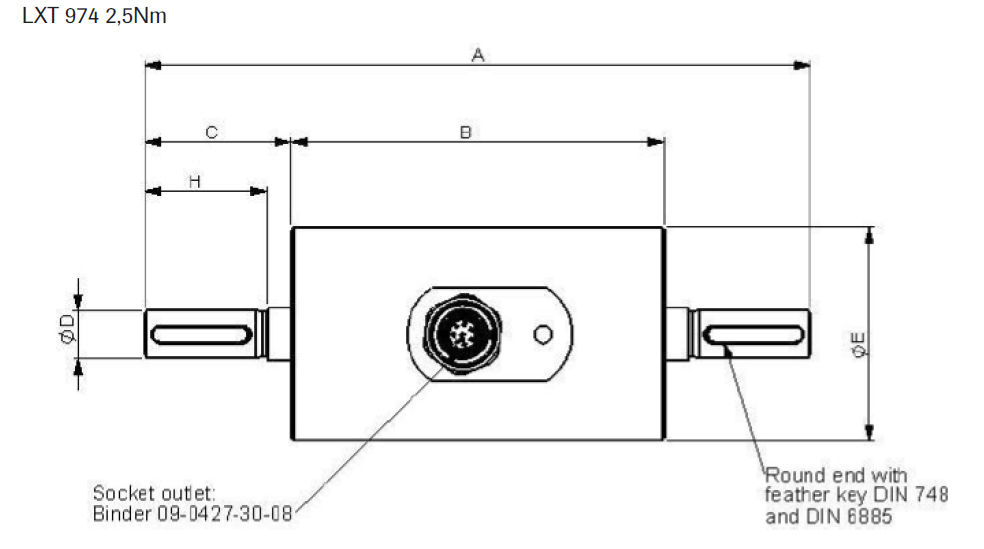

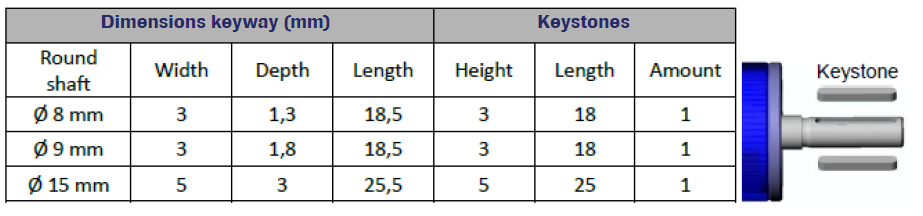

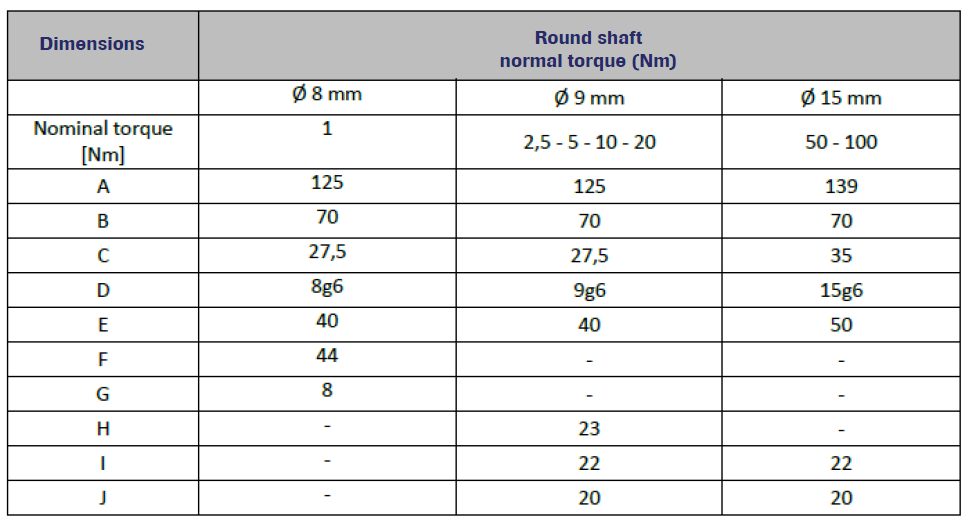

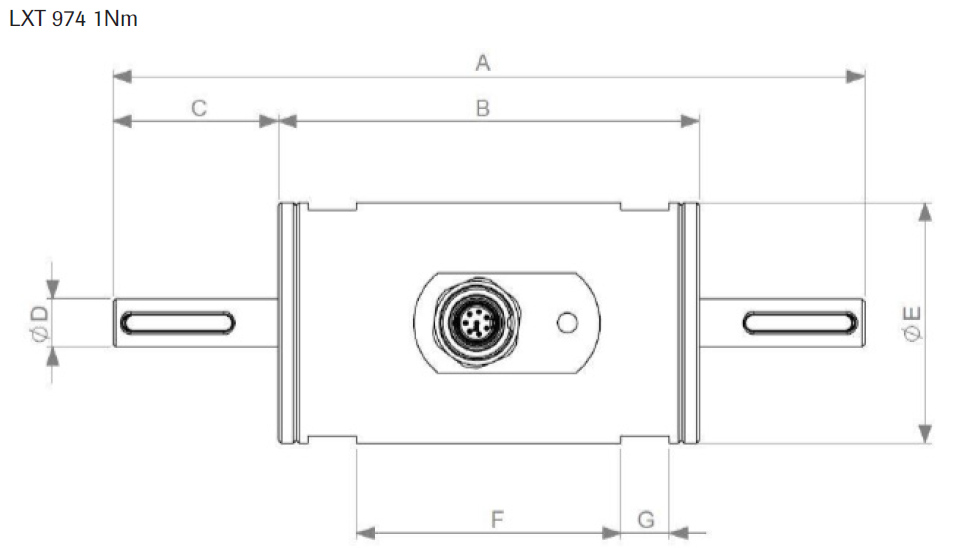

Outline Dimensions

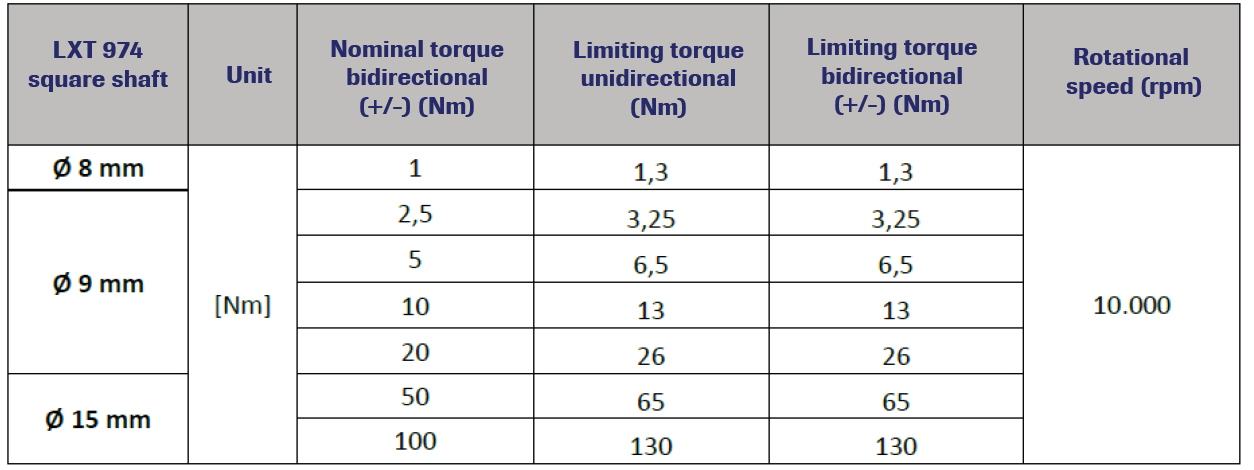

Specifications
