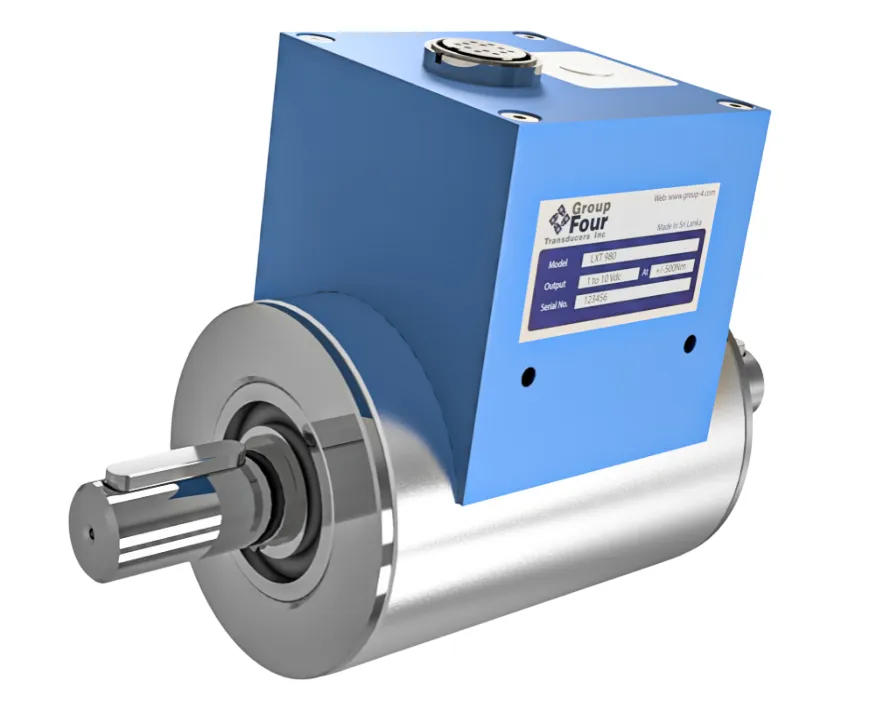

LXT 980 Shaft to Shaft Rotating Torque Load Cell

Capacity: 50 to 2000 Nm

The LXT 980 is the most cost-effective, mid range entry into professional torque measurement technology. This sensor is mainly used in automotive testing, motor break testing, starting torque testing, gear box testing and break away torque testing.



Features

  • Best price-performance ratio
  • Integrated electronic (Plug & Play)
  • Contact-less measurement system
  • Including 5m cable and calibration certificate
  • Suitable accessories (Readout unit, couplings)
  • RPM 5, 8, 10
  • IP50

technical data

  • Nominal torque: up to 2.000 Nm, bidirectional
  • Rotational speed: ≤ 10.000 rpm
  • Accuracy: ≤ ±0,2
  • Temperature range: -40 °C to +85 °C
  • Protection class: IP50
  • Output signal options: 0-10 V/4-20 mA
  • Cut-off frequency: 2.500 Hz

technical details of LXT 980 Torque Sensor

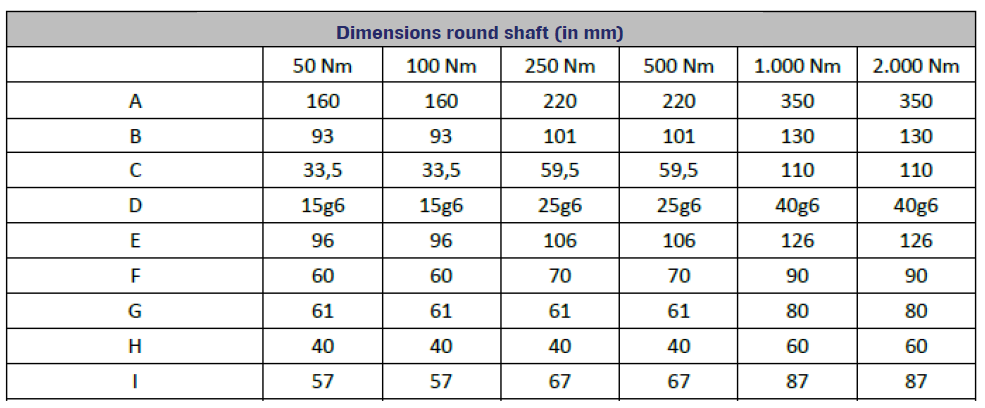

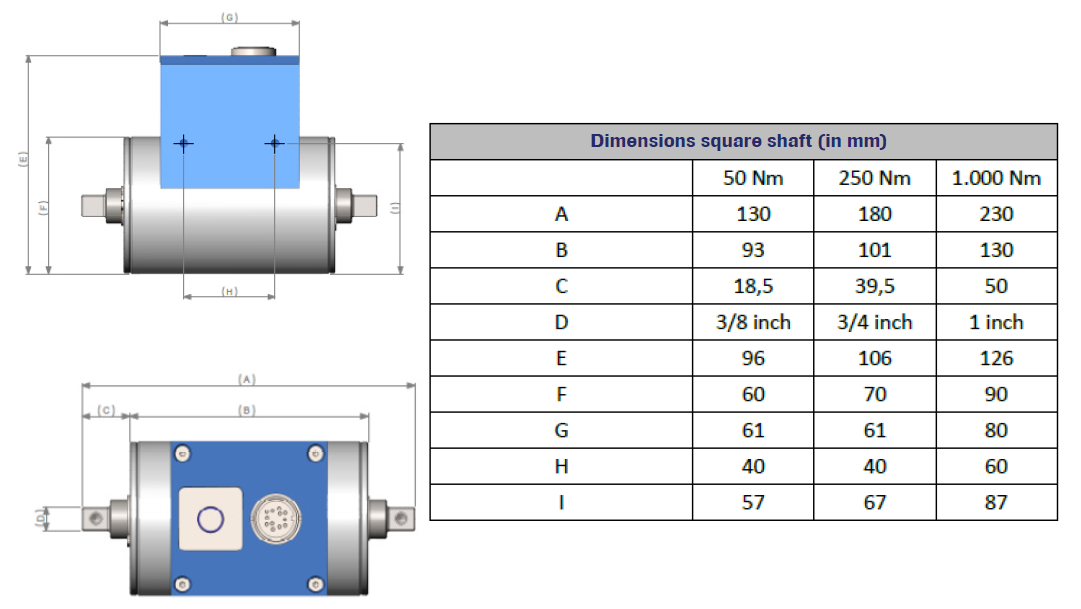

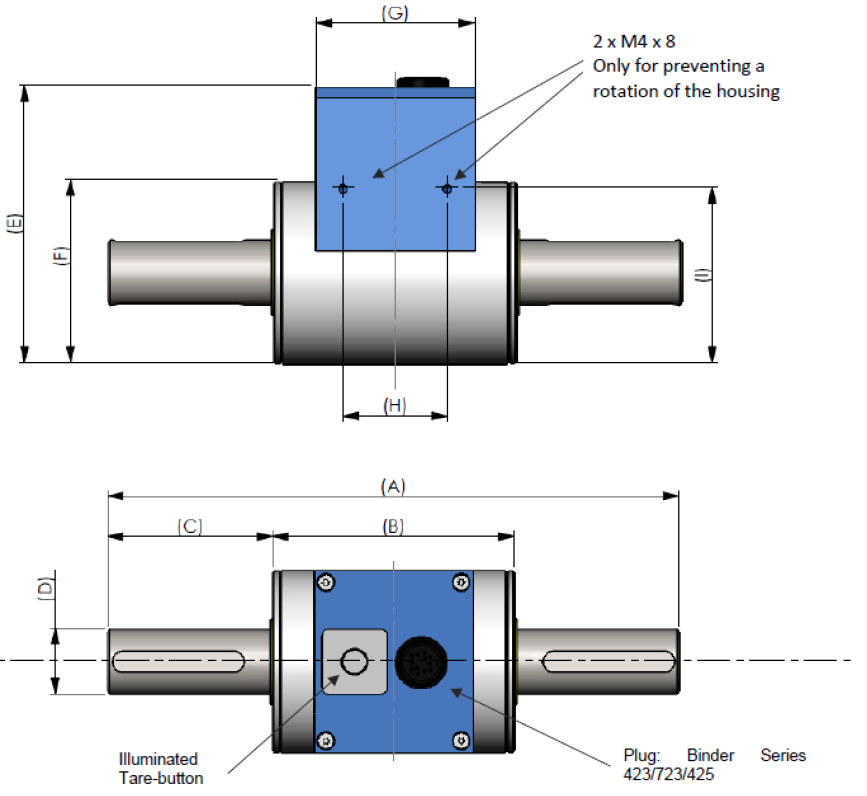

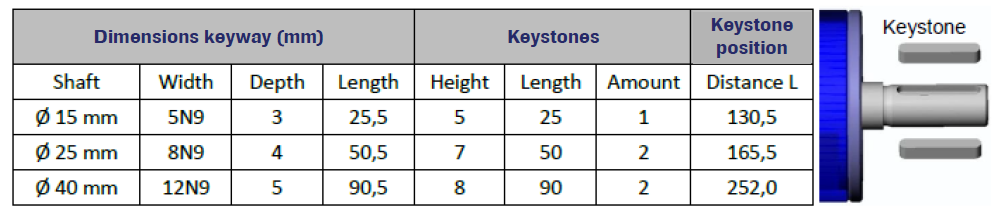

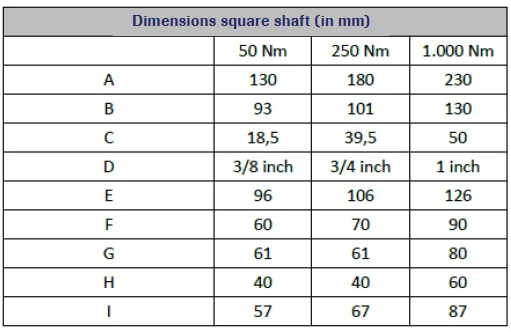

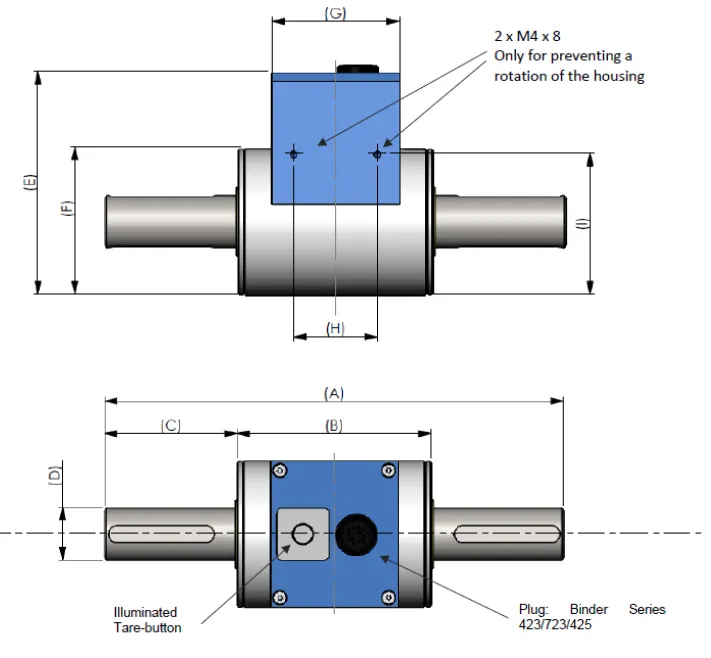

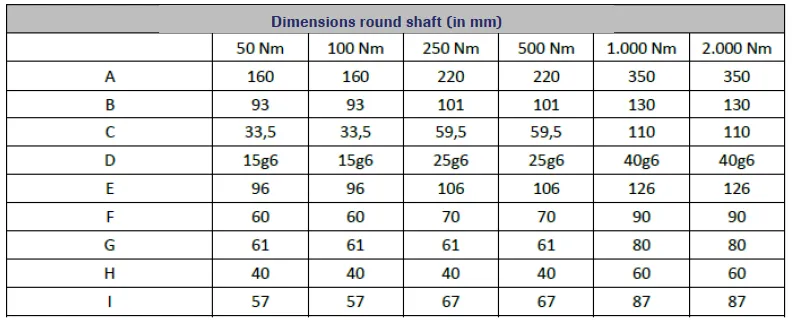

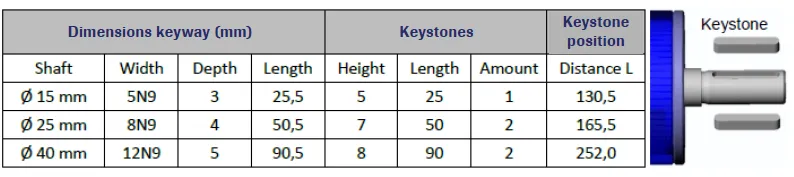

Outline Dimensions

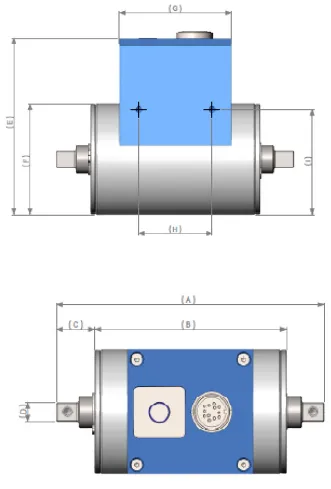

LXT 980 Torque Sensor outline dimensions LXT 980 Torque Sensor outline dimensions LXT 980 Torque Sensor outline dimensions LXT 980 Torque Sensor outline dimensions LXT 980 Torque Sensor outline dimensions

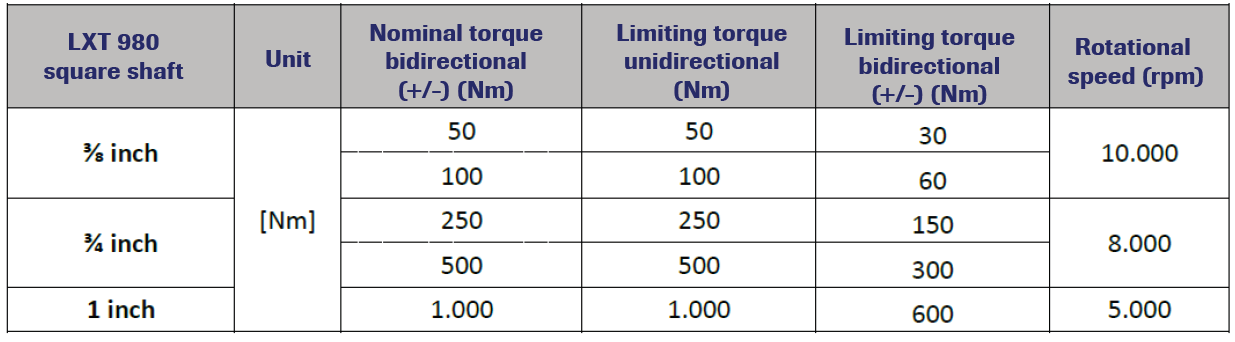

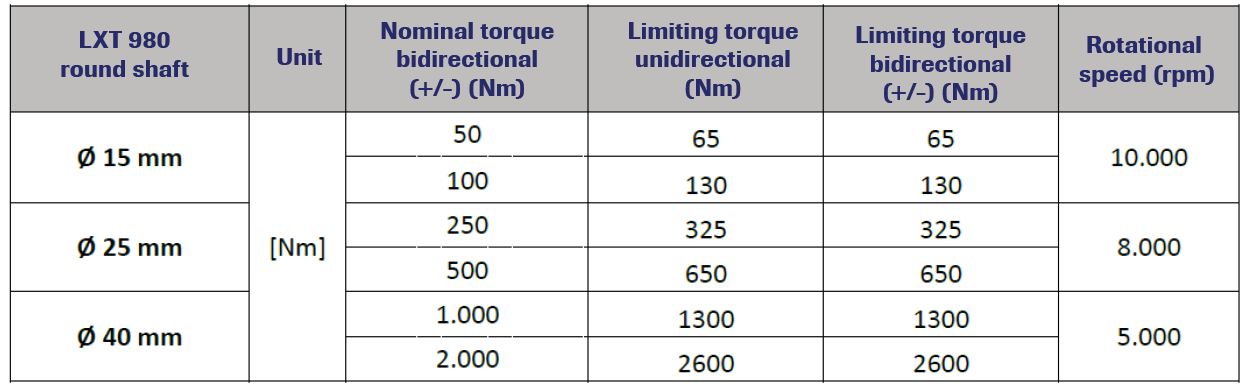

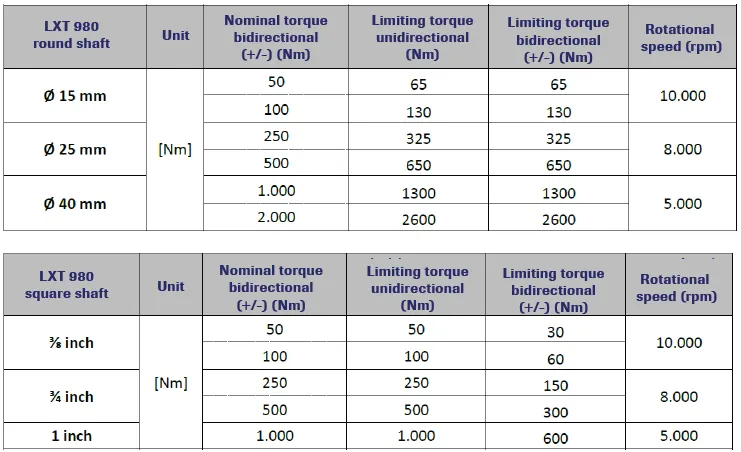

LXT 980 Torque Sensor specification
