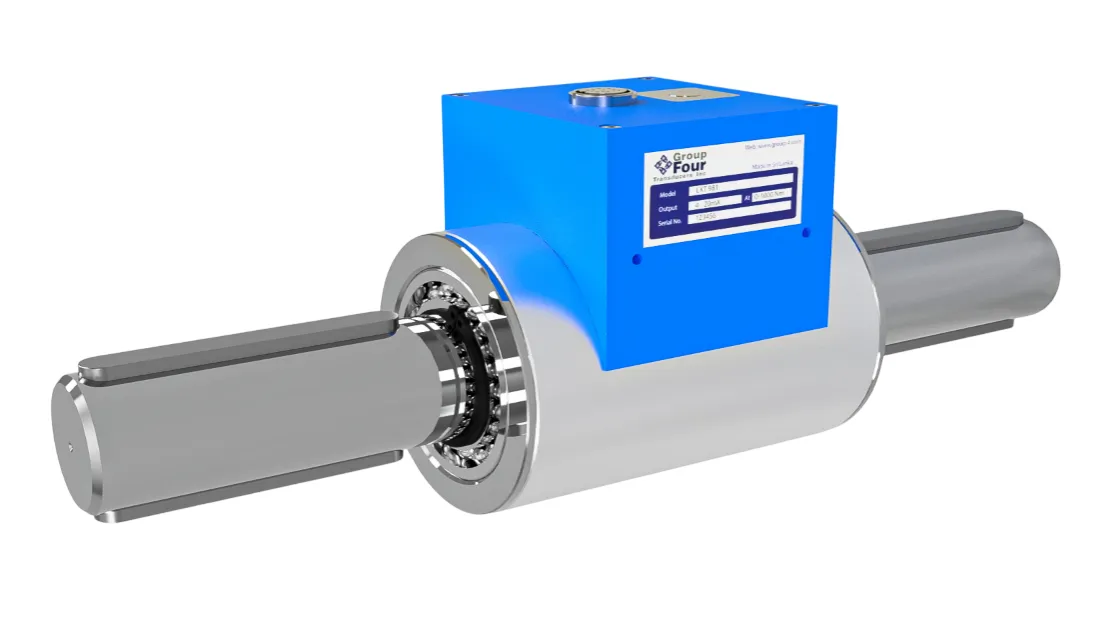

LXT 981 Shaft to Shaft Rotating Torque Load Cell

Capacity: 50 to 1000 Nm

The LXT 981 is a high accuracy, mid range entry into professional torque measurement technology. This sensor is mainly used in automotive testing, motor break testing, starting torque testing, gear box testing and break away torque testing.



Features

  • Best price-performance ratio
  • Integrated electronic (Plug & Play)
  • Contact-less measurement system
  • Including 5m cable and calibration certificate
  • Suitable accessories (Readout unit, couplings)
  • RPM 5, 8, 10
  • IP50

technical data

  • Nominal torque: up to 1.000 Nm, bidirectional
  • Rotational speed: ≤ 10.000 rpm
  • Accuracy: ≤ ±0,1 %
  • Temperature range: -40 °C to +85 °C
  • Protection class: IP50
  • Output signal options: 0-10 V/4-20 mA
  • Cut-off frequency: 2.500 Hz

technical details of LXT 981 Torque sensor

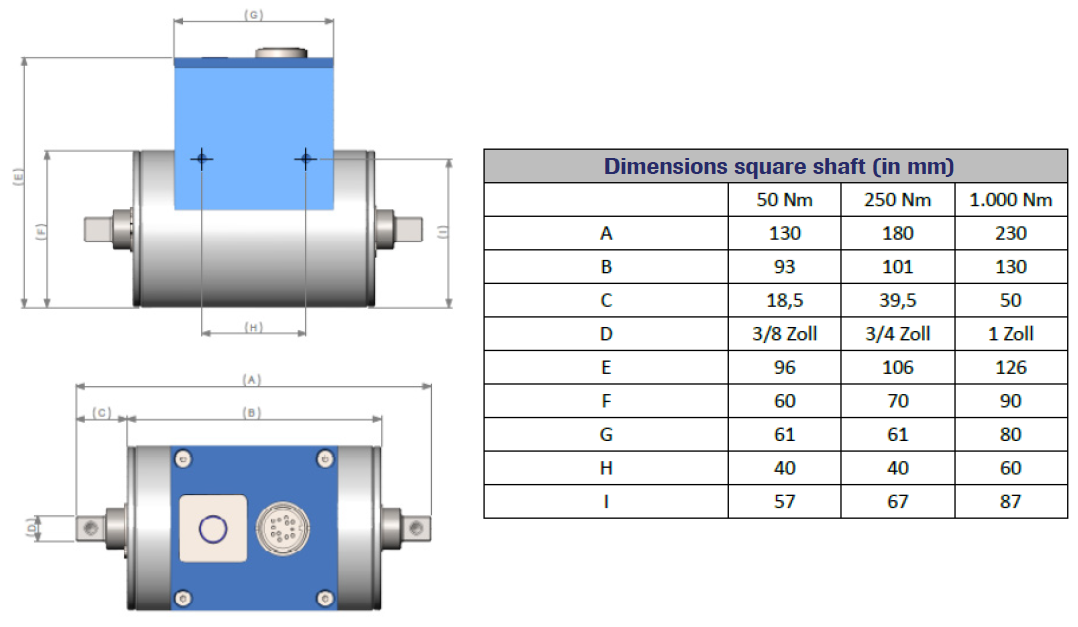

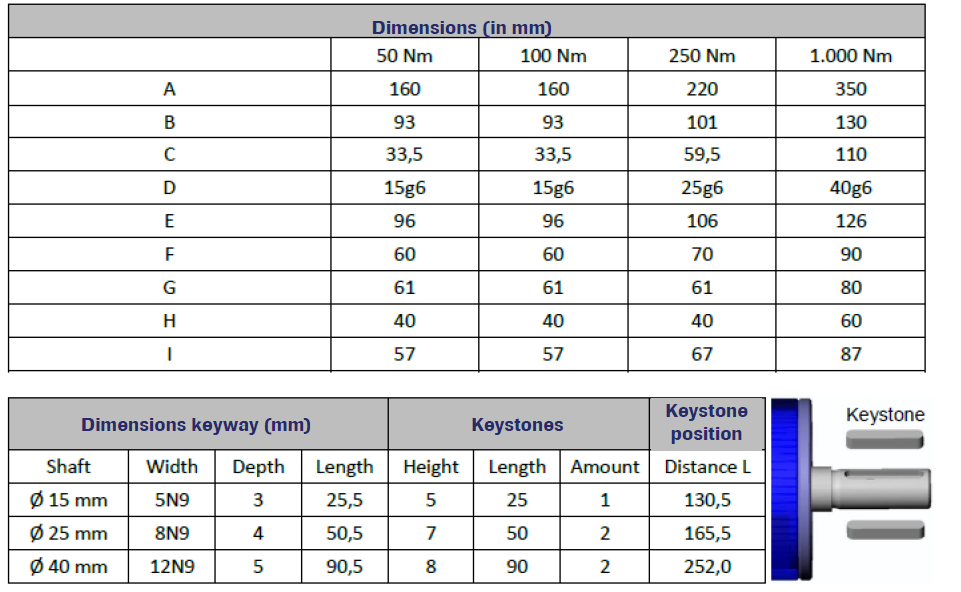

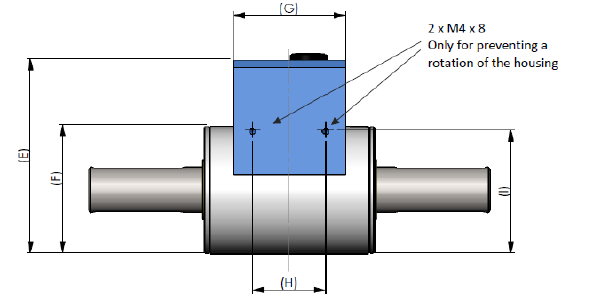

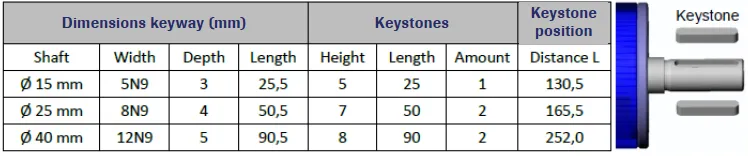

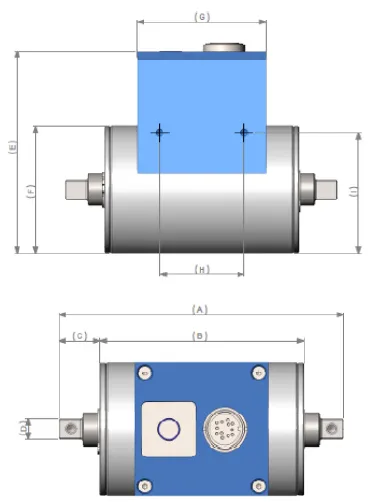

Outline Dimensions

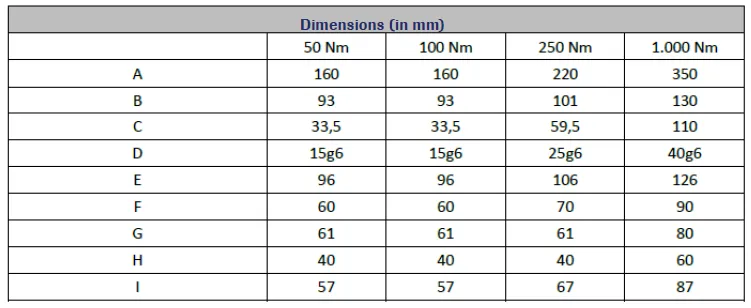

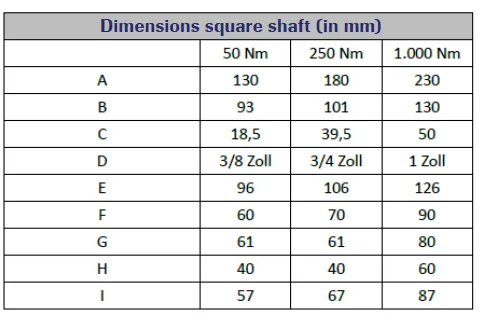

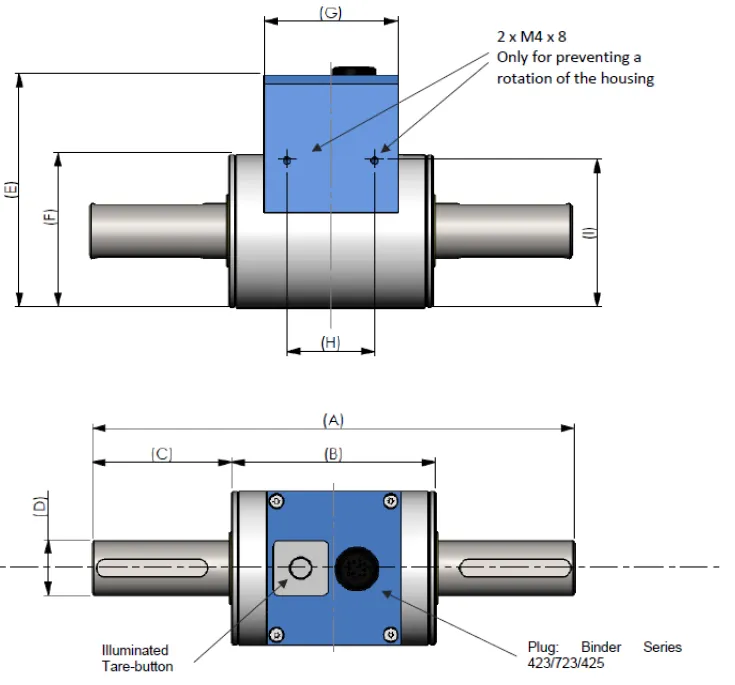

LXT 981 Torque Sensor outline dimensions LXT 981 Torque Sensor outline dimensions LXT 981 Torque Sensor outline dimensions LXT 981 Torque Sensor outline dimensions LXT 981 Torque Sensor outline dimensions

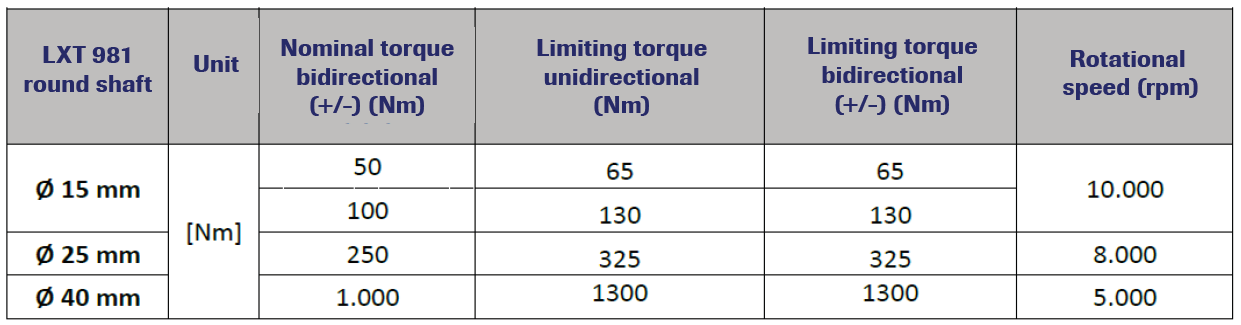

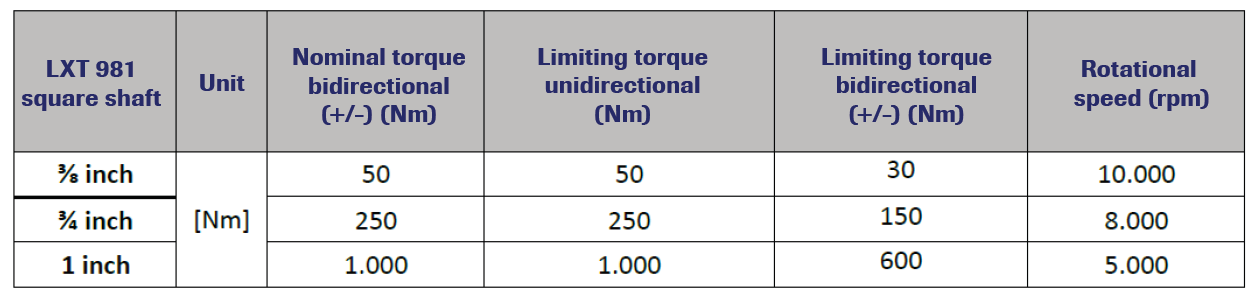

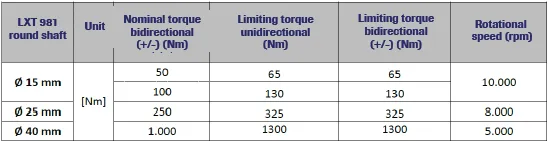

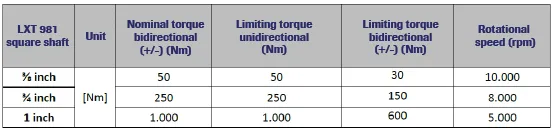

LXT 981 Torque Sensor specification LXT 981 Torque Sensor specification
