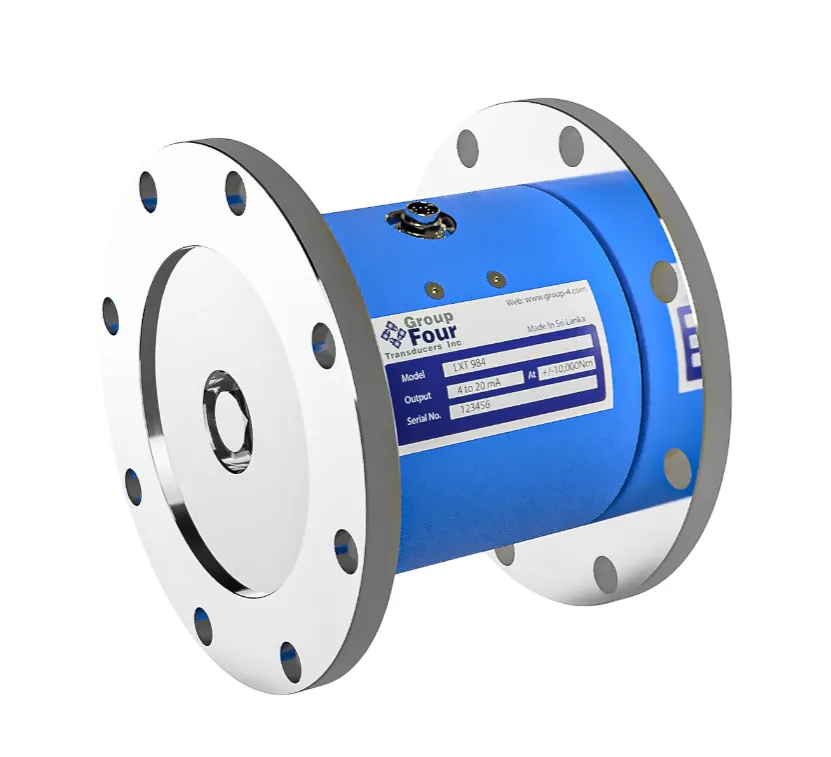

LXT 984 Flange to Flange Rotating Torque Load Cell
The LXT 984 is a special, high capacity, torque transducer designed for use in automotive test facilities, rail test applications, specialty component stress testing and process control.
View or download the datasheet below for full technical specifications and wiring diagrams.
Features
- Best price-performance ratio
- Integrated electronic (Plug & Play)
- Contact-less measurement system
- Including 5m cable and calibration certificate
- RPM 2.500

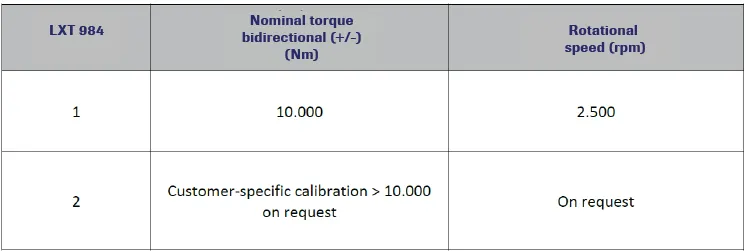

Technical Data
- Nominal torque: up to 10.000 Nm, bidirectional
- Customer-specific calibration (>10.000) upon request
- Rotational speed: ≤ 2.500 rpm
- Accuracy: ≤ ±0,5 %
- Temperature range: -30 °C to +85 °C
- Protection class: IP50, IP65
- Output signal options: 0-10 V/4-20 mA/CAN-Bus/USB
- Cut-off frequency: 2.500 Hz
