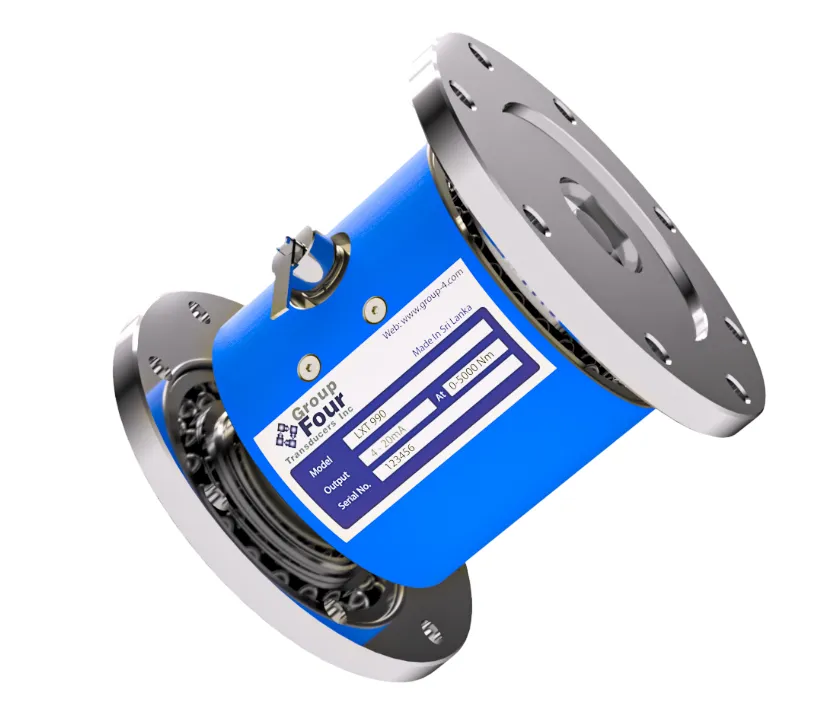

LXT 990 Customizable Flange to Spline Rotating Torque Load Cell
Get info

LXT 990 Customizable Flange to Spline Rotating Torque Load Cell

Capacity: 3000 to 5000 Nm

The LXT 990 is an extremely robust, high capacity torque sensor. It is mainly used test facilities, automotive engineering (agriculture and off-highway), process monitoring and quality control.



Features

  • Best price-performance ratio
  • Integrated electronic (Plug & Play)
  • Contactless measurement system
  • Including 5m cable and calibration certificate
  • Suitable accessories (PTO shafts, PTO bushes,
    Readout unit)
  • RPM 3.600

TECHNICAL DATA

  • Nominal torque: up to 5.000 Nm
  • Rotational speed: ≤ 3.600 rpm
  • Accuracy: ≤ ±0,5 %
  • Temperature range: -40 °C to +85 °C
  • Protection class: IP50, IP65
  • Output signal options: 0-10 V/4-20 mA/CANBus/USB
  • Cut-off frequency: 2.500 Hz

technical details of LXT 990 Torque Sensor

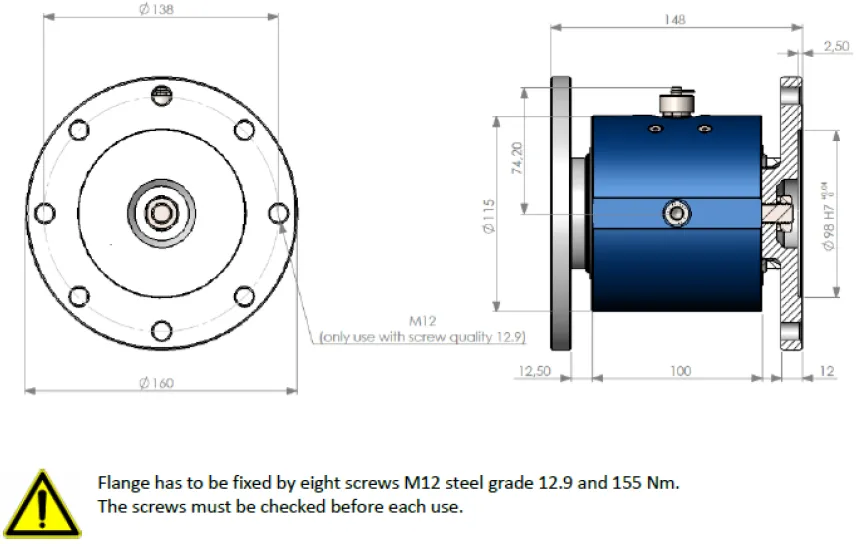

Outline Dimensions

LXT 990 Torque Sensor outline dimensions

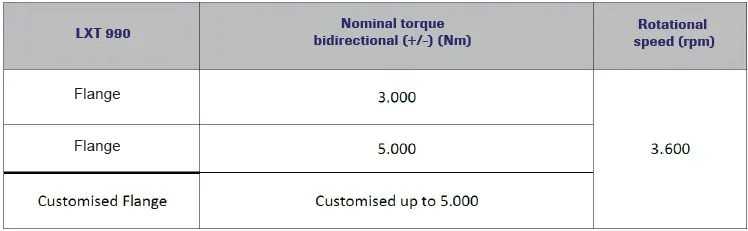

LXT 990 Torque Sensor specification
