M2 – Economical Digital Force Gauge
IMPERIAL
2 – 100 lb (10 – 500 N)
METRIC
The Series 2 Digital Force Gauges are designed for basic tension and compression force testing applications up to 100 lbF (500N). The gauge’s ±0.5% accuracy and 500 Hz sampling rate allows reliable peak tension and compression readings. Current, peak tension or peak compression readings are displayed by a backlit graphic LCD display. The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Calculates peak tension and compression values
- 3 selectable units of measurement
- 500Hz sampling rate
- Ultra-compact size
- Large back lit graphic display with auto-dimming
- Configurable default measurement unit and mode
- Powered by 9V battery or optional AC adapter
- Reversible housing for alternate load cell orientation
Ideal Applications
- Automotive Industry
- Manufacturing
- Assembly
- Quality control

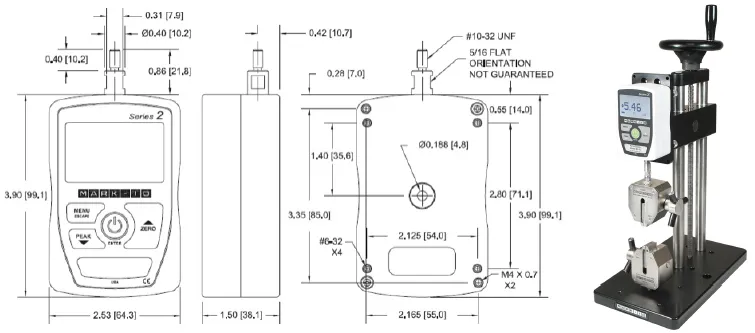

Outline Dimensions

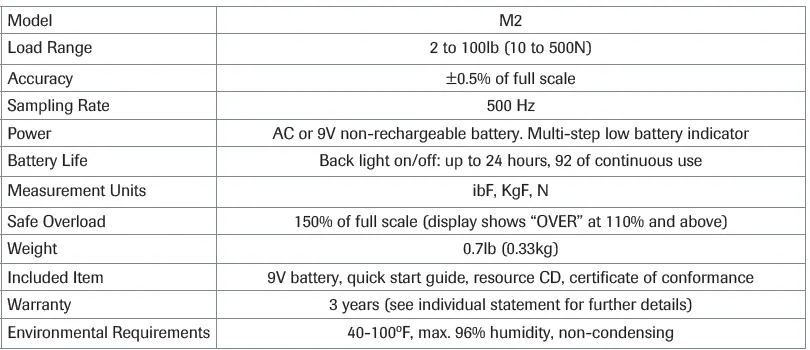

Specifications
| Model | M2 |
|---|---|
| Load Range | 2 to 100lb (10 to 500N) |
| Accuracy | ±0.5% of full scale |
| Sampling Rate | 500 Hz |
| Power | AC or 9V non-rechargeable battery. Multi-step low battery indicator |
| Battery Life | Back light on/off: up to 24 hours, 92 of continuous use |
| Measurement Units | ibF, KgF, N |
| Safe Overload | 150% of full scale (display shows “OVER” at 110% and above) |
| Weight | 0.7lb (0.33kg) |
| Included Item | 9V battery, quick start guide, resource CD, certificate of conformance |
| Warranty | 3 years (see individual statement for further details) |
| Environmental Requirements | 40-100ºF, max. 96% humidity, non-condensing |

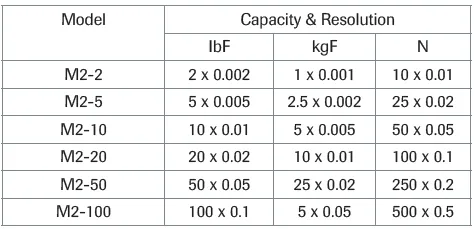

Part Numbers
| Model | Capacity & Resolution | ||
|---|---|---|---|
| IbF | kgF | N | |
| M2-2 | 2 x 0.002 | 1 x 0.001 | 10 x 0.01 |
| M2-5 | 5 x 0.005 | 2.5 x 0.002 | 25 x 0.02 |
| M2-10 | 10 x 0.01 | 5 x 0.005 | 50 x 0.05 |
| M2-20 | 20 x 0.02 | 10 x 0.01 | 100 x 0.1 |
| M2-50 | 50 x 0.05 | 25 x 0.02 | 250 x 0.2 |
| M2-100 | 100 x 0.1 | 5 x 0.05 | 500 x 0.5 |
