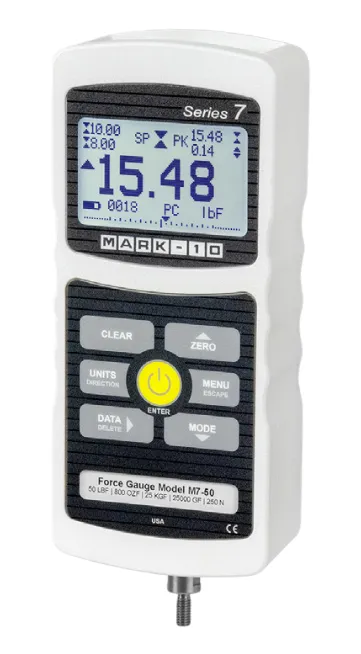

M7-012, Series 7 – Professional Digital Force Gauge
IMPERIAL
0.12 – 500 lb
METRIC
54 g – 227 kg
When fast, continuous data sampling and generous data storage are key to your test situation, the M7 professional digital force gauge is the unit of choice. The M7 gauge can do everything the M5 gauge can do, plus more. Its blazing fast sampling rate of 14,000 Hz and internal memory for 5,000 test readings give it a distinct advantage in rapid, dynamic force testing settings. For demanding compression and tension measurements up to 500 lbf (2,500 N), this gauge boasts an accuracy of ±0.1%.
And it is available in eleven different models to suit the specific load range of your measurements. Compatible with all Group Four test stands, the M7 is a versatile tool in the field and test laboratory. Easy to use and read, the gauge quickly connects to any PC for download of stored data. Operates in peak or averaging mode over five different programmable units of measure. Attach an optional foot switch for hands-free operation, and the M7 is even more valuable in challenging test situations.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- High speed sampling rate (14,000Hz)
- Continuous data capture and storage of up to 5,000 data points
- Data downloadable to a PC
- Automatic output/ data storage/ zeroing after test completion
- External trigger port for remote or foot switch starting and stopping
- Large, easy to read LCD screen
- Five different use programmable units of measure
- Optional foot switch allows hands free triggering
Ideal Applications
- Automotive Industry
- Manufacturing
- Assembly
- Quality control

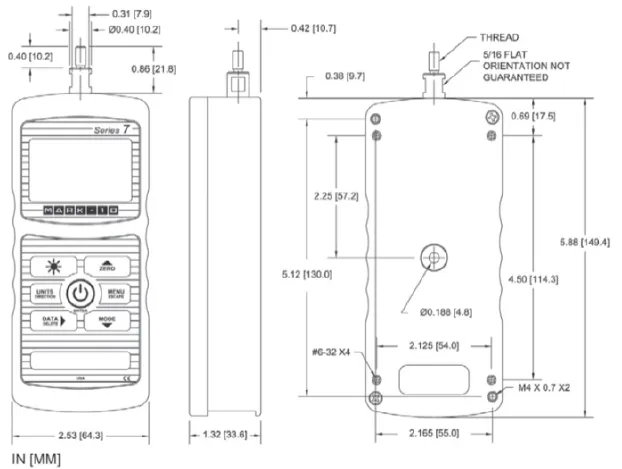

Outline Dimensions
Specifications
| Model | M7 |
|---|---|
| Load Range | Up to 500lbF (2,500N) in eleven different models/range |
| Accuracy | ±0.1% of full scale |
| Sampling Rate | 14,000 Hz (pulse response of 1/7,000 second minimum) |
| Measurement Units | 5 different programmable measurement units |
| Power | AC or rechargeable battery |
| Battery Life | 7-24 hours continuous use (depends on use of back lighting |
| Output | USB/RS-232, Mitutoyo (Digimatic), Analog (±1 VDC, ±0.25% of full scale), 3 gen- eral purpose open drain outputs, 3 open drain set points |
| Safe Overload | 150% of full scale |
| Configurable settings | Many different user programmable settings |
| Weight | 1.0-1.2lb (depending on model) |
| Included Item | Carrying case with chisel, cone, V-groove, hook, flat, extension rod, AC adapter, battery, USB cable, software, certificate of calibration, user manual |
| Warranty | 3 years |

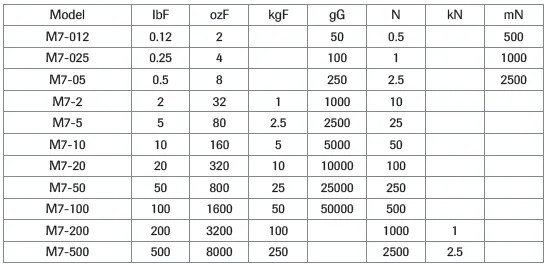

Part Numbers
| Model | IbF | ozF | kgF | gG | N | kN | mN |
|---|---|---|---|---|---|---|---|
| M7-012 | 0.12 | 2 | 50 | 0.5 | 500 | ||
| M7-025 | 0.25 | 4 | 100 | 1 | 1000 | ||
| M7-05 | 0.5 | 8 | 250 | 2.5 | 2500 | ||
| M7-2 | 2 | 32 | 1 | 1000 | 10 | ||
| M7-5 | 5 | 80 | 2.5 | 2500 | 25 | ||
| M7-10 | 10 | 160 | 5 | 5000 | 50 | ||
| M7-20 | 20 | 320 | 10 | 10000 | 100 | ||
| M7-50 | 50 | 800 | 25 | 25000 | 250 | ||
| M7-100 | 100 | 1600 | 50 | 50000 | 500 | ||
| M7-200 | 200 | 3200 | 100 | 1000 | 1 | ||
| M7-500 | 500 | 8000 | 250 | 2500 | 2.5 |
