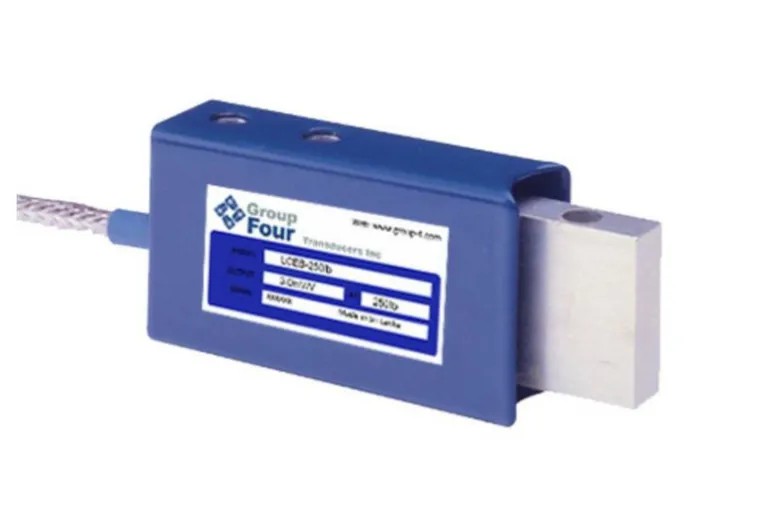

MBB (8004) Aluminum Bending Beam Load Cell
IMPERIAL
5 – 250 lb
METRIC
2.2 – 113.3 kg
The MBB load cell is a small, high precision, aluminum load cell. Ideal for low capacity force and weight measurement. Below you can view or download the datasheet of MBB 8004 Aluminum Bending Beam Load Cell.
View or download the datasheet below for full technical specifications and wiring diagrams.
Features
- Capacities 5-250lb
- Aluminum construction
- Environmental Protection IP67
- Low profile design
MBB 8004 Aluminum Bending Beam Load Cell Applications
- Force measurement
- Weight measurement
- Thrust measurement
- Check weighing
- Scale applications
- OEM applications

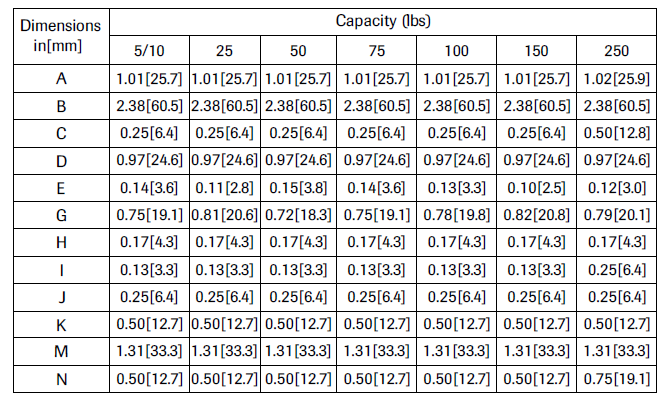

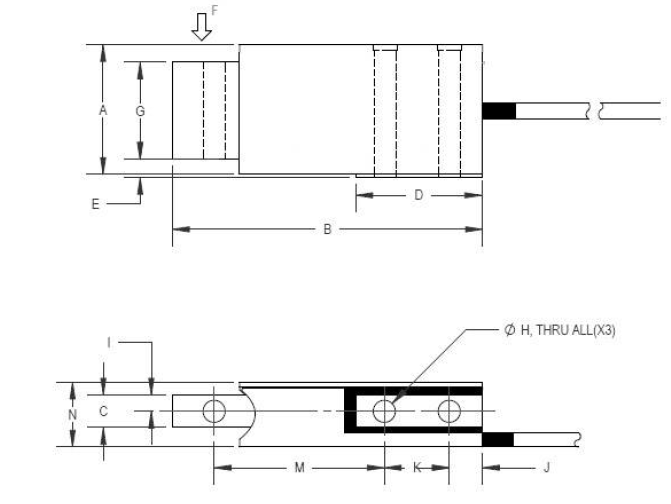

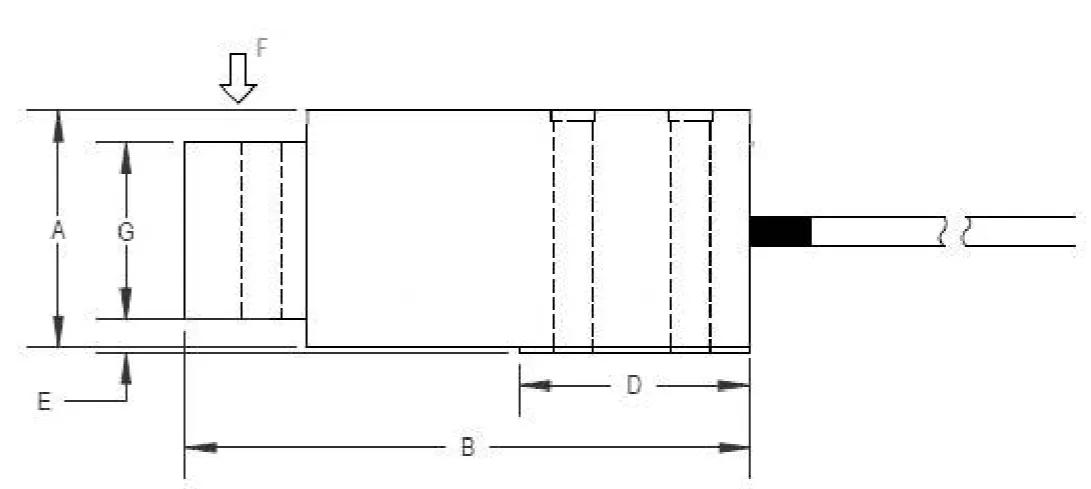

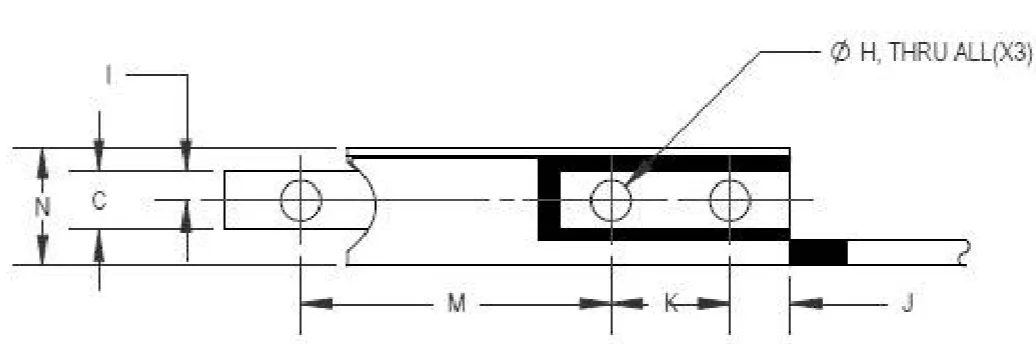

Outline Dimensions
| Dimensions in[mm] | Capacity (lb) | ||||||
|---|---|---|---|---|---|---|---|
| 5 / 10 | 25 | 50 | 75 | 100 | 150 | 250 | |
| A | 1.01[25.7] | 1.01[25.7] | 1.01[25.7] | 1.01[25.7] | 1.01[25.7] | 1.01[25.7] | 1.02[25.9] |
| B | 2.38[60.5] | 2.38[60.5] | 2.38[60.5] | 2.38[60.5] | 2.38[60.5] | 2.38[60.5] | 2.38[60.5] |
| C | 0.25[6.4] | 0.25[6.4] | 0.25[6.4] | 0.25[6.4] | 0.25[6.4] | 0.46[11.7] | 0.46[11.7] |
| D | 0.97[24.6] | 0.97[24.6] | 0.97[24.6] | 0.97[24.6] | 0.97[24.6] | 0.97[24.6] | 0.97[24.6] |
| E | 0.14[3.6] | 0.11[2.8] | 0.15[3.8] | 0.14[3.6] | 0.13[3.3] | 0.10[2.5] | 0.12[3.0] |
| G | 0.75[19.1] | 0.75[19.1] | 0.75[19.1] | 0.75[19.1] | 0.75[19.1] | 0.75[19.1] | 0.79[20.1] |
| H | 0.17[4.3] | 0.17[4.3] | 0.17[4.3] | 0.17[4.3] | 0.17[4.3] | 0.17[4.3] | 0.17[4.3] |
| I | 0.13[3.2] | 0.13[3.2] | 0.13[3.2] | 0.13[3.2] | 0.13[3.2] | 0.23[5.8] | 0.23[5.8] |
| J | 0.25[6.4] | 0.25[6.4] | 0.25[6.4] | 0.25[6.4] | 0.25[6.4] | 0.25[6.4] | 0.25[6.4] |
| K | 0.50[12.7] | 0.50[12.7] | 0.50[12.7] | 0.50[12.7] | 0.50[12.7] | 0.50[12.7] | 0.50[12.7] |
| M | 1.31[33.3] | 1.31[33.3] | 1.31[33.3] | 1.31[33.3] | 1.31[33.3] | 1.31[33.3] | 1.31[33.3] |
| N | 0.58[14.7] | 0.58[14.7] | 0.58[14.7] | 0.58[14.7] | 0.58[14.7] | 0.75[19.1] | 0.75[19.1] |
Wiring
Cable: 28AWG, 4 core, braided shielded PVC gray cable.
Specifications of MBB 8004 Aluminum Bending Beam Load Cell
| Model | MBB | |
|---|---|---|
| Capacities | kg | 5 / 10 / 25 / 50 / 75 / 100 / 150 / 250 |
| Full scale output (FS) | mV/V | 3.0±0.1% |
| Non-linearity | %FS | ≤±0.03 |
| Hysteresis | %FS | ≤±0.02 |
| Non-repeatability | %FS | ≤±0.01 |
| Zero Balance | %FS | ≤±5 |
| Creep @ 20min | %FS | ≤±0.15 |
| Temperature Effect | ||
| Output | %FS/10°C | ≤±0.04 |
| Zero | %FS/10°C | ≤±0.04 |
| Temperature Range | ||
| Compensated | °C | -10… +40 |
| Operating | °C | -20… +65 |
| Temperature resistance | ||
| Input resistance | Ω | 386±30 |
| Output resistance | Ω | 350±5 |
| Excitation voltage | VDC | 5 ~ 15 |
| Insulation resistance @50VDC | MΩ | ≥5000 |
| Safe overload limit | %FS | 150 |
| Ultimate Load | %FS | 250 |
| Cable length | m | 1.5 |
| Element material | Anodized Aluminum | |
| Seal type | 28AWG 4 core braided shielded PVC gray cable | |
| Seal type | IP67 | |
Part Numbers
| Capacity (lb) | G4 Part Number |
|---|---|
| 5 | 8004-001-05 |
| 10 | 8004-002-05 |
| 25 | 8004-003-05 |
| 50 | 8004-004-05 |
| 75 | 8004-007-05 |
| 100 | 8004-005-05 |
| 150 | 8004-008-05 |
| 250 | 8004-006-05 |
MBB 8004 Aluminum Bending Beam Load Cell dimensions and specifications subject to change without notice.
